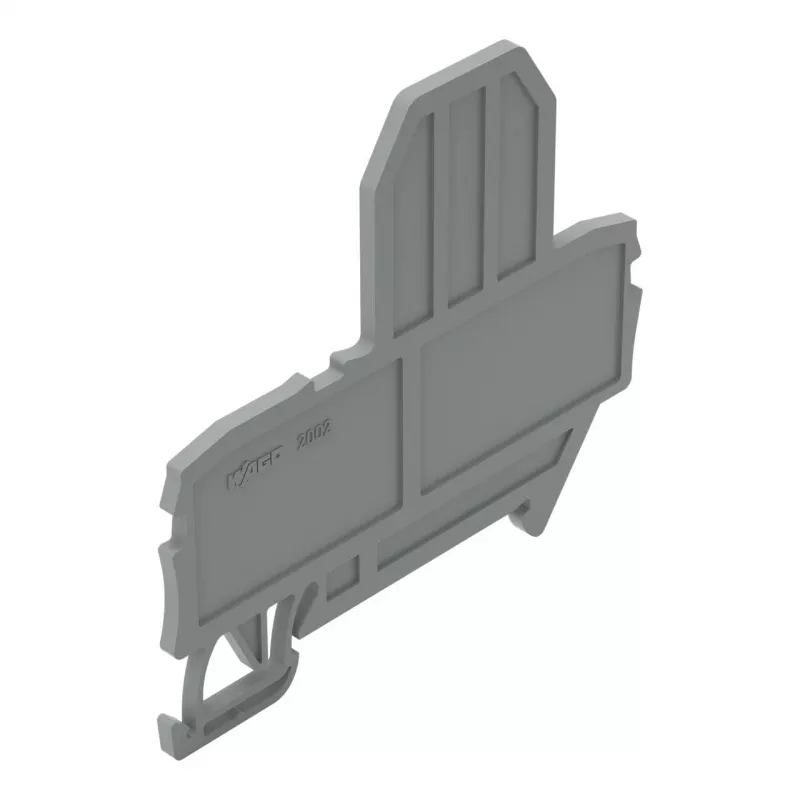

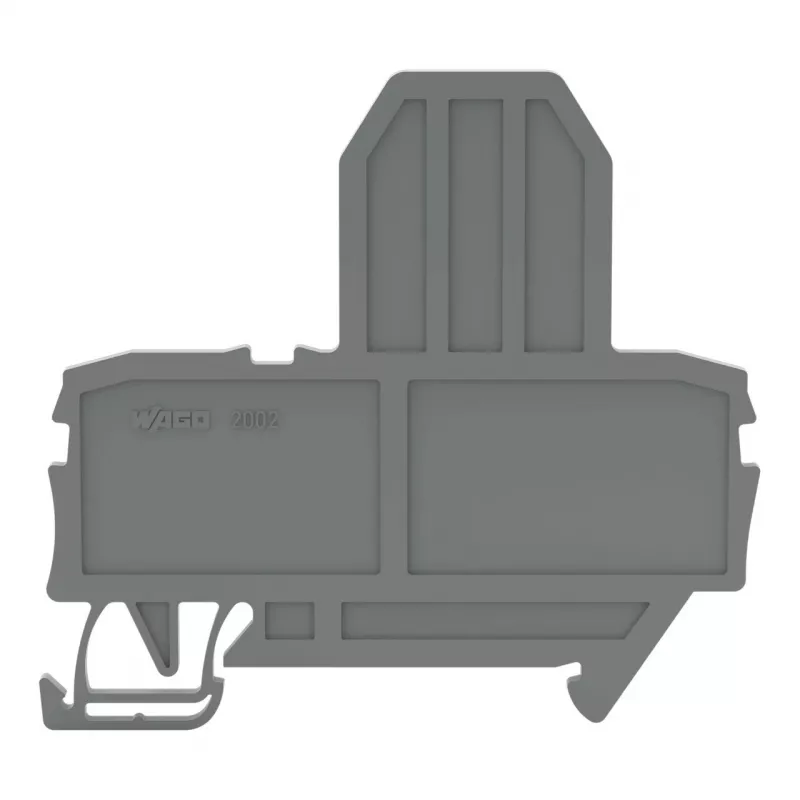

WAGO 2002-991 Placa final, gris, 2 mm, 67 mm, 57,2 mm, TOPJOB S

The WAGO 2002-991 End Plate is a high-quality side insulation component designed for use with WAGO 2002 Series terminal blocks. It provides reliable finishing and insulation for terminal block assemblies, ensuring safe and organized electrical connections. Manufactured from durable polyamide (PA66) with a UL 94 V-0 flammability rating, this end plate offers excellent thermal and mechanical resistance. Its snap-on mounting allows for quick and secure installation without tools.

Advantages

• Reliable side insulation for terminal block assemblies
• Snap-on mounting for easy installation
• High-quality polyamide material with UL 94 V-0 rating
• Wide operating temperature range from -35 to +105 °C
• RoHS compliant and environmentally friendly

Suitable for

• Finishing and insulating WAGO 2002 Series terminal block assemblies
• Industrial control panels and electrical distribution systems
• Building automation and lighting control applications
• Any application requiring secure side insulation of terminal blocks

Key specifications

• Product Type: End Plate
• Series: TOPJOB S
• Compatibility: WAGO 2002 Series Terminal Blocks
• Colour: Grey
• Material: Polyamide (PA66)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 to +105 °C
• Thickness: 2 mm
• Height: 57.2 mm
• Depth: 67 mm
• Mounting Type: Snap-on
• Insulation Type: Side Insulation
• Application: Finishing and insulating terminal block assemblies
• Approvals: UL, CSA, VDE
• Environmental Compliance: RoHS Compliant

Recommendations

For optimal performance and safety, always use WAGO original accessories and terminal blocks. Ensure compatibility with your specific terminal block series before installation.
