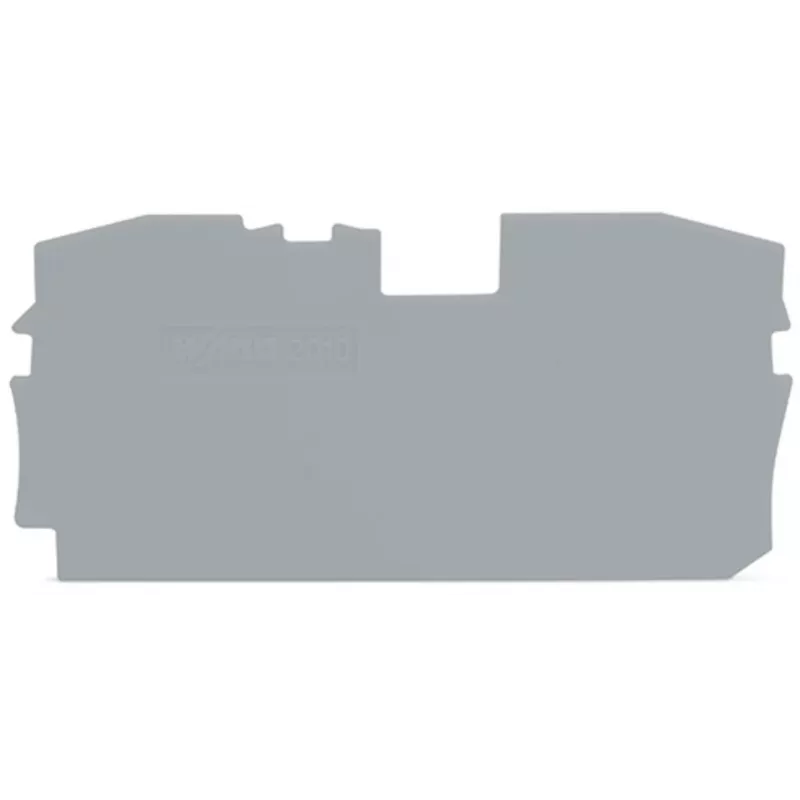

WAGO 2010-1291 placa final e intermedia, gris, 1 mm de grosor, para bornes de la serie 2010

The WAGO 2010-1291 is a high-quality end and intermediate plate designed for use with WAGO 2010 Series terminal blocks. This grey plate provides reliable insulation and separation between terminal blocks, ensuring safe and organized wiring installations. Manufactured from durable Polyamide 66 (PA 66) with a UL94 V-0 flammability rating, it offers excellent thermal and mechanical resistance.

Advantages

• Ensures safe electrical isolation between adjacent terminal blocks
• Snap-on mounting for quick and tool-free installation
• Compact dimensions: 67.2 mm x 33.5 mm x 1 mm
• Lightweight at only 2.36 g
• Compliant with RoHS and REACH directives

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution boards
• Any application requiring WAGO 2010 Series terminal blocks

Key specifications

• Product Type: End and Intermediate Plate
• Series: 2010 Series
• Colour: Grey
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL94 V-0
• Compatibility: WAGO 2010 Series Terminal Blocks
• Mounting Type: Snap-on
• Insulation Voltage (max.): 800 V
• Operating Temperature: -35 °C to 105 °C
• Storage Temperature: -35 °C to 105 °C
• Standards: IEC/EN 60947-7-1
• Thickness: 1 mm
• Dimensions: 67.2 mm x 33.5 mm
• Weight: 2.36 g

Recommendations

For optimal performance, use this end and intermediate plate with genuine WAGO 2010 Series terminal blocks. Ensure proper installation by snapping the plate securely onto the mounting rail. Always follow local electrical codes and regulations.
