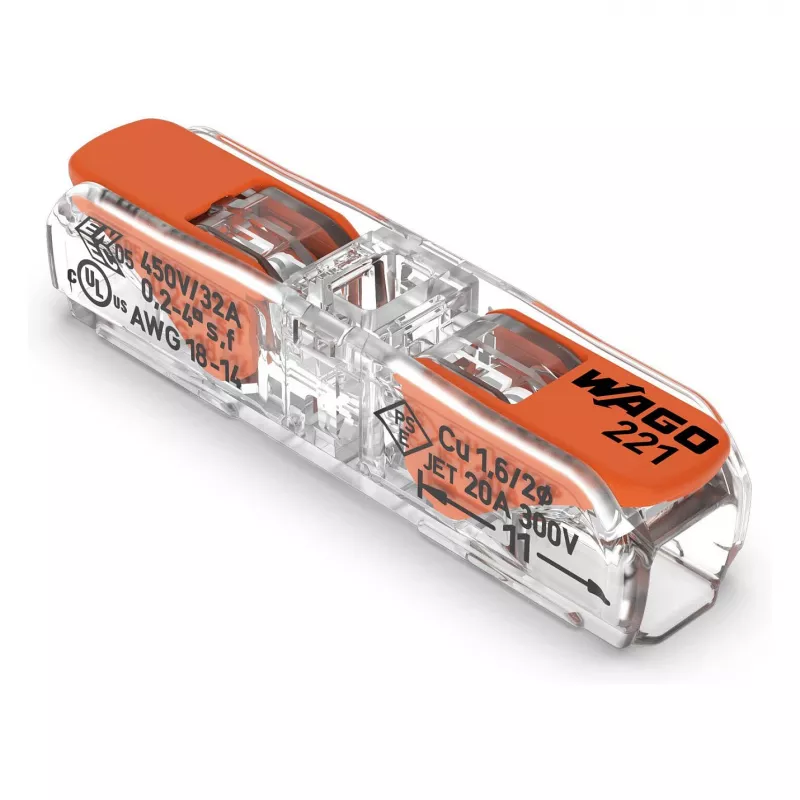

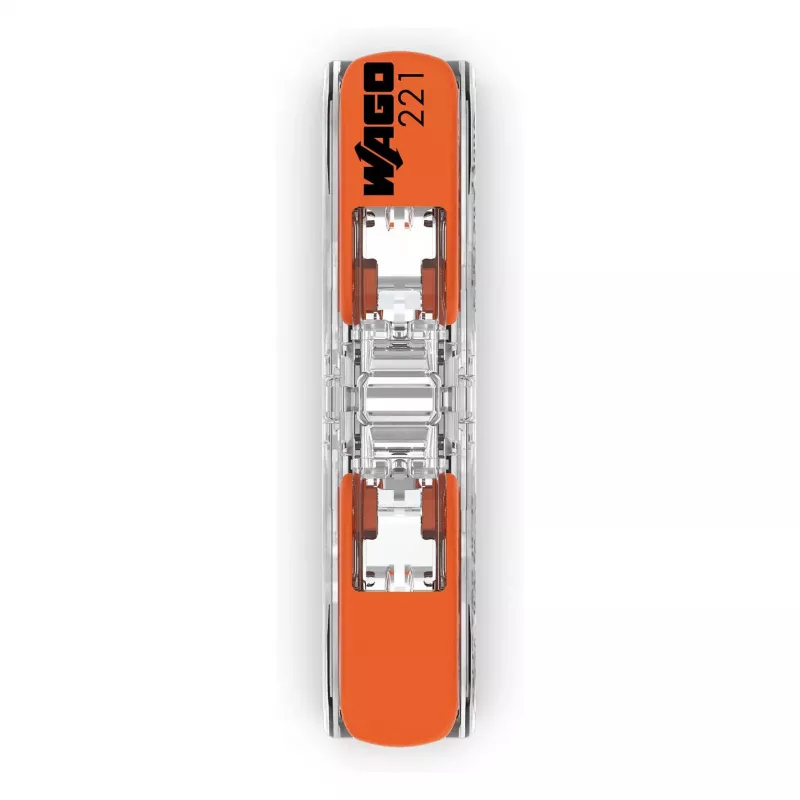

WAGO 221-2411 conector de empalme en línea 2 conductores 4 mm² pack de 60

The WAGO 221-2411 is a high-quality inline splicing connector from the renowned WAGO 221 series, designed for reliable and tool-free connection of solid, stranded, and fine-stranded conductors. This pack contains 60 pieces, making it ideal for professional electricians and DIY enthusiasts who require a large quantity for multiple projects. The transparent housing allows for easy visual inspection of the connection, while the CAGE CLAMP® technology ensures a secure and maintenance-free connection.

Advantages

Tool-free operation with convenient operating levers for quick and easy wiring. The compact design saves space in junction boxes and control cabinets. Suitable for a wide range of conductor sizes from 0.14 mm² to 4 mm² (24 AWG to 12 AWG). Rated for 450 V and 32 A, making it suitable for many industrial and residential applications. The transparent polycarbonate housing provides durability and allows for visual inspection of the conductor insertion.

Suitable for

• Electrical installations in residential and commercial buildings
• Industrial control cabinets and automation systems
• Lighting and power distribution
• Repair and maintenance of electrical circuits
• DIY projects and hobby electronics

Key specifications

• Connector Type: Inline Splicing Connector
• Number of Conductors: 2
• Connection Technology: CAGE CLAMP®
• Max. Conductor Size: 4 mm² (12 AWG)
• Min. Conductor Size: 0.14 mm² (24 AWG)
• Rated Voltage: 450 V
• Rated Current: 32 A
• Stripping Length: 11 mm
• Color: Transparent
• Housing Material: Polycarbonate (PC)
• Flammability Class: UL94 V2
• Operating Temperature: -20 to +85 °C
• Pack Quantity: 60 pieces

Recommendations

For best results, use with WAGO tools and accessories. Always ensure conductors are fully inserted and the lever is closed securely. Suitable for use with solid, stranded, and fine-stranded copper conductors.
