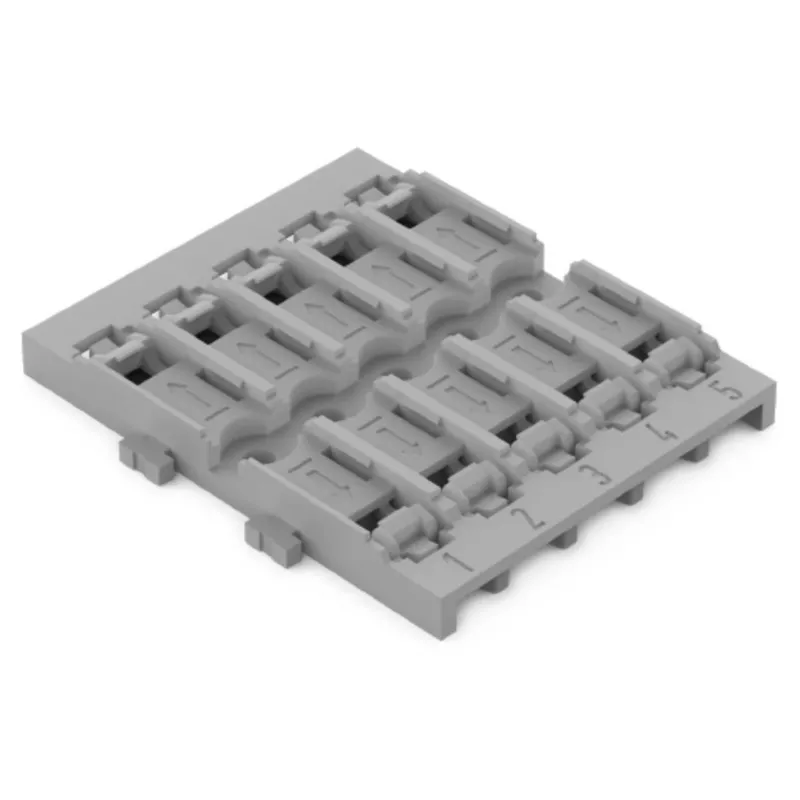

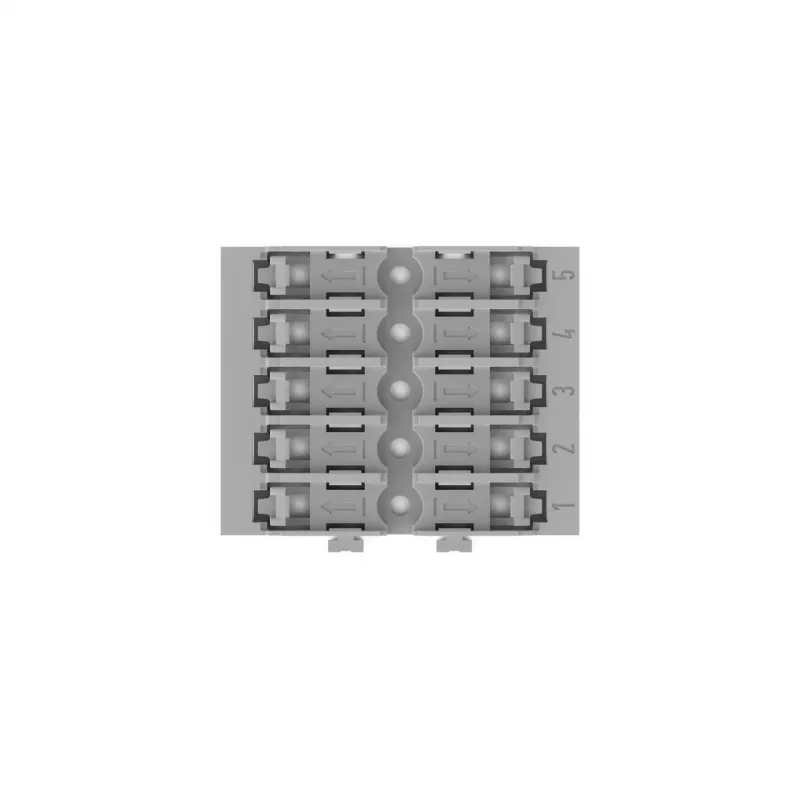

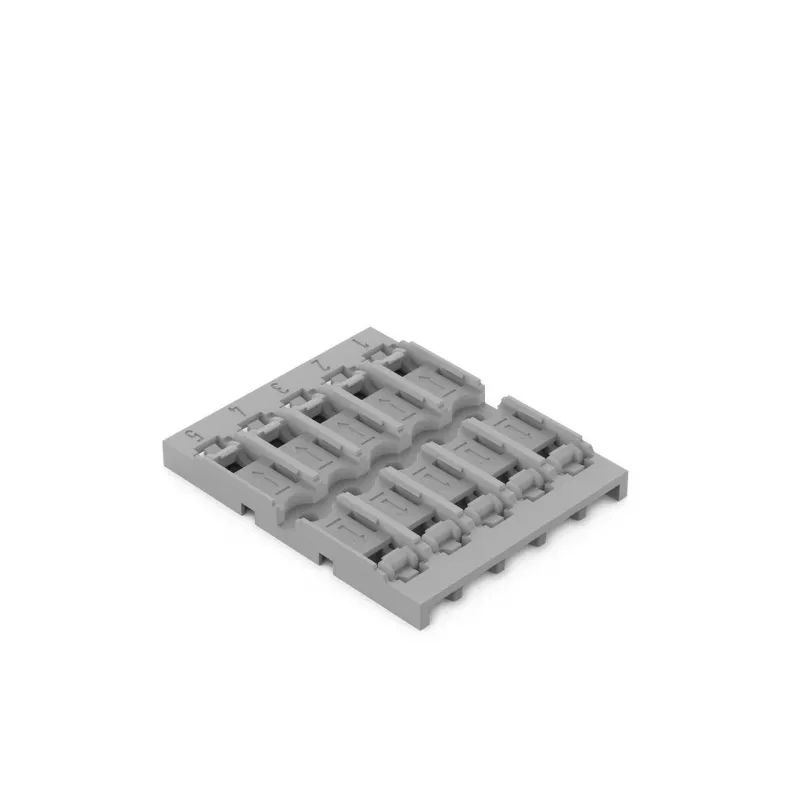

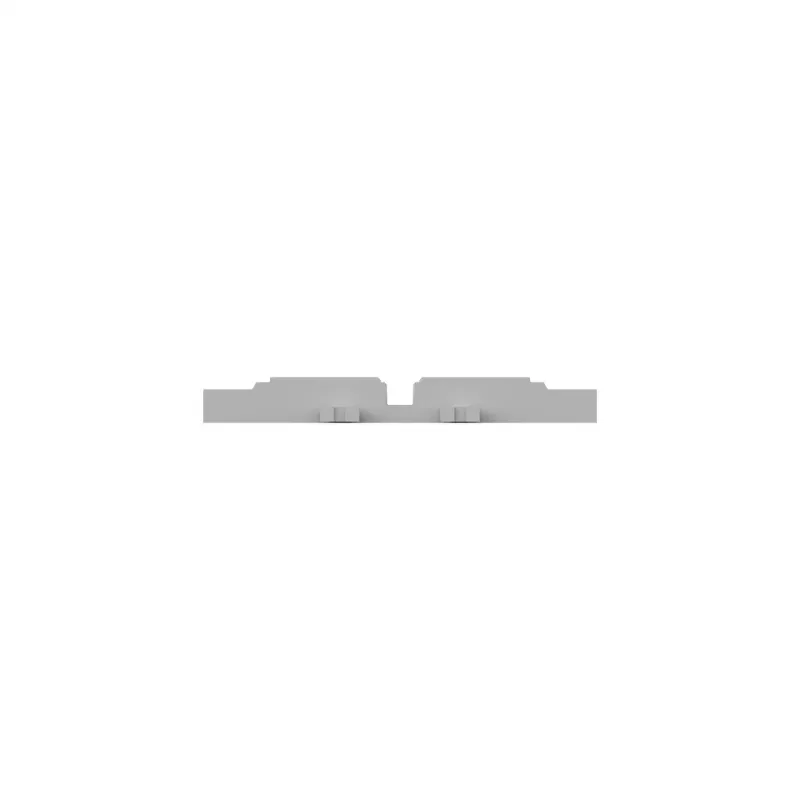

WAGO 221-2525 Adaptador de montaje para bornes de conexión de la serie 221, pack de 5, gris

The WAGO 221-2525 Mounting Adapter is a versatile accessory designed to securely mount WAGO 221 Series Splicing Connectors onto DIN rails or flat surfaces. This pack of 5 adapters provides a reliable and tool-free solution for organizing and fixing connectors in control cabinets, industrial installations, and building wiring. The open-sided design allows easy access for wiring and testing, while the robust polyamide construction ensures durability and long service life.

Advantages

Tool-free snap-in installation for quick connector mounting; compatible with both DIN-rail (EN 60715) and screw mounting; open sides facilitate easy wiring and testing; reusable design allows connectors to be removed and reinserted without damage; compact dimensions save space in crowded enclosures.

Suitable for

• Industrial control cabinets
• Building installation and electrical distribution
• Automation systems
• Lighting and HVAC control panels
• Any application requiring secure mounting of WAGO 221 Series connectors

Key specifications

• Product Type: Mounting Adapter
• Compatible Connector Series: WAGO 221 Series Splicing Connectors
• Number of Connectors Supported per Adapter: 1
• Mounting Method: Screw Mounting (M4 screws, hole diameter 4.3 mm) and DIN-rail Mounting (EN 60715)
• Material: Polyamide (PA)
• Colour: Grey
• Operating Temperature Range: -20 to +85 °C
• Flammability Rating: UL 94 V-2
• Pack Quantity: 5 pieces
• Dimensions per Adapter (L x W x H): 24.5 mm x 10.5 mm x 20.7 mm
• Weight per Adapter: Approx. 2.5 g
• Standards Compliance: RoHS compliant

Recommendations

For optimal performance, use with WAGO 221 Series splicing connectors. Ensure the mounting surface is clean and suitable for the chosen mounting method. The adapter is designed for indoor use within the specified temperature range.
