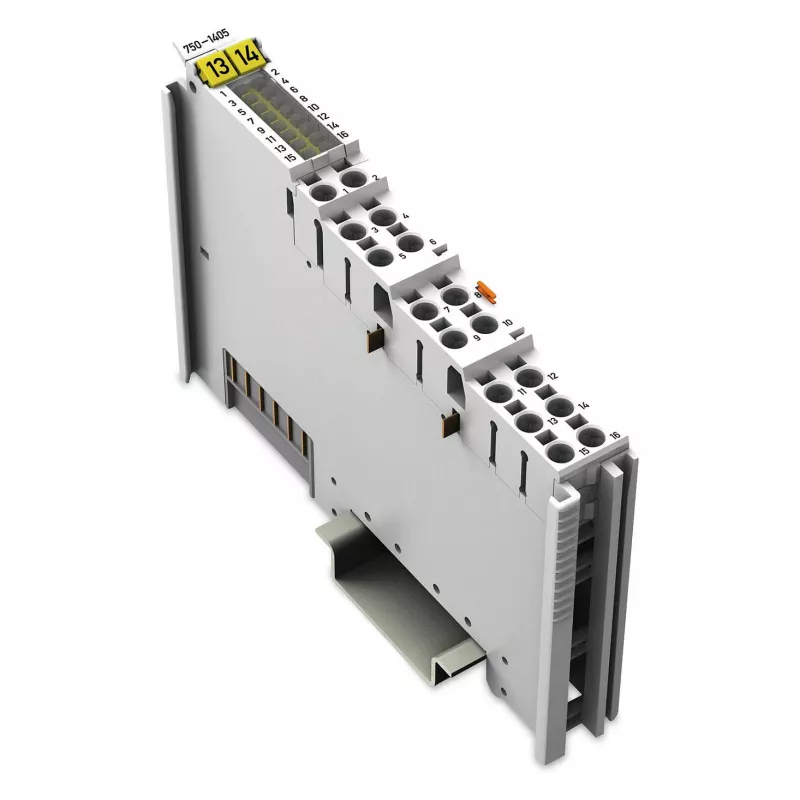

WAGO 750-1405 Módulo de entrada digital de 16 canales, 24 VDC, 12 mm

The WAGO 750-1405 is a 16-channel digital input module with a 24 VDC nominal voltage and a 12 mm width. It is designed for use in industrial control systems.

Key features

• 16-channel digital input module
• 24 VDC nominal voltage
• 12 mm width
• IP20 protection rating
• Operating temperature: 0 - 55 °C
• Maximum operating humidity: 95%

Specifications

• Brand: WAGO
• MPN: 750-1405
• Material: Polycarbonate
• Product colour: Grey
• Material: Polyamide, Polycarbonate (PC)
• Current: 10 A
• International protection code: IP20
• Operating temperature: 0 - 55 °C
• Maximum operating air humidity: 95%
• Width: 12 mm
• Depth: 69 mm
• Height: 100 mm
• Nominal voltage: 24 V
