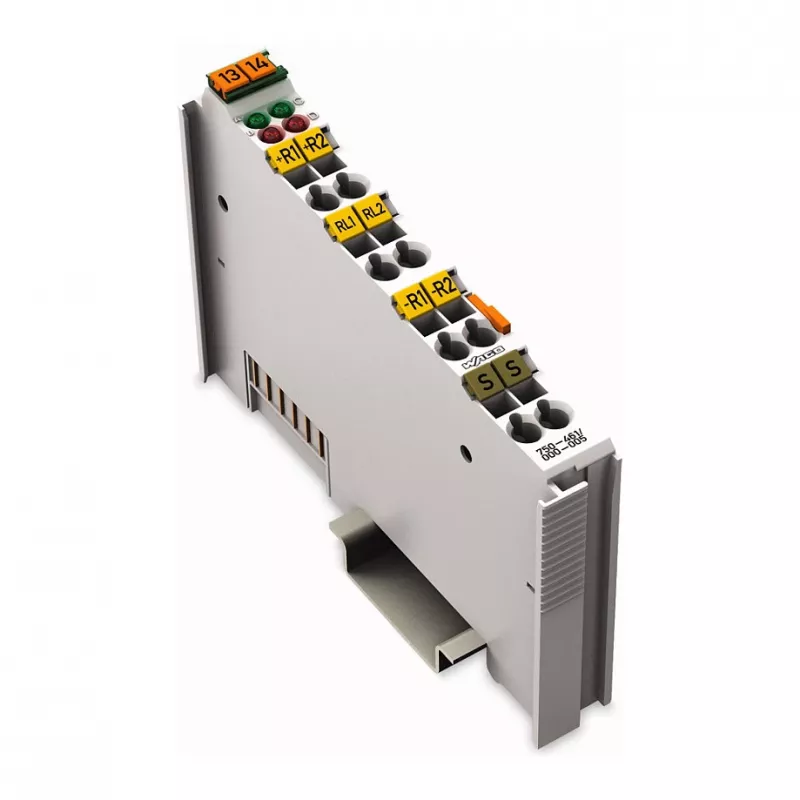

WAGO 750-461/000-005 - 2 canales - 500 V - entrada - 320 ms - 12 x 100 x 69,8 mm - 0 - 95 %

The WAGO 750-461/000-005 is a high-quality 2-channel analog input module designed for resistance temperature detectors (RTDs) and potentiometers. It offers precise measurement with 16-bit resolution and a conversion time of 320 ms, making it ideal for industrial automation and process control applications. The module features electrical isolation of 500 V between system and field, ensuring reliable operation in harsh environments.

Advantages

Supports a wide range of RTD sensor types including Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, KTY81, KTY83, KTY84, and potentiometers (0-1 kΩ, 0-10 kΩ). High resolution (16 bits) for accurate temperature and resistance measurements. Fast conversion time of 320 ms per channel. Robust 500 V system/field isolation for enhanced safety and noise immunity. Compact design (12 x 100 x 69.8 mm) for space-saving DIN-rail mounting. CAGE CLAMP® connection technology ensures secure and maintenance-free wiring.

Suitable for

• Industrial temperature monitoring and control systems
• Process automation in manufacturing plants
• Building automation and HVAC applications
• Laboratory and test equipment requiring precise RTD measurements

Key specifications

• Number of Channels: 2
• Input Type: Resistance Temperature Detector (RTD), Potentiometer
• Supported RTD Sensor Types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, KTY81, KTY83, KTY84
• Potentiometer Measurement Range: 0-1 kΩ, 0-10 kΩ
• Resolution: 16 bits
• Conversion Time: 320 ms
• Isolation Voltage: 500 V (System/Field)
• Supply Voltage: 24 VDC (via system bus)
• Internal Current Consumption: 30 mA
• Connection Technology: CAGE CLAMP®
• Mounting Type: DIN-rail
• Operating Temperature: 0 to 55 °C
• Relative Humidity: 0 to 95% (non-condensing)
• Data Width: 2 x 16-bit input data

Recommendations

For optimal performance, use with WAGO 750 series bus couplers and controllers. Ensure proper grounding and shielding according to installation guidelines.
