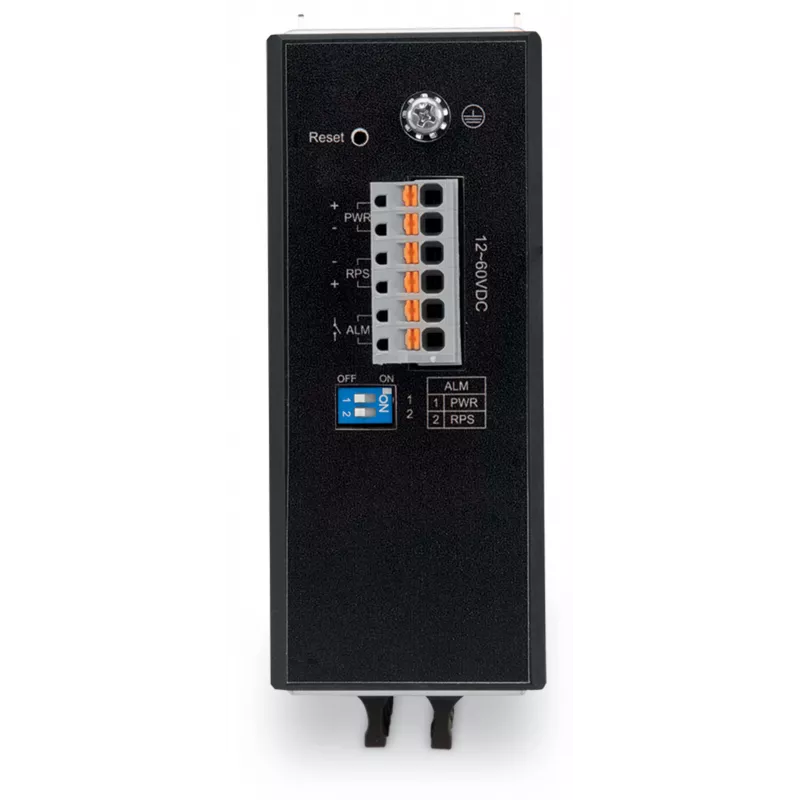

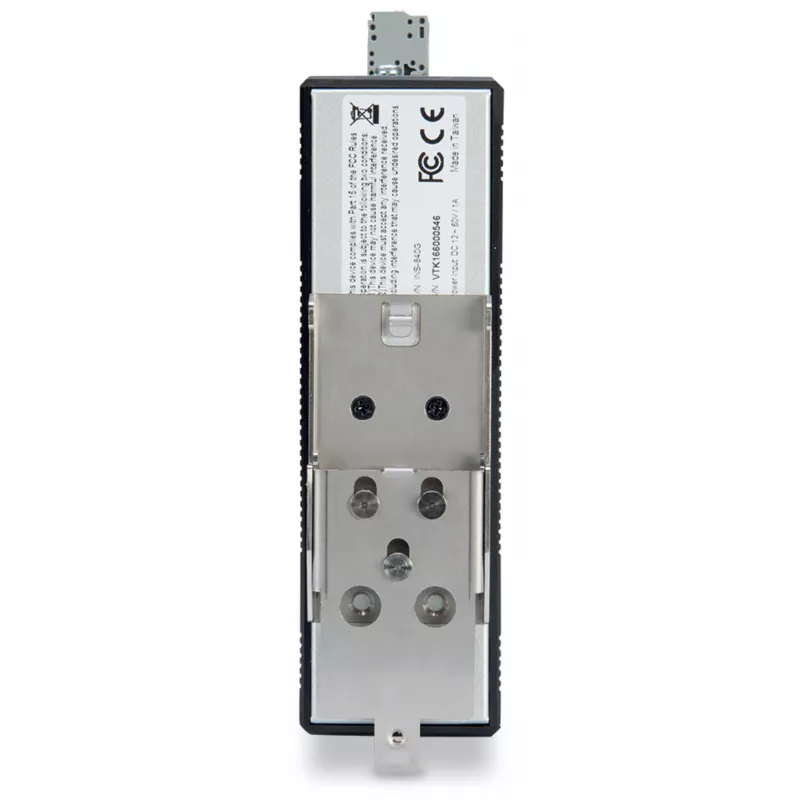

WAGO 852-1106 Switch Ethernet Gigabit industrial no gestionado, 8 puertos, 10/100/1000 Mbps, montaje en carril DIN

The WAGO 852-1106 is a robust industrial unmanaged Ethernet switch designed for reliable data communication in harsh environments. With 8 Gigabit Ethernet ports, it provides high-speed connectivity for automation and control networks. Its compact DIN-rail mount design and wide operating temperature range make it ideal for factory floors, process control, and building automation.

Advantages

Unmanaged plug-and-play operation simplifies installation. Redundant power input (9...48 VDC) ensures high availability. IP30-rated aluminum housing protects against dust and mechanical impact. Supports jumbo frames up to 9 KB for efficient data transfer.

Suitable for

• Industrial Ethernet networks in manufacturing and process industries
• Building automation and energy management systems
• Transportation and infrastructure applications
• Any environment requiring reliable, rugged networking

Key specifications

• 8 x 10/100/1000Base-T (RJ-45) ports with auto-negotiation and auto-MDI/MDI-X
• Backplane bandwidth: 16 Gbps
• MAC address table: 8K entries
• Power supply: 9...48 VDC redundant input, max. 3.5 W
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C
• Humidity: 5...95% non-condensing
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Certifications: CE, UL 61010-2-201, DNV GL
• MTBF: 1,000,000 hours

Recommendations

For optimal performance, use shielded CAT6a or higher cabling in industrial environments. Ensure power supply is within specified range. The switch is maintenance-free; no configuration required.
