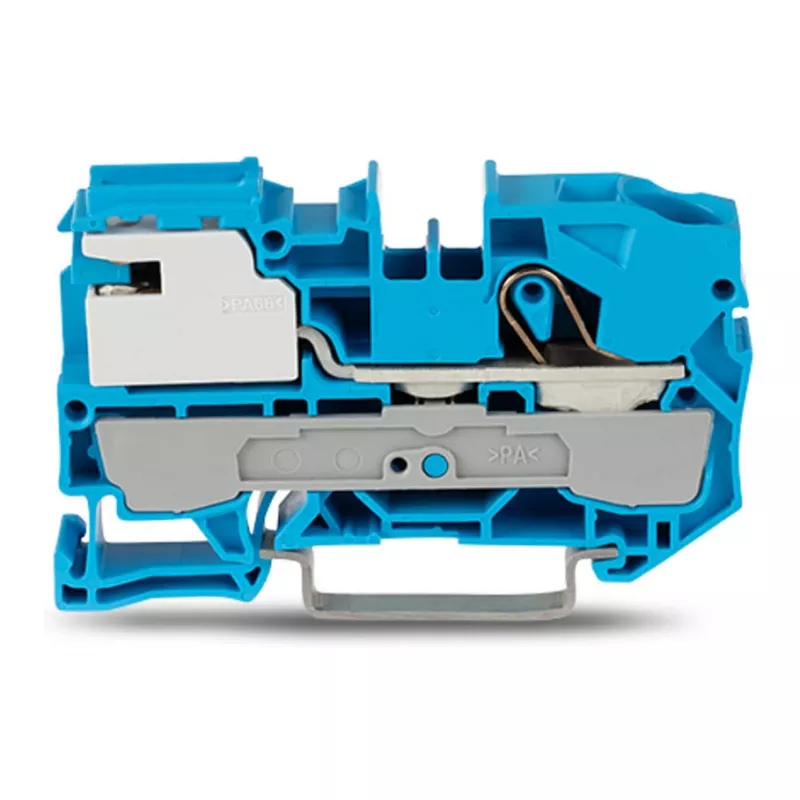

WAGO Borne de seccionamiento de neutro 10 mm² 1 conductor azul

The WAGO 2010-7114 Neutral Disconnect Terminal is a high-quality push-in terminal block designed for secure and efficient electrical connections. With a nominal cross-section of 10 mm² and a knife disconnect feature, it is ideal for neutral conductor disconnection in industrial and commercial applications. The blue color coding ensures easy identification in control cabinets.

Advantages

Tool-free Push-in CAGE CLAMP® connection saves installation time. The knife disconnect allows safe isolation of circuits without removing wires. Compact design saves space on DIN-rail 35 mm. Rated voltage up to 800 V and current up to 57 A ensure reliable performance.

Suitable for

• Neutral conductor disconnection in distribution boards
• Industrial control systems
• Building automation
• Machine wiring

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Nominal Cross Section: 10 mm² (AWG 8)
• Connectable Conductor Size (Solid): 0.5 - 16 mm² (AWG 20 - 6)
• Connectable Conductor Size (Stranded): 0.5 - 10 mm² (AWG 20 - 8)
• Number of Connection Points: 2
• Number of Potentials: 1
• Rated Voltage (EN): 800 V
• Rated Current (EN): 57 A
• Insulation Material: Polyamide (PA 66)
• Color: Blue
• Mounting Type: DIN-rail 35 mm
• Stripping Length: 25 - 27 mm
• Wiring Type: Side-entry wiring
• Disconnect Type: Knife disconnect
• Pollution Degree: 3
• Operating Temperature: -35 to +85 °C
• Approvals: VDE, UL, CSA, EAC, KEMA/KEUR, RINA, GL, LR, BV, DNV

Recommendations

For optimal performance, use with WAGO ferrule sets and marking strips. Ensure proper stripping length for secure connections.
