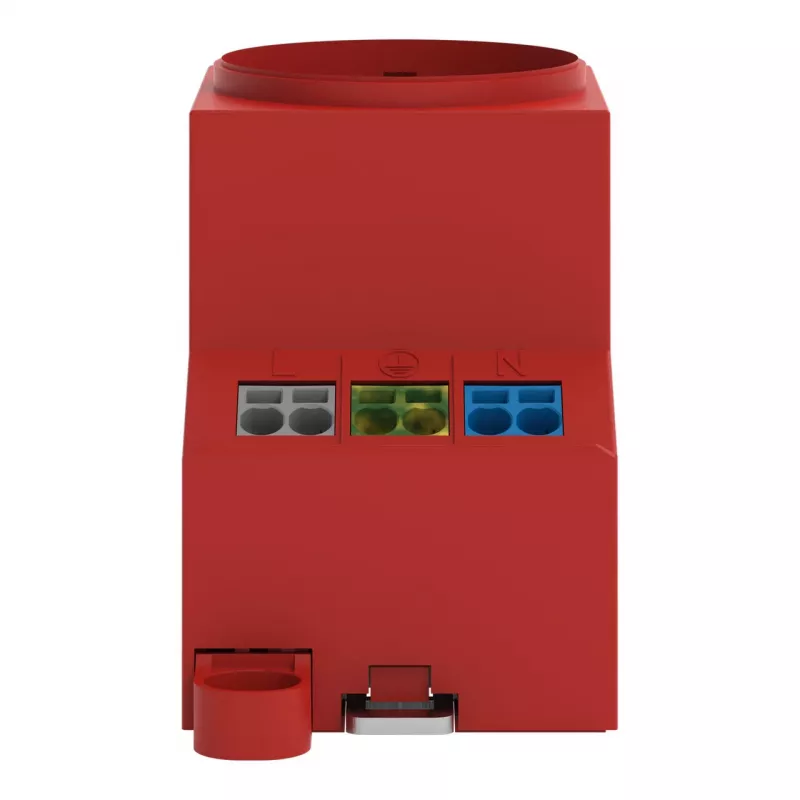

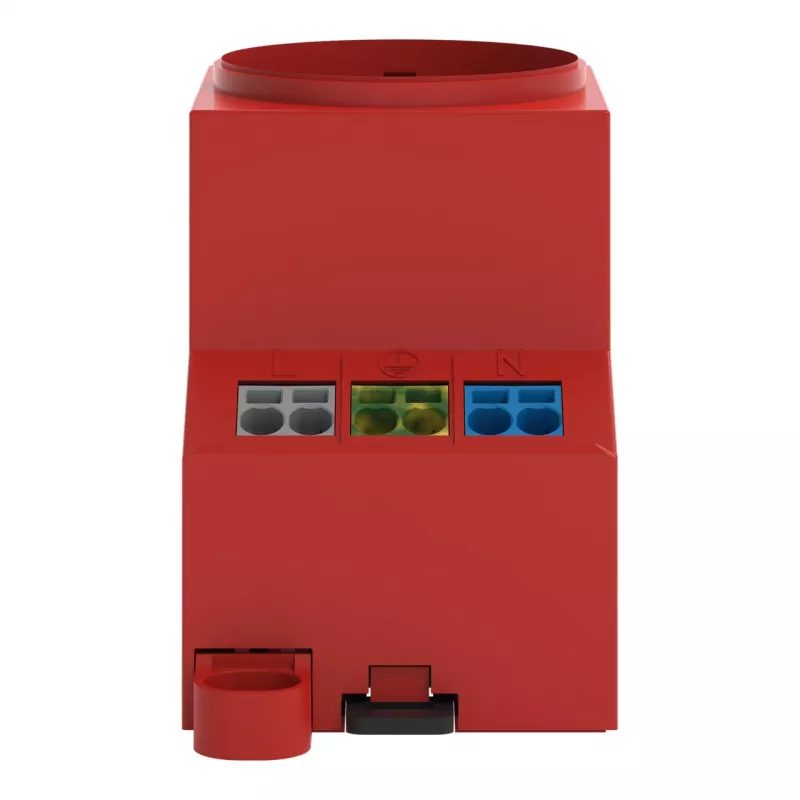

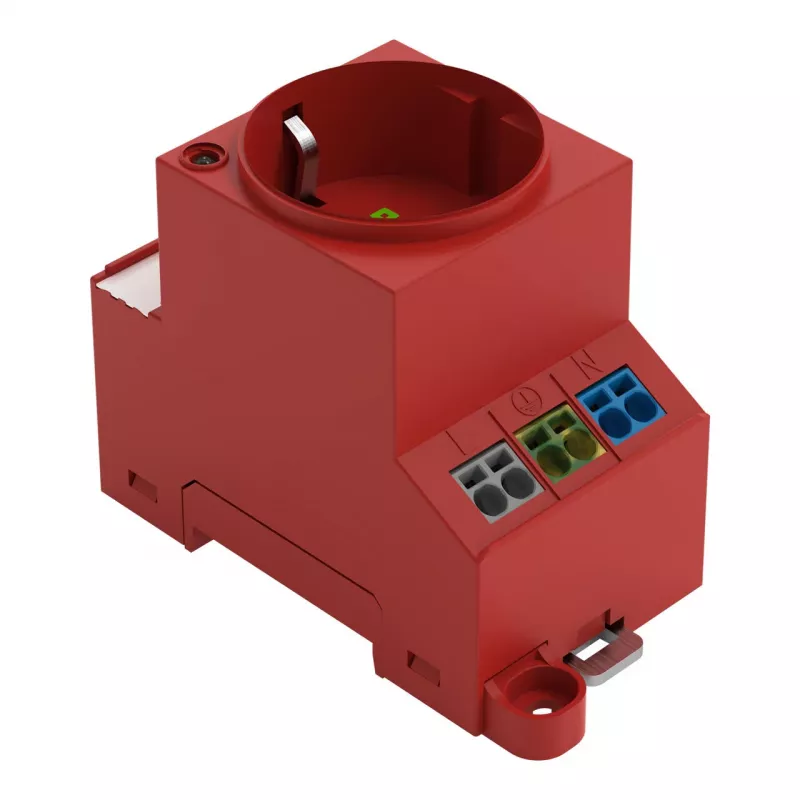

WAGO Toma de corriente para armario eléctrico 709-583 Rojo 1 ud.

The WAGO 709-583 is a high-quality control cabinet socket outlet module designed for reliable power distribution in industrial and commercial electrical installations. This Schuko (Type F) socket provides a rated voltage of 250 V AC and a rated current of 16 A, making it suitable for a wide range of applications. The module features WAGO's innovative Push-in CAGE CLAMP® connection technology for fast and tool-free wiring of solid and fine-stranded conductors from 0.5 to 2.5 mm². Its compact design allows for easy DIN rail mounting (TS 35), saving valuable space in control cabinets. The red housing made of polyamide (PA 6.6) ensures high durability and clear identification. With protection class IP20 on the front and IP00 on the rear, it offers basic protection against solid foreign objects. The module is VDE approved, guaranteeing safety and compliance with international standards.

Advantages

Tool-free Push-in CAGE CLAMP® connection reduces installation time and ensures secure, maintenance-free connections. The compact DIN rail mount design optimizes space utilization in control cabinets. The red color provides easy visual identification for safety or specific circuit designation. VDE approval ensures high quality and reliability.

Suitable for

• Industrial control cabinets
• Building automation systems
• Distribution boards
• Machine and plant engineering
• Commercial electrical installations requiring a single Schuko outlet

Key specifications

• Product Type: Service Outlet Module
• Socket Type: Schuko (Type F)
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Number of Outlets: 1
• Connection Technology: Push-in CAGE CLAMP®
• Mounting Type: DIN Rail (TS 35)
• Conductor Size (Solid): 0.5 ... 2.5 mm²
• Conductor Size (Fine-Stranded): 0.5 ... 2.5 mm²
• Housing Material: Polyamide (PA 6.6)
• Color: Red
• Protection Class (Front): IP20
• Protection Class (Rear): IP00
• Operating Temperature: -20 ... +50 °C
• Storage Temperature: -20 ... +70 °C
• Approvals: VDE

Recommendations

For optimal performance, use with WAGO compatible conductors and ensure proper DIN rail grounding. This module is ideal for applications requiring a single, reliable power outlet within a control cabinet.
