WAGO TOPJOB S borne de conductor de protección de 2 conductores 2007-8807

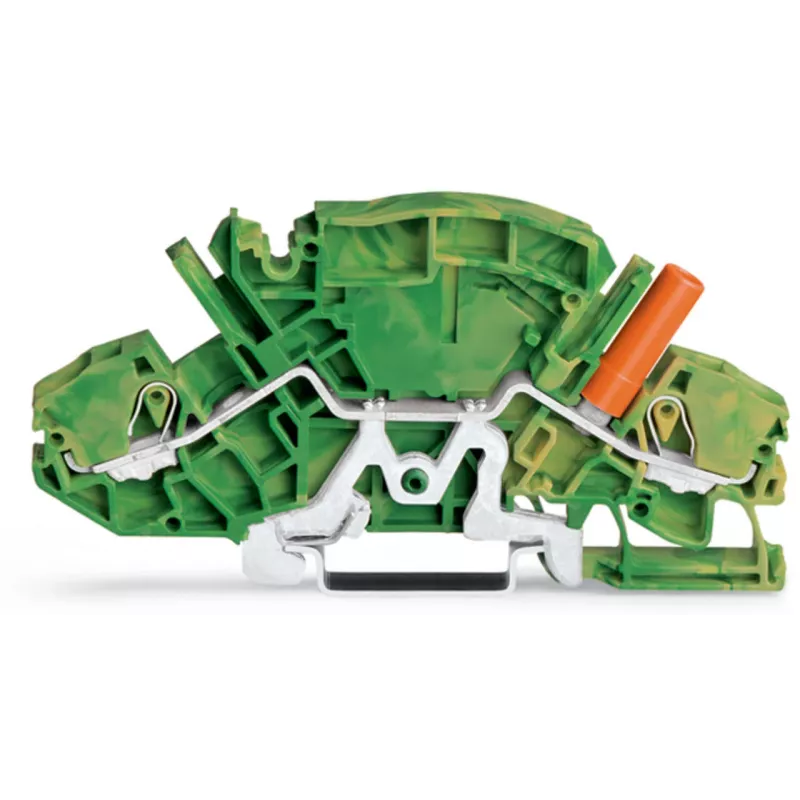

The WAGO TOPJOB S 2-Conductor Protective Conductor Terminal Block (2007-8807) is a high-quality, push-in type terminal block designed for secure and reliable grounding connections. Part of the renowned TOPJOB S series, it features the innovative CAGE CLAMP® connection technology for fast, tool-free wiring. Ideal for industrial and building installations, this terminal block ensures safe and efficient protective conductor connections.

Advantages

Push-in actuation allows for quick and easy wiring without special tools. The CAGE CLAMP® connection provides a vibration-proof, gas-tight, and maintenance-free connection. The green-yellow color clearly identifies it as a protective conductor terminal. Rated for up to 690 V and 32 A, it handles demanding applications. The compact design saves space on DIN-rail 35.

Suitable for

• Protective conductor (PE) connections in electrical panels
• Industrial control cabinets
• Building automation systems
• Lighting and power distribution

Key specifications

• Series: TOPJOB S
• Terminal Type: Protective Conductor Terminal Block
• Number of Conductors: 2
• Connection Technology: CAGE CLAMP®
• Actuation Type: Push-in
• Nominal Cross-Section: 4 mm²
• Solid Conductor Size: 0.25 - 6 mm² (22 - 10 AWG)
• Stranded Conductor Size: 0.25 - 6 mm² (22 - 10 AWG)
• Fine-Stranded Conductor Size: 0.25 - 4 mm² (22 - 12 AWG)
• Stripped Length: 11 - 13 mm
• Mounting Type: DIN-rail 35
• Color: Green-Yellow
• Rated Voltage (II/2): 690 V
• Rated Impulse Voltage: 8 kV
• Rated Current: 32 A
• Insulation Material: Polyamide 66 (PA 66)
• Pollution Degree: 3
• Operating Temperature: -35 to +85 °C

Recommendations

For optimal performance, use with WAGO ferrule-less conductors or ferrules as per specifications. Ensure proper stripping length and insertion force. This terminal block is part of a comprehensive range of TOPJOB S products for modular installation.
