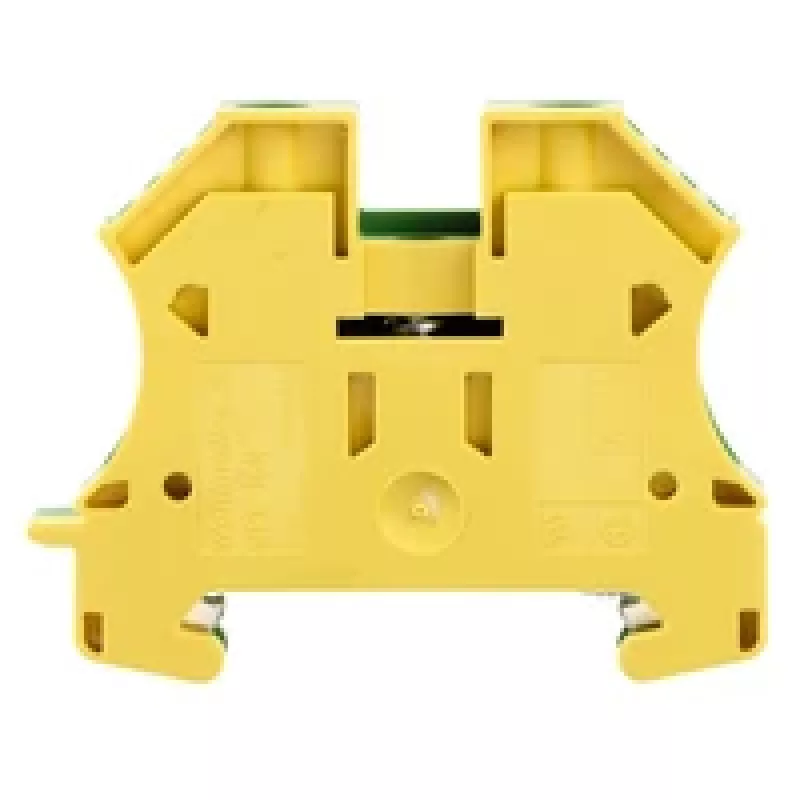

Weidmüller 1019100000 - verde/amarillo - 16 mm² - 56 mm - 33,98 g - 50 uds.

The Weidmüller 1019100000 is a high-quality protective earth (PE) terminal block designed for reliable grounding in industrial electrical installations. With a green/yellow color coding, it ensures clear identification of earth connections. This terminal block features a screw connection technology and accepts conductors from 6 to 35 mm², making it versatile for various wiring needs. It is mounted on DIN Rail TS 35 and comes in a pack of 50 pieces, ideal for large-scale projects.

Advantages

This PE terminal block offers robust construction with a Wemid insulation material that provides excellent thermal and mechanical resistance. It operates in a wide temperature range from -50 °C to +120 °C and has a flammability rating of UL94 V-0, ensuring safety in demanding environments. The screw connection ensures secure and maintenance-free wiring, while the compact design saves space on the DIN rail.

Suitable for

• Industrial control panels
• Power distribution systems
• Machine building
• Electrical installations requiring protective earth connections

Key specifications

• Terminal Type: Protective Earth (PE)
• Connection Technology: Screw Connection
• Conductor Cross-section (Solid/Stranded): 6 - 35 mm²
• Conductor Cross-section (Flexible with ferrule): 6 - 35 mm²
• Mounting Type: DIN Rail TS 35
• Number of Connections: 2
• Number of Potentials: 1 (Earth)
• Color: Green/Yellow
• Insulation Material: Wemid
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Flammability Rating (UL94): V-0
• Tightening Torque: 2.5 - 4 Nm
• Stripping Length: 20 mm
• Standards/Approvals: IEC 60947-7-2, UL, CSA, ATEX
• Number of Levels: 1
• Rated Impulse Withstand Voltage: 8 kV
• Rated Insulation Voltage: 1000 V
• Quantity per pack: 50
• Weight per piece: 33.98 g
• Length: 56 mm

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. This terminal block is suitable for use in ATEX environments. Always follow local electrical codes and standards.
