Weidmüller 9512190000 - beige - 70 mm² - 192 A - 85 mm - 119,233 g - 10 uds.

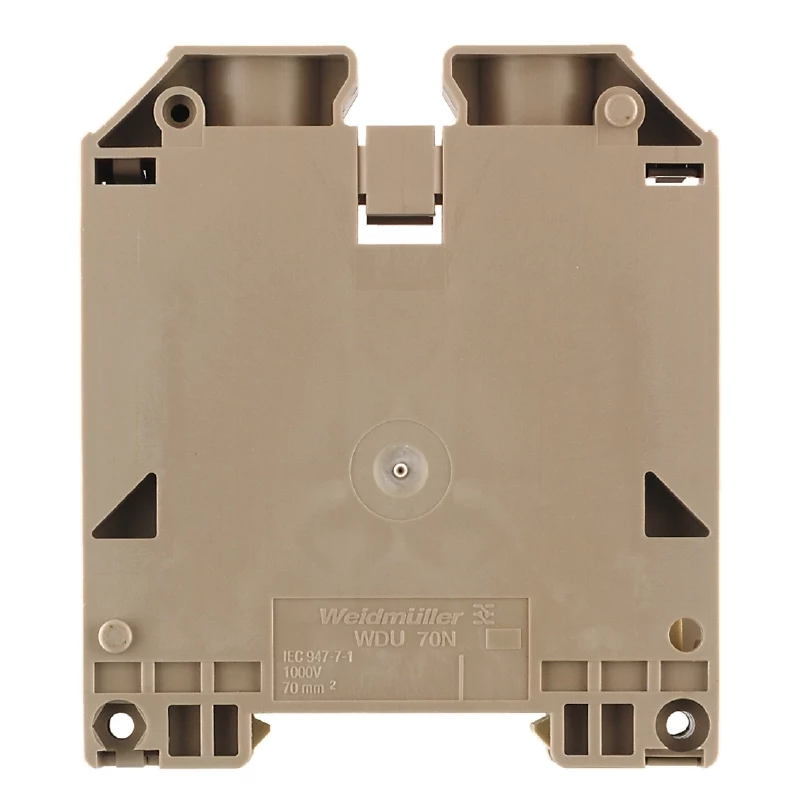

The Weidmüller 9512190000 is a high-quality feed-through terminal block designed for reliable electrical connections in industrial applications. With a rated current of 192 A and a rated voltage of 1000 V, it is suitable for demanding power distribution tasks. The terminal block features a screw connection technology and accepts conductors from 10 to 70 mm² (solid/stranded and flexible). It is mounted on a DIN rail (TS 35) and comes in a beige color. The insulating material is Wemid, offering excellent thermal and mechanical properties. The package contains 10 pieces.

Advantages

This terminal block provides secure and durable connections thanks to its robust screw connection. The wide conductor range and high current rating make it versatile for various applications. The Wemid insulation ensures long-term reliability even in harsh environments. The compact design saves space on the DIN rail.

Suitable for

• Industrial control panels
• Power distribution systems
• Machine building
• Automation systems

Key specifications

• Connection Technology: Screw Connection
• Conductor Cross-Section (Solid/Stranded): 10 - 70 mm²
• Conductor Cross-Section (Flexible): 10 - 70 mm²
• Rated Current (IEC): 192 A
• Rated Voltage (IEC): 1000 V
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: DIN Rail (TS 35)
• Color: Beige
• Insulating Material: Wemid
• Stripping Length: 22 mm
• Tightening Torque Range: 6 - 12 Nm
• Operating Temperature: -50 °C to 120 °C
• Flammability Rating: UL 94 V-0
• Approvals: cULus, IECEx, ATEX, EAC

Recommendations

For optimal performance, use appropriate tools for tightening to the specified torque range. Ensure proper conductor stripping length for secure connection. This terminal block is ideal for applications requiring high current capacity and reliable connections.
