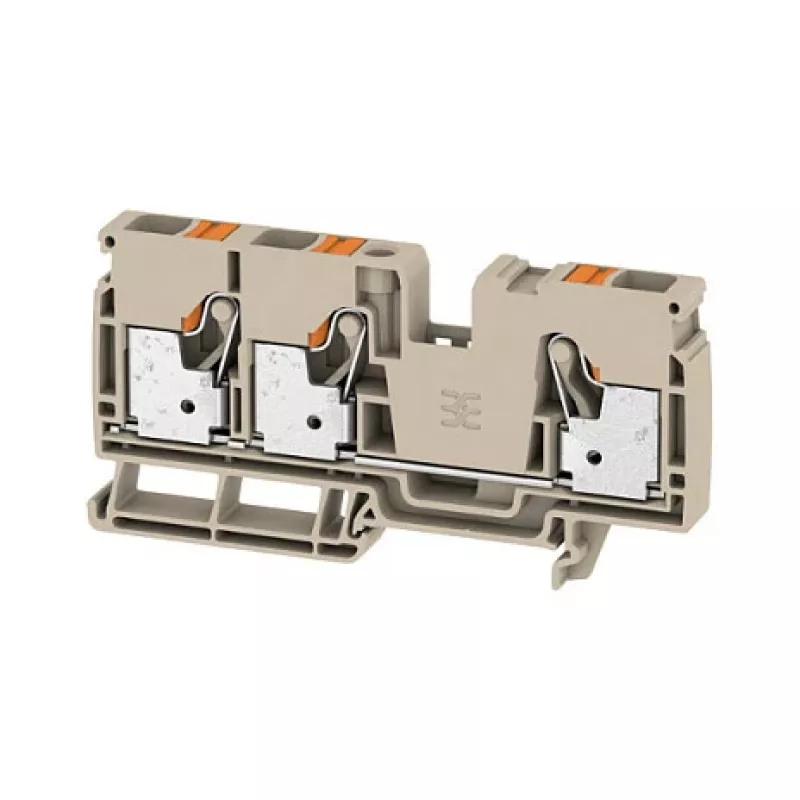

Weidmüller A3C 10 borne de carril universal, conexión por tornillo, 10 mm², beige oscuro

The Weidmüller A3C 10 universal terminal block (model 2490520000) is a high-quality DIN rail mount terminal block designed for reliable and secure electrical connections. With a screw connection technology and a nominal cross-section of 10 mm², it is suitable for a wide range of industrial applications. The terminal block features a compact design with 3 connections and 1 potential, making it ideal for space-saving installations.

Advantages

Robust screw connection ensures secure and vibration-resistant wiring. Wide operating temperature range from -50 °C to +120 °C allows use in harsh environments. High flammability rating (UL 94 V-0) provides excellent fire safety. The Wemid insulation material offers high mechanical and thermal resistance.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine wiring

Key specifications

• Connection Technology: Screw Connection
• Number of Connections: 3
• Number of Potentials: 1
• Number of Levels: 1
• Nominal Cross-Section: 10 mm²
• Wire Size (Solid): 0.5 - 16 mm²
• Wire Size (Stranded): 0.5 - 10 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 57 A
• Rated Impulse Withstand Voltage: 8 kV
• Pollution Degree: 3
• Insulation Material: Wemid
• Flammability Rating (UL 94): V-0
• Mounting Type: DIN Rail (TS 35)
• Color: Dark Beige
• Operating Temperature: -50 °C to +120 °C
• Stripping Length: 12 mm
• Tightening Torque: 1.2 - 2 Nm
• Approvals: CE, cURus, EAC, KEMA, ATEX, IECEx

Recommendations

For optimal performance, use with appropriate wire ferrules and ensure proper tightening torque. Suitable for use in Ex e applications as per ATEX and IECEx approvals.
