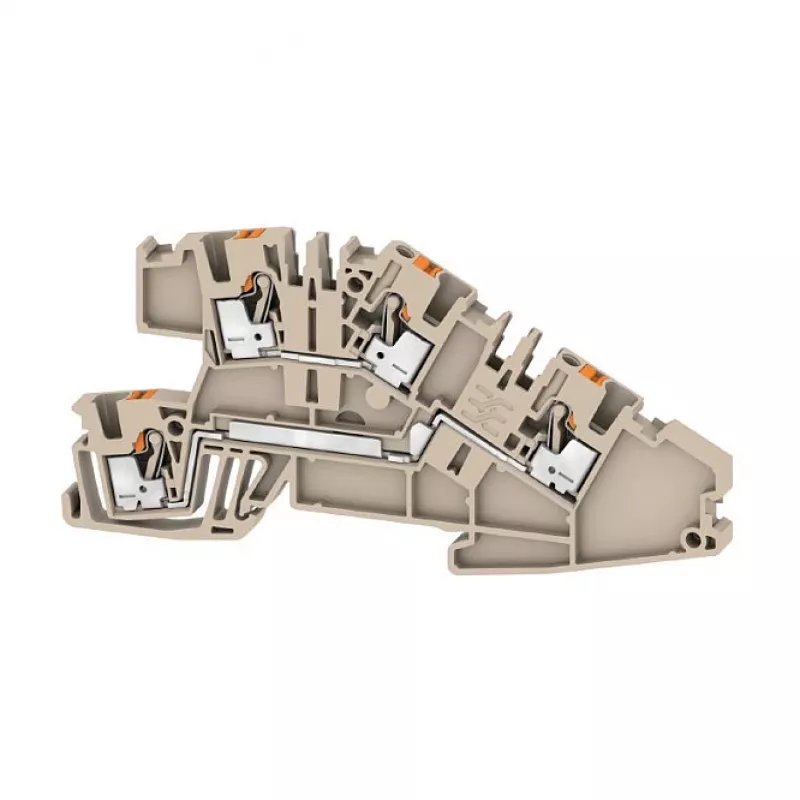

Weidmüller AITB 2.5 BB L-L borne de carril de instalación 2668900000

The Weidmüller AITB 2.5 BB L-L is a high-quality installation terminal block designed for reliable and safe electrical connections. With a rated cross-section of 2.5 mm² and screw connection technology, it is ideal for use in industrial and building installations. The black housing is made from Wemid insulation material, offering excellent thermal and mechanical properties. This terminal block is DIN rail mountable (TS 35) and suitable for a wide temperature range from -50 to 120 °C.

Advantages

Robust screw connection ensures secure and maintenance-free wiring. Compact design saves space on the DIN rail. High flammability rating (UL 94 V-0) provides enhanced safety. Suitable for both solid and flexible conductors up to 4 mm².

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution panels
• Lighting and signal circuits

Key specifications

• Terminal Type: Installation Terminal Block
• Connection Method: Screw Connection
• Number of Poles: 2
• Number of Connection Points: 4
• Rated Cross-Section: 2.5 mm²
• Wire Size (Solid): 0.5 - 4 mm²
• Wire Size (Flexible): 0.5 - 4 mm²
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 24 A
• Number of Potentials: 2
• Number of Levels: 1
• Color: Black
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid
• Operating Temperature Range: -50 to 120 °C
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating (UL 94): V-0
• Approvals: VDE, EAC, cULus

Recommendations

For optimal performance, use with appropriate end covers and marking tags. Ensure proper tightening torque as per manufacturer guidelines.
