Weidmüller borne de paso, conexión por tornillo, 800 V, 41 A, 6 mm², beige, 100 uds.

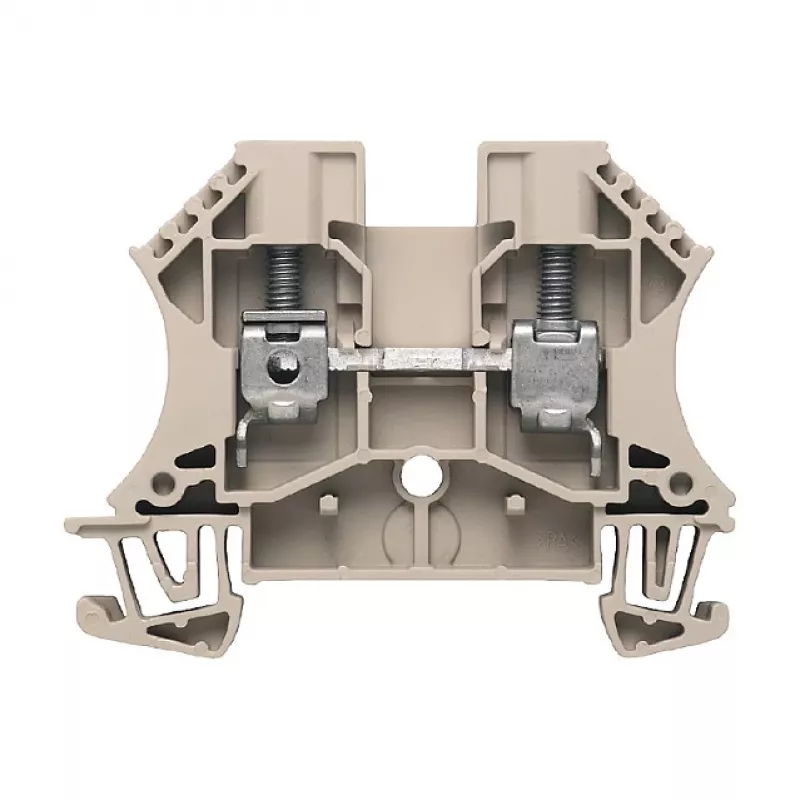

The Weidmüller 1020200000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a rated voltage of 800 V and a rated current of 41 A, this terminal block is suitable for a wide range of wiring tasks. It features a screw connection technology for easy and secure wire termination, accommodating flexible conductors from 0.5 to 6 mm² and solid conductors up to 10 mm² (AWG 20 to 8). The beige insulation material is made of Wemid (PA 66), offering excellent thermal and mechanical properties.

Advantages

This terminal block provides a robust and durable connection solution. The screw connection ensures a reliable and vibration-resistant contact. The Wemid insulation material offers high temperature resistance and flame retardancy (UL 94 V-0), ensuring safety in demanding environments. The compact design saves space on the DIN rail, and the clear marking options facilitate easy identification.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine building
• Railway and transportation applications

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Rated Voltage: 800 V
• Rated Current: 41 A
• Conductor Cross-Section (flexible): 0.5 - 6 mm²
• Conductor Cross-Section (solid): 0.5 - 10 mm²
• Wire Size (AWG): 20 - 8 AWG
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail TS 35
• Color: Beige
• Insulation Material: Wemid (PA 66)
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Stripping Length: 12 mm
• Tightening Torque: 0.8 - 1.2 Nm
• Pollution Degree: 3
• Pack Quantity: 100 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. This terminal block is ideal for new installations as well as retrofitting existing systems. Always follow local electrical codes and regulations.
