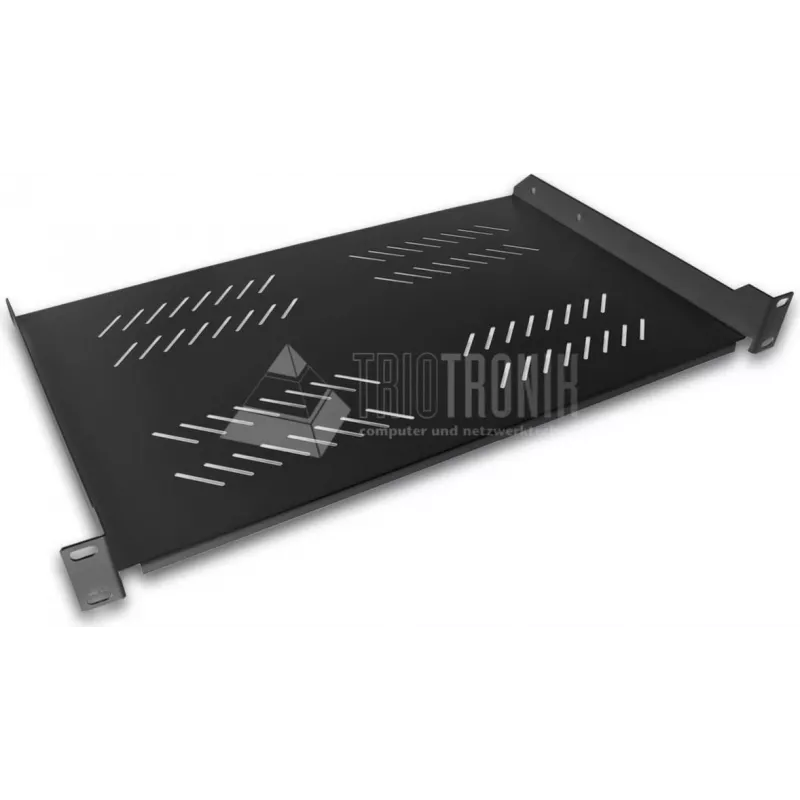

Wirewin bandeja extraíble para rack de 19", negra, 280 mm de profundidad (SHELF 280 BL)

For installations where every millimetre of cabinet depth matters, the SLIM WIREWIN SHELF 280 BL delivers a fixed, front-mounted 19-inch shelf with a compact 280 mm projection. Unlike generic cantilever shelves that flex under load, this unit uses a powder-coated steel construction with a four-point mounting system, providing a stable platform for servers, network appliances, and AV components in shallow enclosures. The solid, non-ventilated surface keeps small items from falling through while still allowing airflow around equipment.

Highlights

• 19-inch EIA-310-D compliant rack shelf for standard server cabinets and open frames
• 280 mm usable depth suits wall-mount and shallow racks where space is tight
• Black powder-coated steel finish resists scratches and blends with modern rack interiors
• 1U height (44.45 mm) with front-mount ears and included hardware for quick installation
• 25 kg load capacity supports switches, patch panels, small UPS units, and AV gear
• Solid shelf surface with 440 mm usable width between mounting ears

In daily use

Mount the shelf at any 1U position using the pre-punched front ears and included cage nuts and screws. The 280 mm depth keeps the shelf clear of rear cabling in shallow cabinets, while the solid steel deck provides a clean, flat surface for devices that lack rack ears. Because the shelf is fixed and front-mounted, it is ideal for equipment that needs to be accessed frequently from the front of the rack. The black powder coating not only protects against corrosion but also reduces visible wear in high-traffic IT closets.

Full specifications

• Product type: Fixed rack shelf
• Rack size: 19-inch
• Rack units: 1U
• Depth: 280 mm
• Usable shelf width: 440 mm
• Overall width with mounting ears: 482.6 mm
• Overall height: 44.45 mm
• Material: Steel
• Finish: Powder-coated
• Colour: Black
• Load capacity: 25 kg
• Mounting type: Front-mounted, fixed
• Mounting points: 4 (two per side)
• Ventilation: Solid (non-ventilated)
• Compliance: EIA-310-D
• Mounting hardware: Included (cage nuts, screws, washers)
• Installation: Quick, tool-friendly
• Application: Servers, networking equipment, AV equipment

Final note

The SHELF 280 BL is a practical, no-nonsense solution for shallow racks and wall cabinets. Its 280 mm depth and solid steel build make it a reliable choice for installers who need a sturdy shelf without sacrificing valuable rack space.
