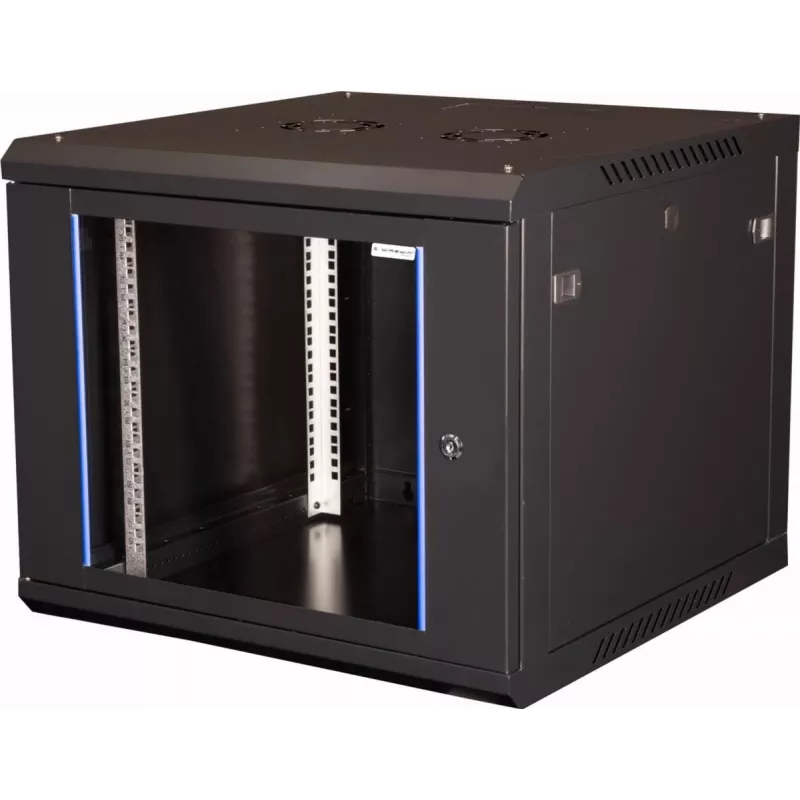

Wirewin caja de pared de 19", de una pieza, Pro 3.ª generación, 600x600 mm, 12U, negro WCAB PS3 600X600X12U B

With a 60 kg static load capacity and a lockable tempered glass front door, this 12U wall-mount cabinet secures network equipment in a compact 600x600 mm footprint.

Overview

The Wirewin Pro 3rd Generation wall-mount cabinet is a single-section 19" enclosure designed for structured cabling and small network installations. Its 600x600 mm footprint accommodates standard 19-inch equipment, while the 12U height provides ample space for patch panels, switches, and other rack-mount devices. The cabinet is finished in black (RAL 9005) powder coating over SPCC cold rolled steel for durability. Removable and lockable side panels allow easy access during installation and maintenance.

What stands out

• Lockable tempered glass front door protects equipment while allowing visual monitoring.
• Removable side panels with locks provide secure yet convenient access.
• Top and bottom cable entry with brush strips maintains a clean installation.
• Adjustable 19" mounting rails accommodate various equipment depths.
• Passive ventilation with provisions for an optional fan unit ensures adequate airflow.

Technical details

• Rack units: 12U
• External dimensions: 600 mm width, 600 mm depth, approximately 635 mm height
• Material: SPCC cold rolled steel with powder coating
• Colour: Black (RAL 9005)
• Front door: Lockable tempered glass
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Max static load: 60 kg
• Protection class: IP20
• Mounting type: Wall mount
• Included accessories: 2x 19" mounting rails (adjustable depth), mounting hardware

Our verdict

A robust and secure wall-mount cabinet for small to medium network installations, offering easy access and clean cable management.
