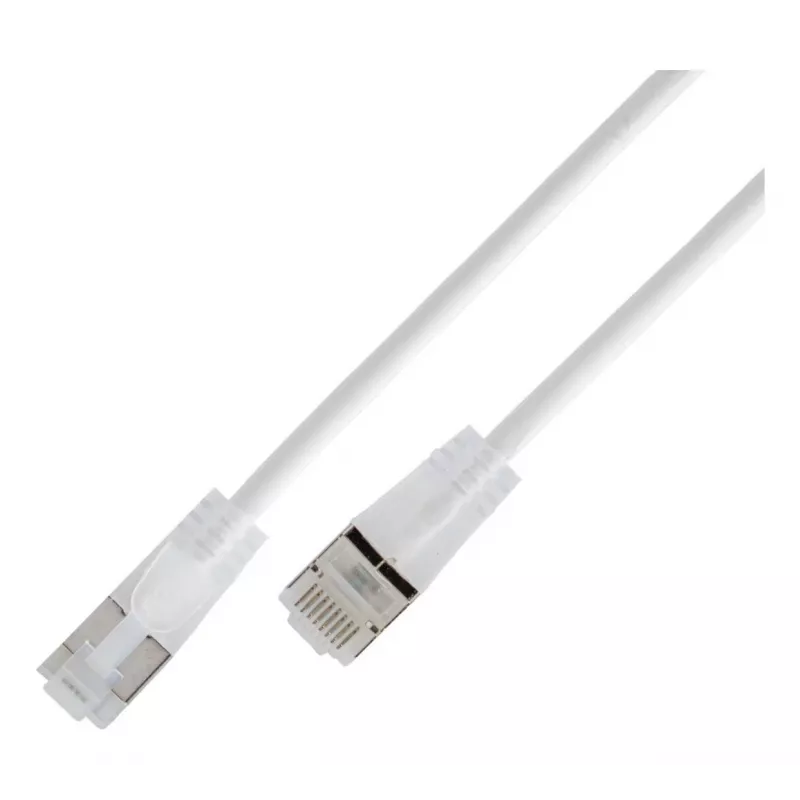

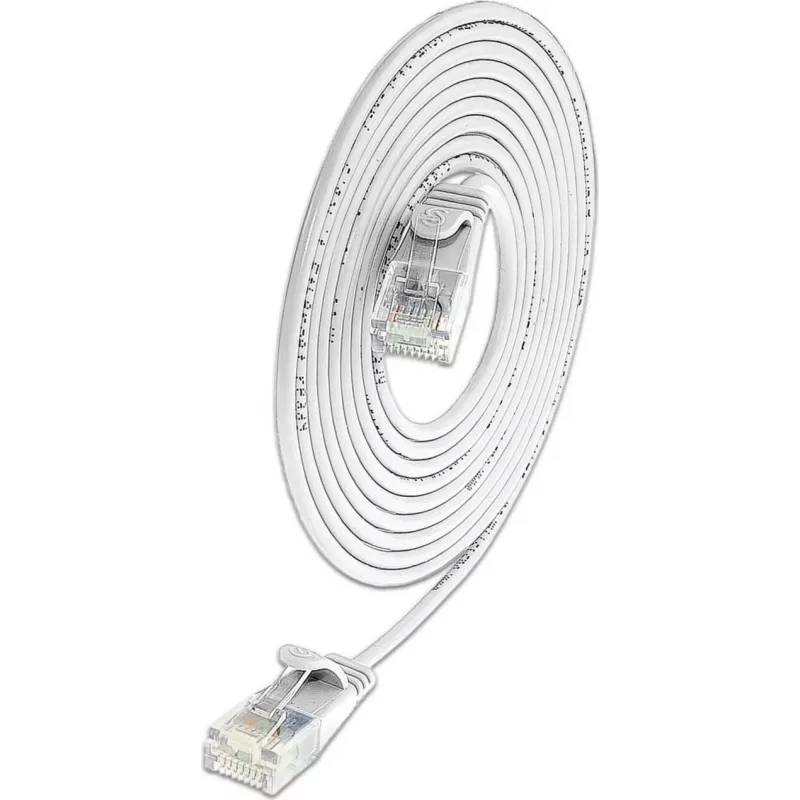

Wirewin SLIM KAT6A 10 Gigabit cable de parcheo Light redondo, U/UTP, Ø 3,6 mm, blanco, 5,0 m (SLIM-L-UU-K6A 5.0 WT)

In dense network racks, standard Cat 6A cables are often too thick to manage neatly, blocking airflow and making patching a struggle. This SLIM WIREWINE patch cable solves that with a slim 3.6 mm diameter while still delivering full 10 Gigabit performance over 5 meters.

Who is it for

Network administrators, IT technicians, and home users who need reliable high-speed connections in space-constrained environments such as server rooms, patch panels, and crowded desks.

Main features

• Cat 6A performance with 500 MHz bandwidth supports 10GBASE-T Ethernet.
• Slim round design (Ø 3.6 mm) saves space and improves airflow in racks.
• Unshielded U/UTP construction with 4 twisted pairs of copper wire (AWG 30).
• Gold-plated RJ45 connectors (50µm) ensure corrosion resistance and reliable contact.
• Snagless boot protects the locking tab during installation and removal.
• LSZH (Low Smoke Zero Halogen) jacket for safety in case of fire.
• White color for easy identification and neat cable management.
• Complies with ISO/IEC 11801, EN 50173-1, and TIA/EIA-568-C.2 standards.

Specifications

• Cable type: Patch Cable
• Category: Cat 6A
• Shielding: U/UTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 5.0 m
• Connector type: RJ45 Male to RJ45 Male
• Cable shape: Round
• Cable diameter: 3.6 mm
• Conductor material: Copper
• Conductor gauge: AWG 30
• Jacket material: LSZH
• Connector plating: Gold-plated (50µm)
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. The slim design is ideal for high-density patching, but handle with care to avoid excessive pulling force on the thin conductors.
