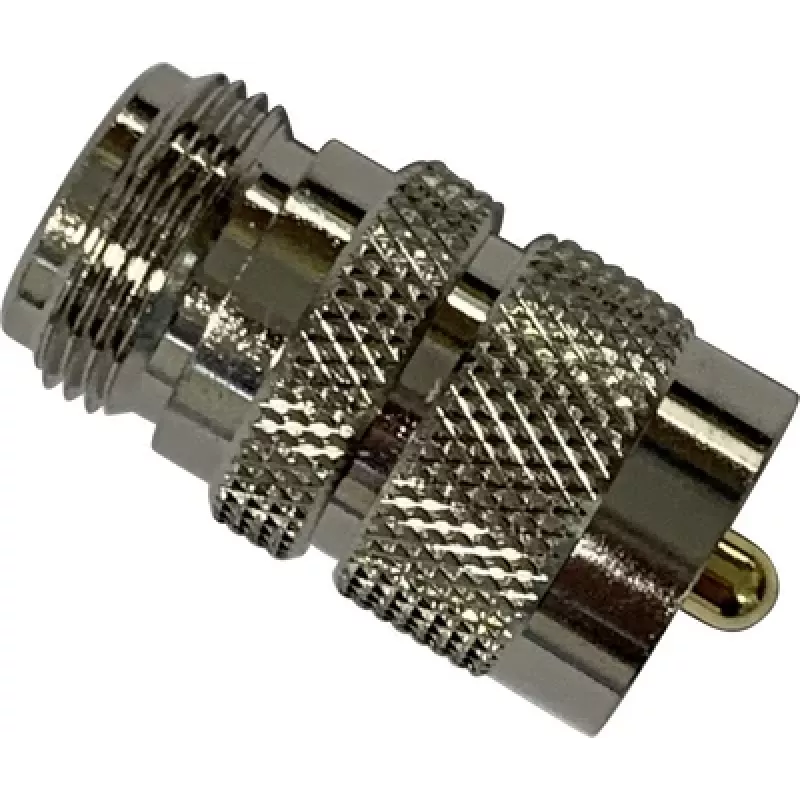

Wittenberg Antennen UG83 Adaptador de conector UHF macho a conector N hembra 103504

Connect a UHF (PL-259) plug to an N-type socket with the Wittenberg Antennen UG83 adapter. This inline adapter is used by radio technicians and antenna installers to bridge UHF-equipped radios and cables to N-type test equipment and antenna systems. The straight body and 50 Ohm impedance maintain signal integrity across DC to 1 GHz.

Key specifications

• Connector A: UHF male (PL-259)
• Connector B: N female
• Impedance: 50 Ohm
• Body: Brass, nickel-plated
• Center contact: Brass, gold-plated
• Insulation: PTFE
• Frequency range: DC to 1 GHz
• VSWR: less than 1.3:1
• Dielectric withstanding voltage: 1500 V RMS
• Operating temperature: -55°C to +155°C

Why choose it

The gold-plated center contact and PTFE insulation ensure low loss and reliable connections in demanding RF environments. The nickel-plated brass body provides durability and corrosion resistance.

Ideal use cases

• Adapting UHF radio outputs to N-type test equipment
• Connecting antennas with UHF connectors to N-type cables
• RF measurement setups requiring impedance-matched transitions

Good to know

This adapter follows the UG83 series standard and is suitable for inline use. It is not intended for outdoor waterproof applications without additional sealing.
