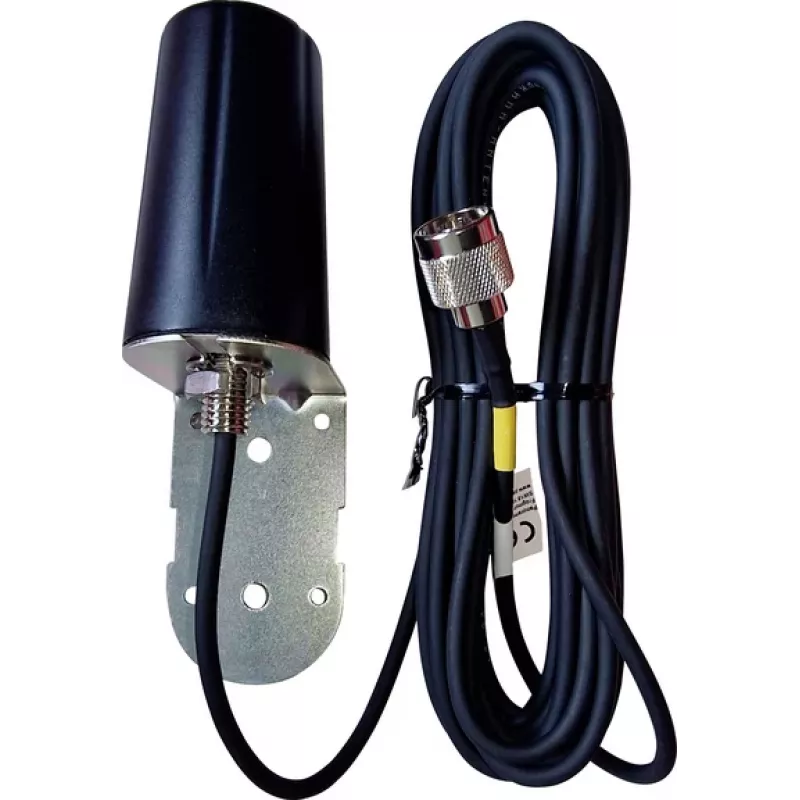

Wittenberg Antennen WB 716 Antena de pared 5G LTE UMTS GSM conector N 2-7 dBi cable de 5 m

Weak mobile signal indoors can disrupt calls and slow data. The Wittenberg Antennen WB 716 wall antenna solves this by capturing and directing 5G, LTE, UMTS, and GSM signals where they are needed most. Mount it on a wall indoors or outdoors to improve reception for modems, routers, or repeaters.

Who is it for

Anyone needing reliable mobile connectivity in areas with poor coverage, such as rural homes, offices, or industrial buildings. It works with devices that have an N-type connector.

Main features

• Supports 5G, LTE, UMTS, and GSM across 698–960 MHz, 1710–2700 MHz, and 3300–3800 MHz.
• Gain of 2–7 dBi for flexible signal boosting.
• N-type connector and 5 m low-loss H 155 coaxial cable for easy installation.
• UV-stabilized ABS housing for durability in indoor or outdoor use.
• 50 Ohm impedance and VSWR below 2.0 for efficient transmission.

Specifications

• Frequency range: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Gain: 2–7 dBi
• Connector: N-type
• Cable length: 5 m
• Cable type: H 155 low-loss coaxial
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Linear
• Max power: 50 W
• Mounting: Wall
• Operating temperature: -40°C to +80°C
• Colour: White

Tips

Place the antenna as high as possible and point it toward the nearest cell tower for best results. Keep the cable run short to minimize signal loss.
