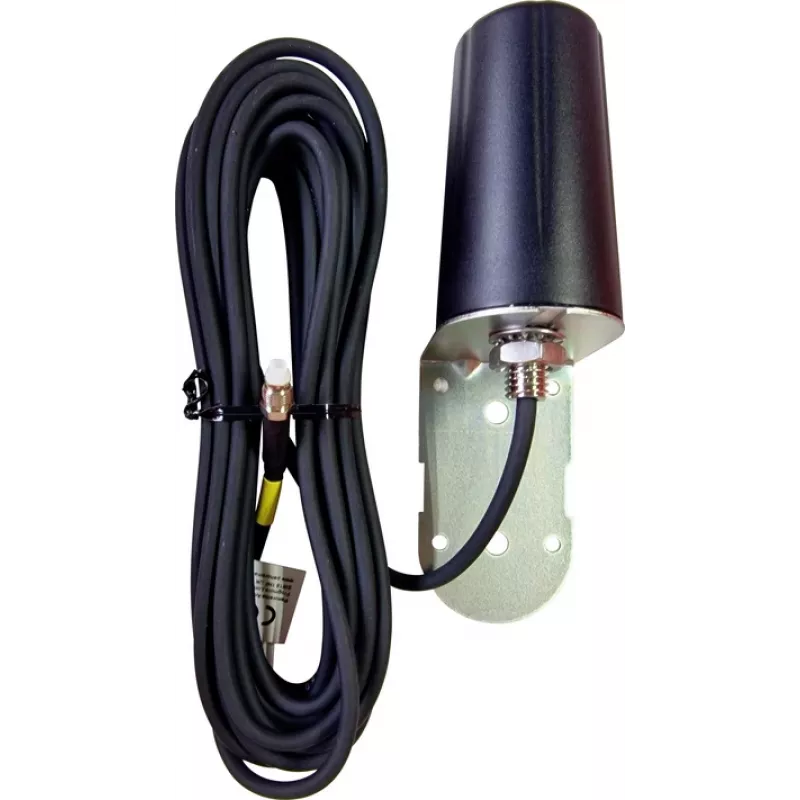

Wittenberg Antennen WB 816 antena de pared 5G LTE UMTS GSM 2-7 dBi 5m conector hembra FME

The Wittenberg Antennen WB 816 is a wall-mountable directional antenna that covers the full spread of cellular bands from 698 MHz to 3800 MHz, making it suitable for 5G, LTE, UMTS, and GSM networks. Its gain varies from 2 to 7 dBi depending on frequency, and the 5-meter RG58 cable with FME-female connector gives flexibility in positioning the antenna away from the modem or router.

Highlights

• Supports 5G, LTE (4G), UMTS (3G), and GSM (2G)
• Wide frequency coverage: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Directional radiation pattern with vertical polarization
• UV-resistant ABS housing for outdoor durability
• Includes 5 m RG58 cable terminated with FME-female connector

In daily use

The WB 816 is designed for fixed installations where a stronger, more focused signal is needed—such as rural homes, offices, or industrial sites. Its directional pattern helps reduce interference from unwanted directions, while the 50-ohm impedance ensures compatibility with most cellular equipment. The antenna can be mounted on a wall using appropriate hardware, and the 5-meter cable allows the antenna to be placed in the best reception spot while keeping the modem indoors.

Full specifications

• Antenna type: Wall antenna
• Supported technologies: 5G, LTE, UMTS, GSM
• Frequency range: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Peak gain: 2–7 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Vertical
• Radiation pattern: Directional
• Connector type: FME-female
• Cable length: 5 m
• Cable type: RG58
• Mounting type: Wall mount
• Housing material: UV-resistant ABS plastic
• Operating temperature: -30°C to +70°C

Final note

The WB 816 offers a straightforward way to improve cellular reception across multiple generations of mobile networks, with a rugged build that withstands outdoor conditions.
