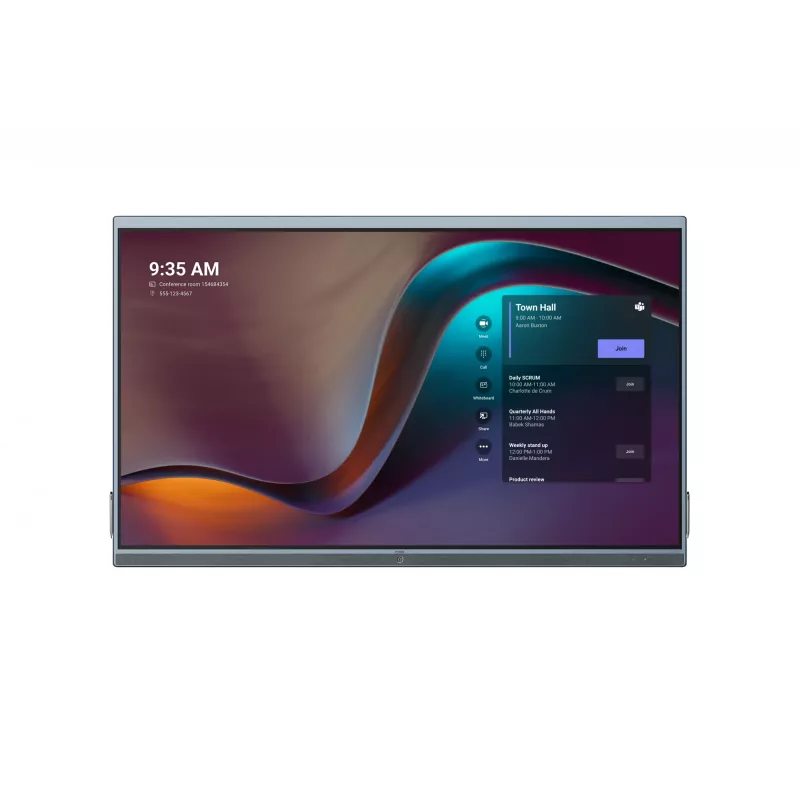

Yealink Pantalla táctil extendida para MeetingBoard86 – ETV86

The Yealink Extended Touchscreen MeetingBoard86 ETV86 is an 86" 4K (3840 x 2160) touchscreen designed to extend the MeetingBoard86 into a dual-screen setup. The display supports up to 60 Hz refresh rate, comes in a black housing and features a panel mounting interface of 800 x 600 mm. It is powered by AC (100–240 V) and its physical dimensions are 1967 mm (W) x 96 mm (D) x 1205 mm (H) with a weight of 85.3 kg.

Advantages

The ETV86 provides a large high-resolution surface for shared content and simultaneous display of remote participants, enabling a flexible dual-screen meeting configuration. Its 4K resolution and 60 Hz refresh rate ensure clear visual detail, while the standard panel mount interface simplifies integration with existing meeting room installations. The AC power range (100–240 V) supports international deployment.

Suitable for

• Conference rooms and large meeting spaces
• Hybrid meetings requiring separate displays for participants and content
• Collaboration environments with MeetingBoard86 systems
• Rooms where a mounted 86" touchscreen is preferred

Key specifications

• Diagonal: 86"
• Resolution: 3840 x 2160 (4K)
• Refresh rate: up to 60 Hz
• Panel mount interface: 800 x 600 mm
• Power: AC 100–240 V
• Dimensions (W x D x H): 1967 x 96 x 1205 mm
• Weight: 85.3 kg

How to use

Mount the Extended Touchscreen using the 800 x 600 mm panel mounting interface and connect it to the MeetingBoard86 to form a dual-screen configuration. Provide AC power within the 100–240 V range and configure display settings on the MeetingBoard86 for optimal layout (participant view vs. shared content). Use touch and collaboration features through the integrated display as part of the combined system.

Recommendations

For reliable operation and safety, install the ETV86 on a suitable structural mount rated for the display weight (85.3 kg) and follow local regulations for electrical installation. Pair it directly with the MeetingBoard86 to achieve the intended dual-screen experience.
