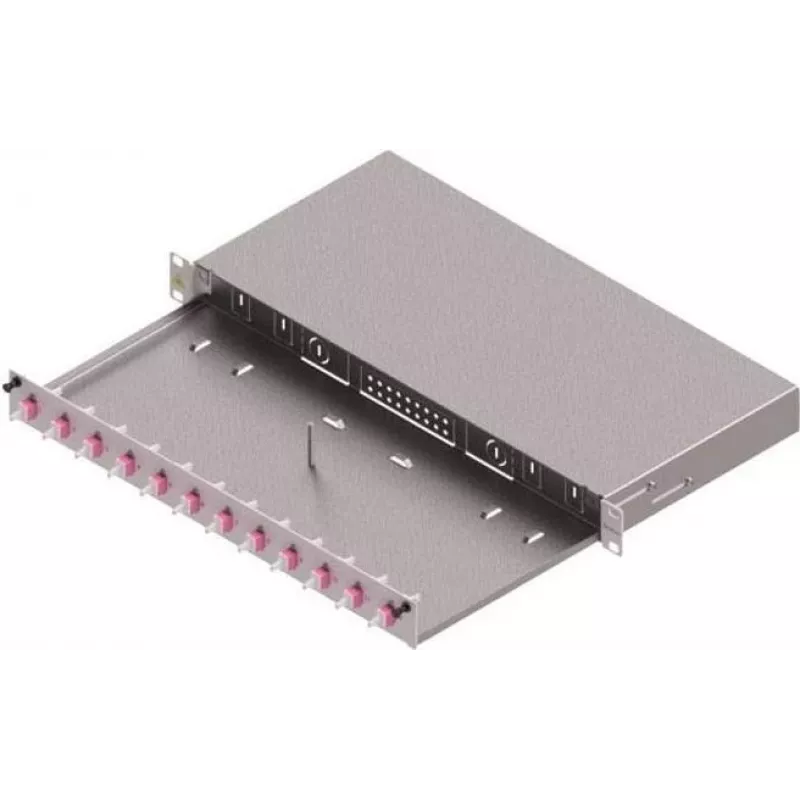

ZVK EasyLan panel de distribución de fibra óptica Basic LSB0B224 Grade C 1U 12 puertos 12x LC-Duplex OM4

The ZVK EasyLan LWL Verteilerfeld Basic LSB0B224 is a high-quality fiber optic distribution panel designed for 19-inch rack mounting. With 1U height and 12 LC-Duplex ports, it provides reliable connectivity for OM4 multimode fiber networks in data centers, LANs, and telecommunications environments.

Advantages

This panel offers easy front-access patching and rear cable entry, simplifying installation and maintenance. The robust steel housing ensures durability, while the Grade C classification guarantees cost-effective performance for standard applications.

Suitable for

• Data centers requiring high-density fiber management
• Local Area Networks (LAN) with OM4 infrastructure
• Telecommunication systems needing organized fiber termination

Key specifications

• Product Type: Fiber Optic Distribution Panel
• Mounting: 19-inch Rack Mount, 1U
• Number of Ports: 12
• Connector Type: LC-Duplex
• Fiber Mode: Multimode OM4
• Total Fiber Capacity: 24 fibers (12 duplex)
• Series: Basic
• Product Grade: C
• Housing Material: Steel
• Included Components: 12x LC-Duplex Adapters

Recommendations

For optimal performance, pair with OM4 patch cables and ensure proper cable management. This panel is ideal for structured cabling in enterprise networks.
