ZVK GMBH EL fixLink Panel de montaje inferior Consolidation Point 6 puertos (CKVPL0061E)

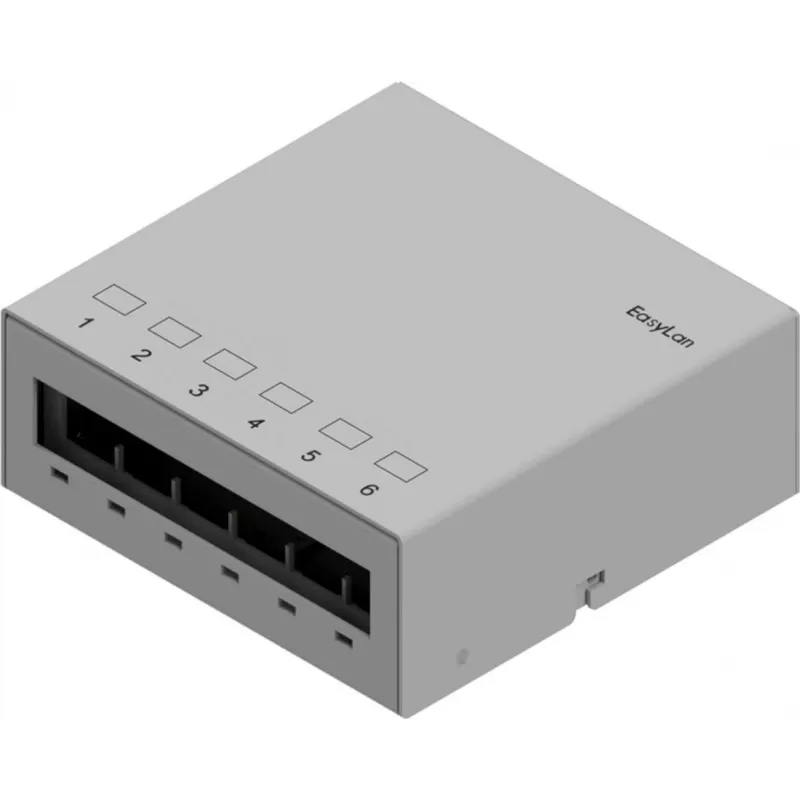

The ZVK GMBH EL fixLink Unterbaupanel Consolidation Point 6 Port (CKVPL0061E) is a high-quality shielded consolidation point panel designed for structured cabling systems. It provides a reliable and organized connection point for up to 6 keystone jacks, making it ideal for under-desk, under-floor, or wall-mount installations. This panel supports Cat.6A (Class EA) performance and is fully compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Advantages

This consolidation point panel offers exceptional flexibility and ease of installation. Its compact design saves space while providing robust performance for high-speed data transmission up to 500 MHz. The integrated grounding connection ensures safety and signal integrity, and the LSA+ (IDC) termination type allows for quick and tool-free wire termination. The panel is also PoE compatible, supporting IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) for powering devices directly through the network.

Suitable for

• Structured cabling systems in commercial buildings
• Data centers and server rooms
• Office environments requiring flexible and organized cabling
• Under-desk or under-floor installations for clean cable management

Key specifications

• Number of Ports: 6
• Connector Type: RJ45 (8P8C)
• Cabling Standard: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Transmission Frequency: Up to 500 MHz
• Termination Type: LSA+ (IDC)
• Mounting Type: Under-desk, Under-floor, Wall-mount
• Housing Material: Sheet Steel
• Housing Color: Light Grey (RAL 7035)
• PoE Support: IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Protection Class: IP20
• Operating Temperature: -10°C to +60°C

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. This panel is an excellent choice for creating consolidation points in large-scale cabling infrastructures.
