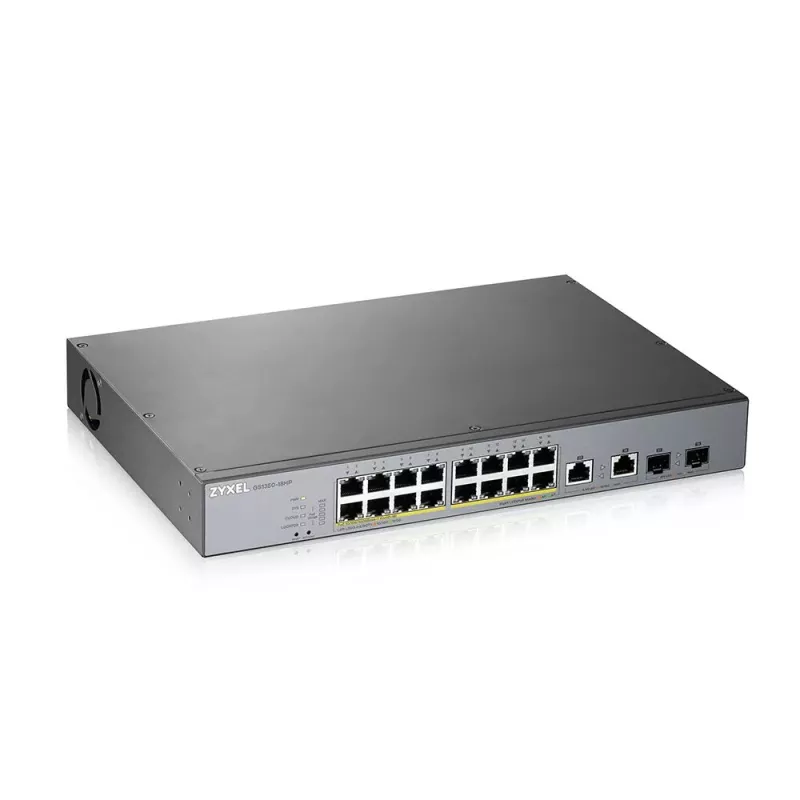

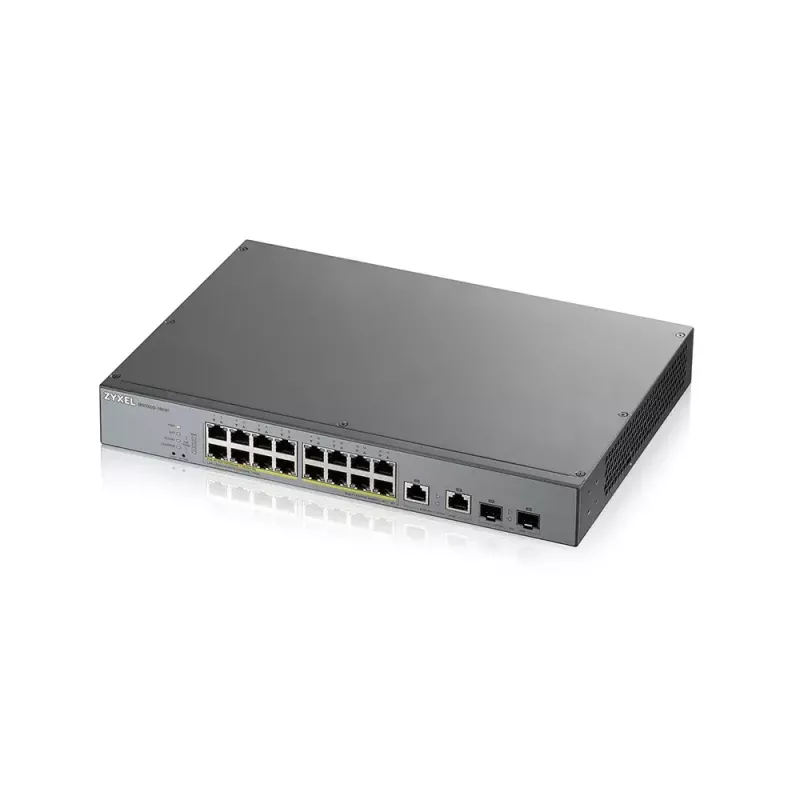

Zyxel GS1350-18HP-EU0101F Switch de red Gestionado L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gris

The Zyxel GS1350-18HP-EU0101F is a managed L2 Gigabit Ethernet switch tailored for surveillance deployments. With 16 Gigabit RJ‑45 ports supporting PoE, a switching capacity of 36 Gbit/s and an 8000‑entry MAC address table, it provides stable connectivity and sufficient bandwidth for multi‑camera systems. The unit includes specialized surveillance features, extended‑range PoE up to 250 m over Cat5e, and a high total PoE budget to power multiple cameras while maintaining a compact, titanium‑grey chassis.

Advantages

The switch offers automated detection and recovery of failed IP cameras and powered devices using customizable parameters, continuous power delivery during firmware or configuration maintenance to reduce camera downtime, and an extended‑range PoE mode that enables deployments up to 250 m over existing Cat5e cabling. Front‑panel LEDs show real‑time PoE status and a one‑touch Restore button simplifies recovery from misconfiguration. Robust hardware includes surge and ESD protection, isolated circuitry, filtered power to reduce electrical noise, and an intelligent system monitor for reliable operation.

Suitable for

• Video surveillance systems with multiple PoE IP cameras
• Long‑distance camera deployments using existing Cat5e cabling (extended‑range up to 250 m)
• Small to medium business network edge aggregation with PoE requirements

Key specifications

• Model: Zyxel GS1350-18HP-EU0101F
• Ports: 16 × Gigabit RJ‑45 (10/100/1000) with PoE
• Switching capacity: 36 Gbit/s
• MAC address table: 8000 entries
• PoE budget: up to 375 W (model series maximum)
• Networking standards: IEEE 802.3/802.3u/802.3z/802.3x/802.3az/802.3af/802.3at/802.3ad, IEEE 802.1Q/802.1p/802.1w/802.1D/802.1ab
• Colour: Titanium grey
• Weight: 2.42 kg

How to use

Install the GS1350 switch in a suitable rack or on a shelf, connect PoE IP cameras to the Gigabit RJ‑45 ports, and link the uplink port(s) to your core network. Use the management interface to configure VLANs, PoE settings and the surveillance‑specific recovery parameters. To enable long‑distance PoE deployments, activate the extended‑range mode for the ports connected to distant cameras. Use the front‑panel LEDs to monitor PoE status and press the Restore button if configuration rollback is required.

Recommendations

For surveillance installations, allocate sufficient total PoE budget for all connected cameras, verify Cat5e cable quality for extended‑range links, and configure automated recovery parameters conservatively to avoid unintended reboots of critical devices.
