Switch gestionado PLANET IP30 Industrial L2/L4 8 puertos Gigabit Ethernet

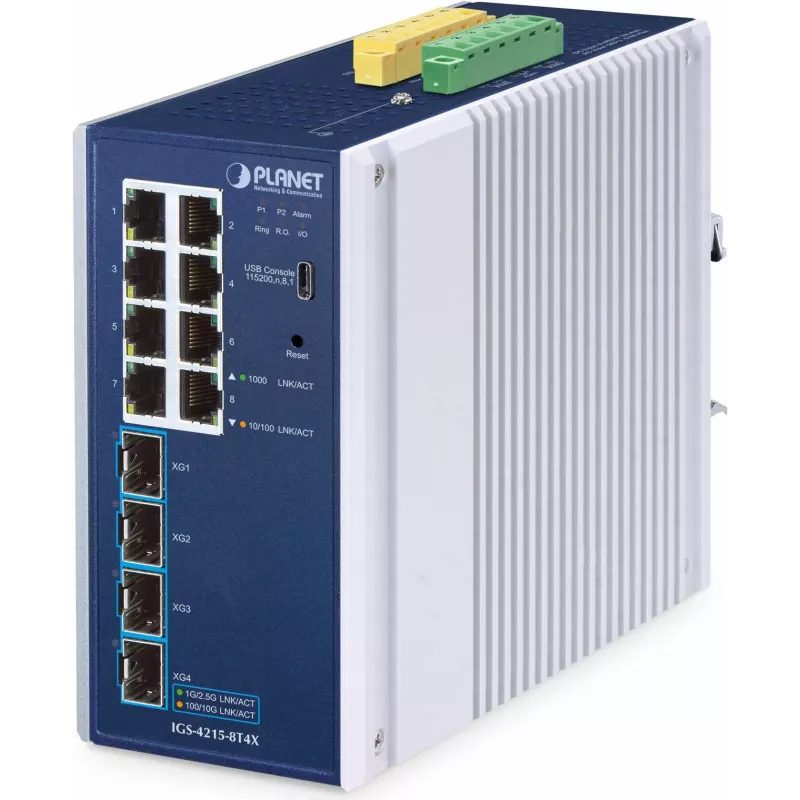

The PLANET IGS-4215-8T4X is an IP30 aluminum-cased industrial L2/L4 managed Gigabit switch designed for demanding environments. It provides 8 10/100/1000BASE-T copper ports and 4 10GBASE-X SFP+ slots, supports IPv4/IPv6 dual-stack management, and operates at ambient temperatures from -40 to 75 °C. The switch includes a USB Type-C console port and offers a switching capacity suitable for industrial networking with robust layer 2 and layer 4 features.

Advantages

The IGS-4215-8T4X combines industrial-grade hardware with advanced network security and redundancy features, including SSHv2, TLSv1.2, SNMPv3, DHCP Snooping, IP Source Guard and dynamic ARP inspection. It supports redundant ring technologies and ITU-T G.8032 ERPS for fast recovery, and provides ESD and surge protection for reliable operation in electrically noisy environments. Four SFP+ slots support 10G and backward-compatible 1G/2.5G transceivers for flexible long-distance extension.

Suitable for

• Factory floor networks and automated production lines
• Transportation and traffic control cabinets
• Utility and energy monitoring systems
• Corporate/enterprise edge deployments requiring hardened switches

Key specifications

• Model: PLANET IGS-4215-8T4X (MPN)
• Ports: 8 × 10/100/1000BASE-T, 4 × 10G SFP+
• Switching capacity: 96 Gbit/s
• Management: L2/L4, IPv4/IPv6 dual stack, Web/CLI/SNMP
• Security: SSHv2, TLSv1.2, SNMPv3, ACL (L2–L4), 802.1X, RADIUS, TACACS+
• Environmental: IP30 aluminum case, operating temperature −40 to 75 °C
• Power input range: DC 9–48 V
• Protection: ESD ±6 kV contact / ±8 kV air, surge ±4 kV
• Weight and color: ~1.232 kg; aluminium/blue

How to use

Install the switch on DIN-rail or in a suitable industrial cabinet and connect power within the DC 9–48 V input range. Terminate copper devices to the RJ-45 ports and insert appropriate SFP/SFP+ transceivers into the 10G slots according to required link distance and speed. Use the USB Type-C console, Telnet/SSH, or the web-based GUI for initial configuration. Configure VLANs, link aggregation, QoS and ACLs as required for your network design, and enable redundancy protocols (ERPS/MSTP) and security features (802.1X, DHCP Snooping, IP Source Guard) for operational resilience.

Recommendations

Place the IGS-4215-8T4X in locations protected from direct water ingress and ensure proper grounding. Select SFP/SFP+ modules compatible with the required transmission distance and enable SFP-DDM monitoring where available. Regularly back up configurations and monitor the device via SNMP or PLANET UNI-NMS/CloudViewerPro to detect faults early and use the built-in digital input/output for external alarms.
