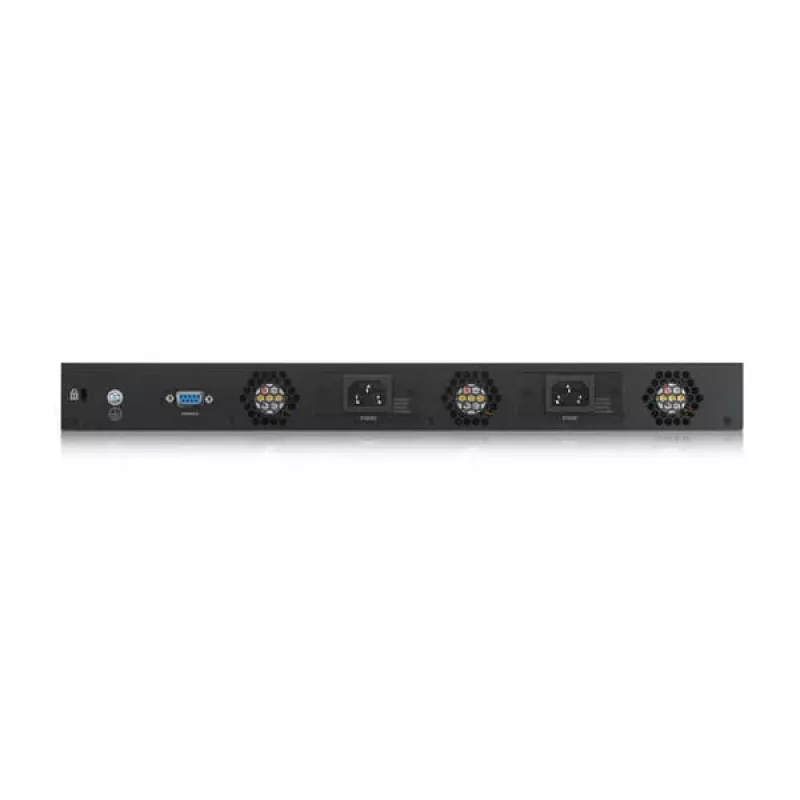

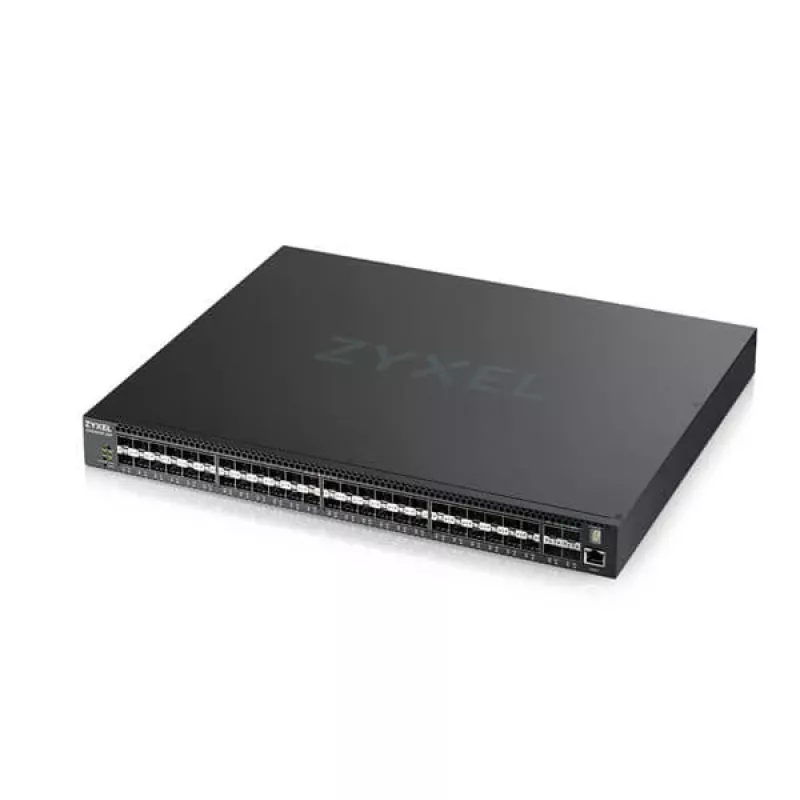

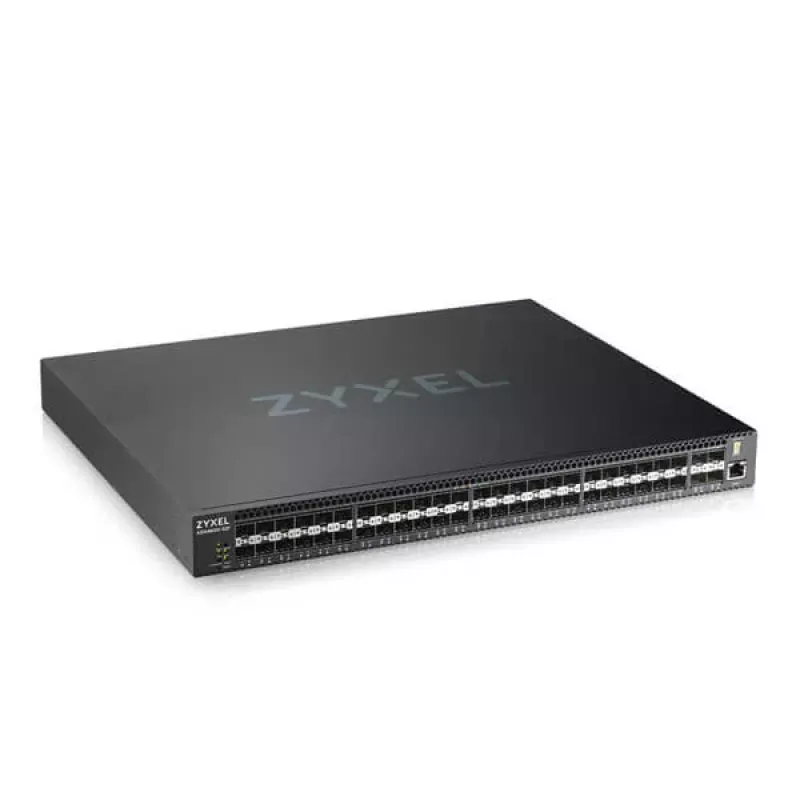

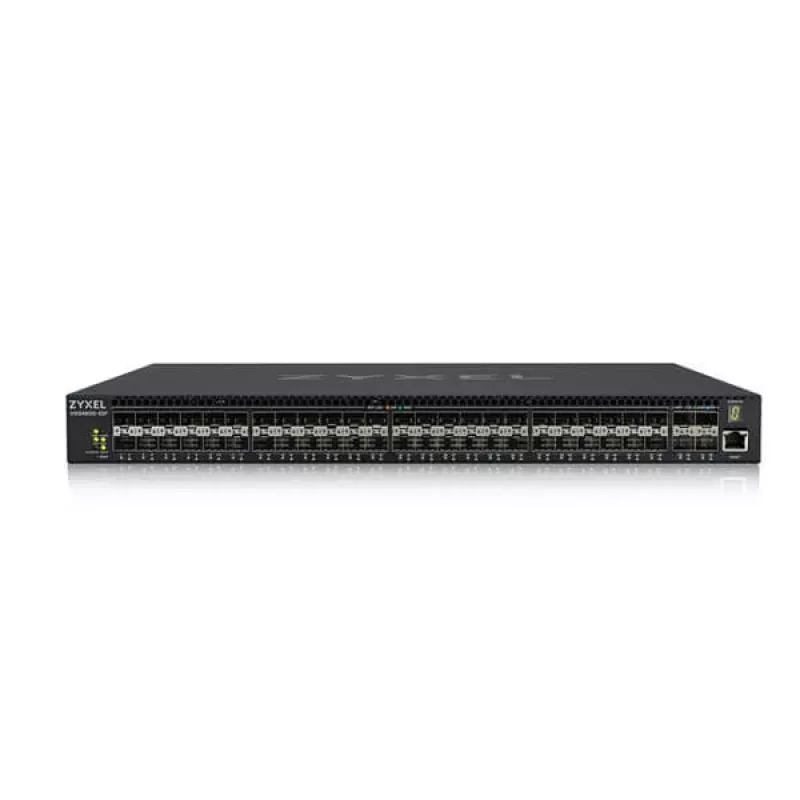

Zyxel XGS4600-52F gestionado L3 negro

The Zyxel XGS4600-52F is a Layer 3 managed switch designed for rack-mounted network environments. It provides Gigabit access ports together with multiple 10-Gigabit SFP+ uplinks, a switching capacity of 176 Gbit/s and a MAC address table supporting 32,000 entries. The switch supports common Ethernet and security standards (including IEEE 802.1D, 802.1Q and 802.1x) and is intended for use where reliable high-speed interconnects and advanced management are required.

Advantages

The XGS4600-52F combines high port density and 10G uplink capability with Layer 3 features to enable efficient cross-subnet routing and traffic management. Its compact rack-friendly design and carbon-fiber look name plate provide a modern appearance in wiring closets. The model supports stacking via SFP+ slots and active-standby power redundancy for increased availability and resiliency in critical deployments.

Suitable for

• Small to medium enterprise wiring closets requiring Layer 3 switching
• Hospitality and education networks with multiple subnets
• Environments needing 10G uplinks to aggregation or core switches
• Racked installations where managed features and security standards are required

Key specifications

• Switch type: Managed
• Switching capacity: 176 Gbit/s
• MAC address table: 32,000 entries
• 10G support: Yes (SFP+ slots)
• Networking standards: IEEE 802.3u, 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3x
• Product colour: Black
• Weight: 4.97 kg
• MPN / EAN: XGS4600-52F-ZZ0101F / 4718937595570

How to use

Install the switch in a standard 19-inch rack following the manufacturer’s rack-mount instructions and connect power. Use the management interface (web GUI, CLI or supported management protocols) to configure VLANs, Layer 3 routing, QoS and security policies according to network design. Connect access devices to the Gigabit ports and uplink aggregation or core switches via the 10-Gigabit SFP+ slots. For stacking, create a physical stack through one or two SFP+ slots as supported by the XGS4600 series and configure stack settings in the management interface.

Recommendations

Place the switch in a temperature-controlled rack environment, keep firmware up to date and configure redundant power and stacking for critical networks to maximise availability.
