2-power 2P-B156XTN03.1 - Pantalla - 39,6 cm (15,6") - WXGA

When a laptop display fails, the difference between a frustrating repair and a seamless restore often comes down to one thing: a panel that matches the original's exact specifications. The 2-POWER 2P-B156XTN03.1 is not a generic substitute—it is a precision-engineered 15.6-inch WXGA HD panel built around the trusted 40-pin LVDS interface, ensuring compatibility with a wide range of business and consumer notebooks that demand reliable, flicker-free visuals. Unlike many aftermarket screens that compromise on brightness or colour depth, this model delivers a true 200 cd/m² LED backlight and 262K colour support, so spreadsheets, presentations, and streaming content all appear crisp and natural.

Highlights

• Native 1366 x 768 WXGA HD resolution with 16:9 aspect ratio for sharp text and video.
• TN panel with LED backlight and glossy finish for vibrant, high-contrast images.

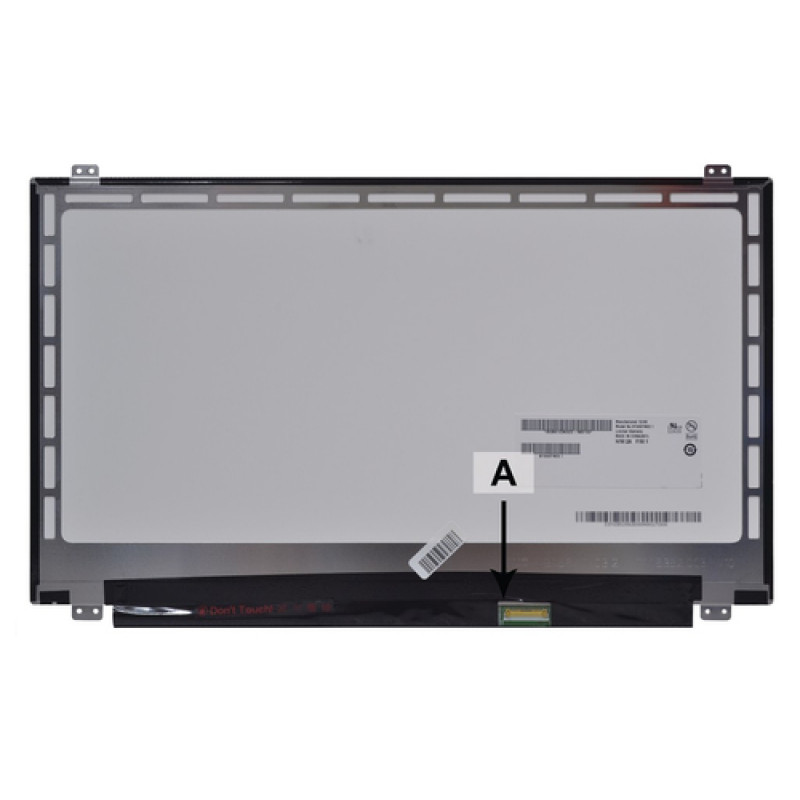

• 40-pin LVDS connector positioned bottom right for straightforward installation.
• 60 Hz refresh rate and 8 ms typical response time for smooth motion.
• Wide compatibility with laptops using 15.6" WXGA HD 40-pin LVDS panels.

In daily use

From the moment you power on, the panel's 200 cd/m² brightness and 500:1 contrast ratio provide clear readability in office lighting, while the glossy surface enhances colour richness for multimedia tasks. The TN technology keeps costs down without sacrificing the responsiveness needed for everyday computing, and the 45/45/20/40 degree viewing angles are perfectly adequate for single-user productivity. Thanks to the standard 40-pin LVDS connector, this screen is a drop-in replacement for many popular laptop models, reducing downtime and eliminating the guesswork often associated with screen repairs.

Full specifications

• Screen Size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect Ratio: 16:9
• Panel Type: TN (Twisted Nematic)
• Backlight Technology: LED
• Surface Finish: Glossy
• Data Connector: 40-pin LVDS
• Connector Position: Bottom Right
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast Ratio: 500:1 (Typ.)
• Response Time: 8 ms (Typ.)
• Color Support: 262K (6-bit)
• Viewing Angle (H/V): 45/45/20/40 (Typ.)

Final note

For technicians and DIY repairers, the 2-POWER 2P-B156XTN03.1 offers a reliable, cost-effective way to bring a laptop back to life without compromising on visual quality or compatibility.
