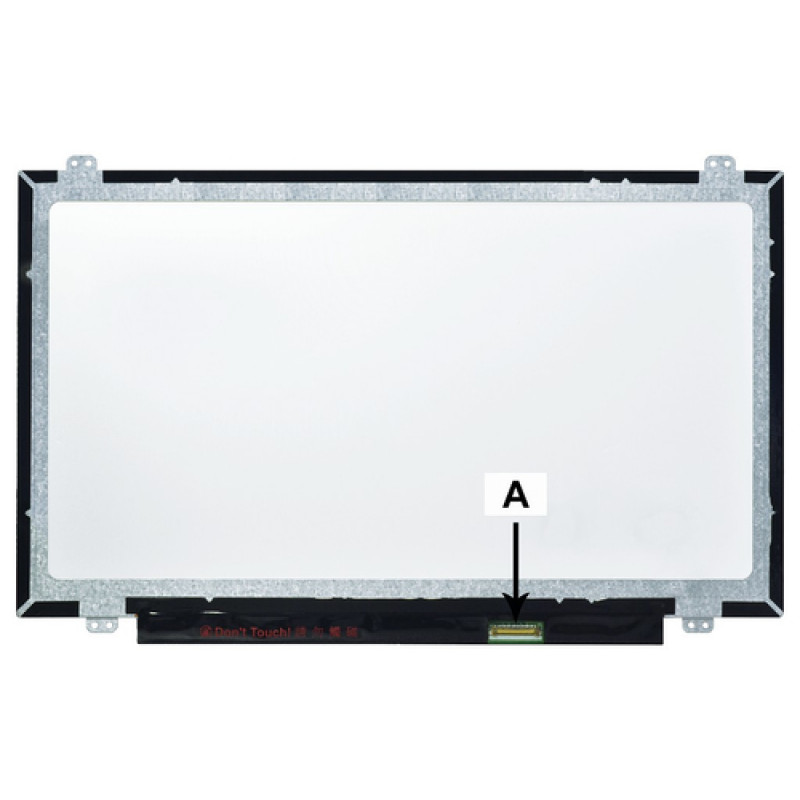

2-power 2P-HB140WX1-601 - Pantalla - 35,6 cm (14 inch) - WXGA

When a laptop screen fails, the difference between a quick repair and a frustrating downgrade often comes down to the panel's exact electrical and mechanical compatibility. The 2-POWER 2P-HB140WX1-601 addresses this by matching the original HB140WX1-601 specifications precisely: a 14-inch WXGA (1366x768) resolution, a 40-pin LVDS connector, and a slim TN profile that fits standard laptop lids without modification. Unlike generic panels with mismatched backlight drivers or mounting holes, this display is built for drop-in replacement in compatible notebooks, restoring the original viewing experience with minimal setup.

Highlights

• Native 14-inch WXGA (1366x768) resolution with 16:9 aspect ratio for crisp text and video
• LED backlight with 200 cd/m² brightness and 45% NTSC color gamut for vibrant, energy-efficient visuals
• Matte (anti-glare) surface reduces reflections, improving visibility in bright environments
• 40-pin LVDS data connector ensures compatibility with a wide range of laptop motherboards
• Fast 8 ms response time minimizes ghosting during video playback and fast-moving content
• Standard 60 Hz refresh rate for smooth everyday computing

In daily use

Installed in a compatible laptop, the 2P-HB140WX1-601 delivers consistent brightness and color across the entire screen. The matte finish is particularly valuable for users who work near windows or under harsh office lighting, as it diffuses glare without the grainy sparkle common on lower-quality anti-glare coatings. The TN panel's viewing angles are typical for this class: 45° left/right, 20° up, and 40° down, which is perfectly adequate for single-user laptop use. With a contrast ratio of 400:1, text remains legible and images retain sufficient depth for presentations, spreadsheets, and streaming media.

Full specifications

• Display Size: 14 inches (35.6 cm diagonal)
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Panel Type: TN (Twisted Nematic) TFT Active Matrix LCD
• Backlight: LED
• Surface: Matte (Anti-Glare)
• Connector: 40-pin LVDS
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m² (nits)
• Color Gamut: 45% NTSC
• Contrast Ratio: 400:1
• Viewing Angles: 45°/45°/20°/40° (Left/Right/Up/Down)
• Response Time: 8 ms
• Compatibility: Laptops requiring a 14-inch WXGA (1366x768) 40-pin LVDS display

Final note

For technicians and DIY repairers, the 2-POWER 2P-HB140WX1-601 offers a reliable, specification-accurate replacement that avoids the pitfalls of generic panels. Verify your laptop's exact screen model and connector type before ordering to ensure a seamless fit.
