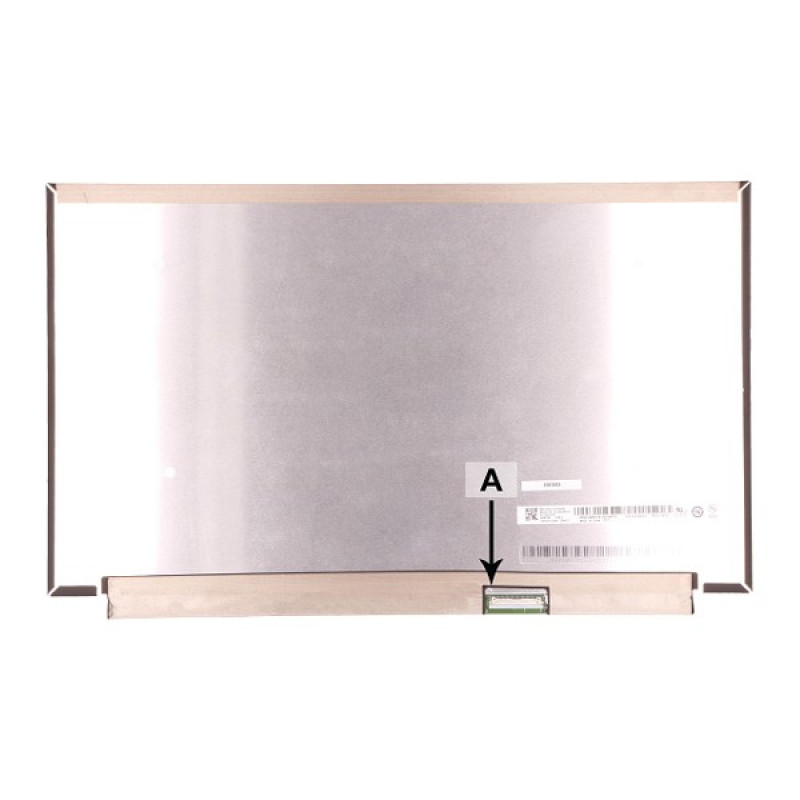

2-Power LCD CSOT 15,6 pulgadas UHD IPS 600nit (NE156UQM-N6A V3.0)

A cracked or dim laptop screen makes every task frustrating—this 15.6-inch UHD IPS panel restores crisp visuals and vivid color. The CSOT NE156UQM-N6A V3.0 delivers 3840x2160 resolution, 600-nit brightness, and 100% sRGB coverage for professional-grade clarity.

Who is it for

Ideal for technicians refurbishing high-end laptops, creators needing accurate color, or anyone replacing a faulty display. Its 40-pin eDP interface fits compatible models with 4-lane embedded DisplayPort.

Main features

• Stunning UHD 3840x2160 resolution on a 15.6-inch IPS panel
• 600 nits brightness with VESA DisplayHDR 600 certification
• Wide color gamut: 100% sRGB, 90% DCI-P3, 1.07 billion colors (8-bit + FRC)
• Anti-glare matte surface reduces reflections in bright environments
• 178° viewing angles and 1000:1 contrast ratio for consistent images
• Fast 25ms response time and 60Hz refresh rate for smooth motion

Specifications

• Brand: 2-POWER
• Model: NE156UQM-N6A V3.0
• Panel manufacturer: CSOT
• Screen size: 15.6 inches
• Resolution: 3840 x 2160 (UHD)
• Panel type: IPS
• Brightness: 600 cd/m²
• Refresh rate: 60 Hz
• Aspect ratio: 16:9
• Backlight: WLED
• Contrast ratio: 1000:1
• Viewing angle: 178° horizontal / 178° vertical
• Surface: Anti-glare (matte)
• Interface: eDP (4 lanes, 40 pins)
• Response time: 25ms (gray-to-gray)
• HDR: VESA DisplayHDR 600
• Color depth: 8-bit + FRC (1.07 billion colors)

Tips

Verify your laptop's display connector (40-pin eDP) and mounting brackets before installation. Handle the panel by its edges to avoid pressure marks. Use an anti-static mat and disconnect the battery before replacement.
