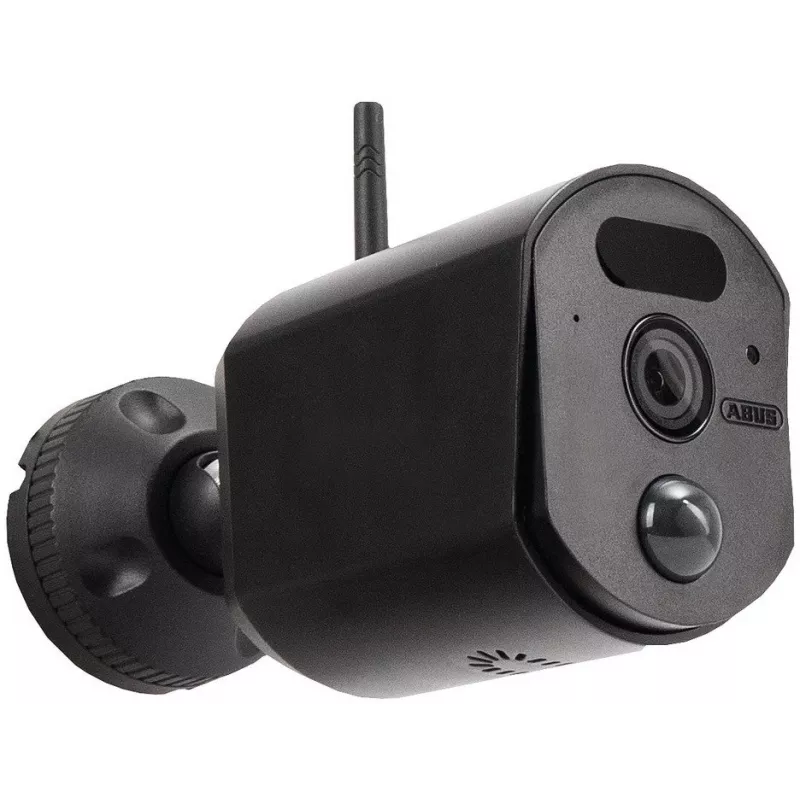

ABUS Security-Center PPDF17520 Cámara IP inalámbrica de exterior, HD 720p, visión nocturna, IP66, soporte de pared

The PPDF17520 stands out as a dedicated add-on camera for the EasyLook BasicSet, expanding your surveillance coverage without the need for additional base stations. Unlike standalone IP cameras that require complex network configuration, this wireless unit pairs directly with the EasyLook system for a streamlined setup. Its 2.4 GHz wireless connection delivers a reliable range of up to 50 meters in open spaces, while the weatherproof IP66 housing ensures dependable operation in outdoor environments.

Highlights

• HD 720p resolution with 25 fps for clear, fluid video
• Built-in night vision up to 10 m for round-the-clock monitoring
• IP66 weatherproof rating for outdoor use in all conditions
• Wireless connectivity (IEEE 802.11b/g/n) with 2.4 GHz band
• MicroSD card slot supporting up to 32 GB for local recording
• Wall or ceiling mountable for flexible installation

In daily use

Mount the PPDF17520 near entrances, driveways, or backyards to capture important activity. The 92° horizontal field of view covers a wide area, reducing blind spots. When light fades, the camera automatically switches to night vision, using infrared LEDs to illuminate the scene up to 10 meters away. The built-in microphone picks up ambient audio, adding context to your video footage. For storage, insert a microSD card (up to 32 GB) to record directly on the camera, or rely on the EasyLook system's recording capabilities. The camera is powered by a 5V DC adapter, so you'll need a nearby outlet or an extension cable for outdoor placement.

Full specifications

• Camera Type: Outdoor Wireless IP Camera
• Resolution: HD 720p (1280 x 720)
• Sensor: 1/4" CMOS
• Lens: 2.8 mm, F2.0
• Horizontal Field of View: 92°
• Night Vision Range: Up to 10 m
• Wireless: Wi-Fi IEEE 802.11b/g/n, 2.4 GHz (2403–2478 MHz)
• Wireless Range: Up to 50 m (line of sight)
• Video Compression: H.264, MJPEG
• Max Frame Rate: 25 fps at 720p
• Audio: Built-in microphone (one-way)
• Storage: MicroSD card slot (up to 32 GB)
• Weather Resistance: IP66
• Power Supply: 5V DC / 1A
• Operating Temperature: -20°C to +50°C
• Mounting: Wall, Ceiling

Final note

As an EasyLook accessory, the PPDF17520 is ideal for users who already own the BasicSet and need to extend their monitoring. Its robust build and simple integration make it a practical choice for home or small business security.
