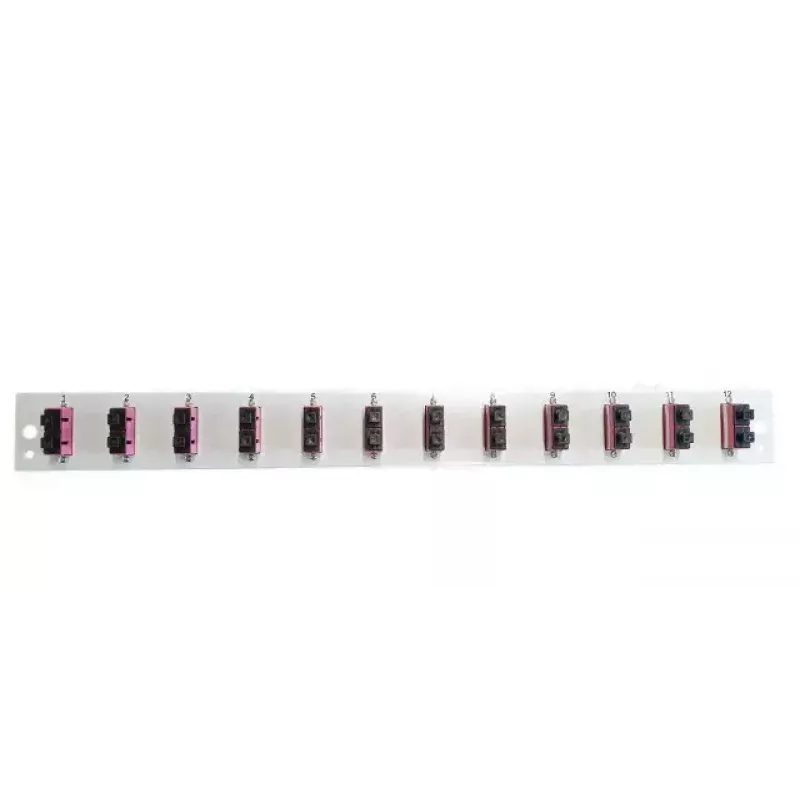

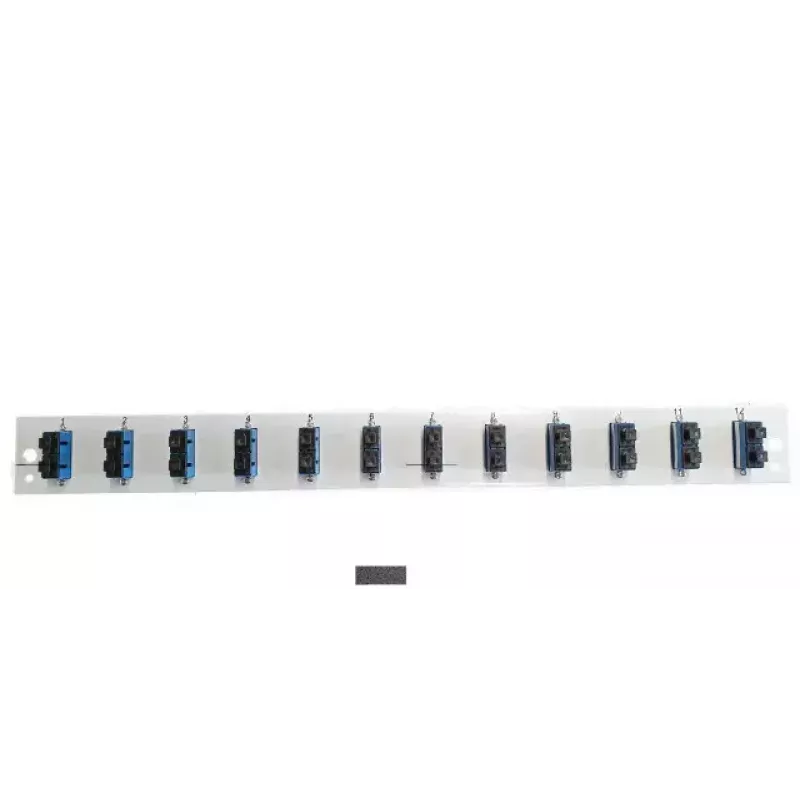

Accesorio para patch panel EFB Elektronik SB-FP-12SC-D-V-OM4 — montaje en rack 1U, 432×13×43,5 mm, gris

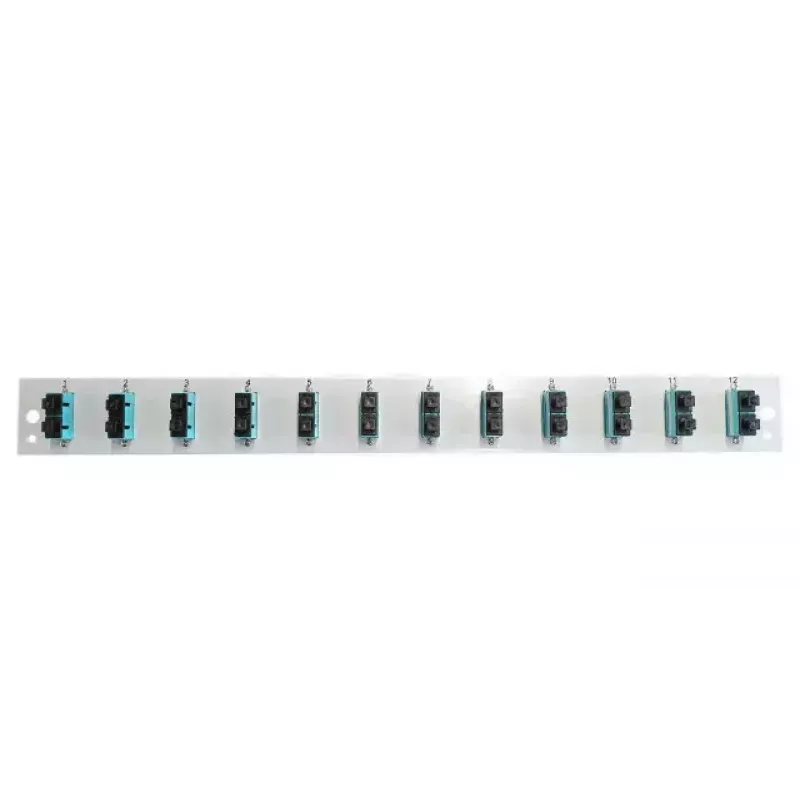

EFB Elektronik SB-FP-12SC-D-V-OM4 is a 1U front panel accessory for 19" splice boxes designed to accept 12 SC duplex adapters. The panel is intended for rack mounting, has a grey finish and compact dimensions (width 432 mm, height 43.5 mm, depth 13 mm). It is compatible with fibre categories OM3, OM4 and OS2 and serves as an interface for SC duplex connections in enclosed splice or distribution boxes.

Advantages

The front panel provides a standardized 19" 1U mounting format for orderly termination and front access to SC duplex connectors. Its grey metal construction ensures a durable mounting surface and a neat appearance in racks. Compatibility with OM3, OM4 and OS2 fibre categories allows use with multimode and singlemode networks. The panel’s dimensions match common rack and splice box installations, simplifying integration.

Suitable for

• Rear or front-access splice boxes requiring SC duplex terminations
• Data centre patching and fibre distribution panels
• Telecommunications racks with 1U available space
• Installations using OM3, OM4 multimode or OS2 singlemode fibres

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: SB-FP-12SC-D-V-OM4
• EAN: 4049759258566
• Rack mounting: 19", 1U
• Adapter type: 12 × SC duplex
• Fibre categories: OM3, OM4, OS2
• Colour: Grey
• Dimensions (W×H×D): 432 × 43.5 × 13 mm

How to use

Install the panel into a standard 19" rack space of 1U height using appropriate rack screws. Fit the SC duplex adapters into the panel cutouts if not pre-installed, then route and secure internal fibre splices or pigtails inside the splice box. Terminate patch cords to the front-facing SC duplex connectors for front-panel access. Ensure proper fibre bend radii and strain relief when routing cables to maintain link performance.

Recommendations

Use this front panel with compatible SC duplex adapters and follow standard fibre handling procedures: avoid sharp bends, keep connectors clean, and verify fibre category matching (OM3/OM4 for multimode, OS2 for singlemode) between patch cords and installed cables.
