Accesorio para patch panel EFB Elektronik SB-FP-S-12SC-D-V-OS2 — montaje en rack 1U, 12 conexiones de fibra óptica SC, 432×13×43,5 mm

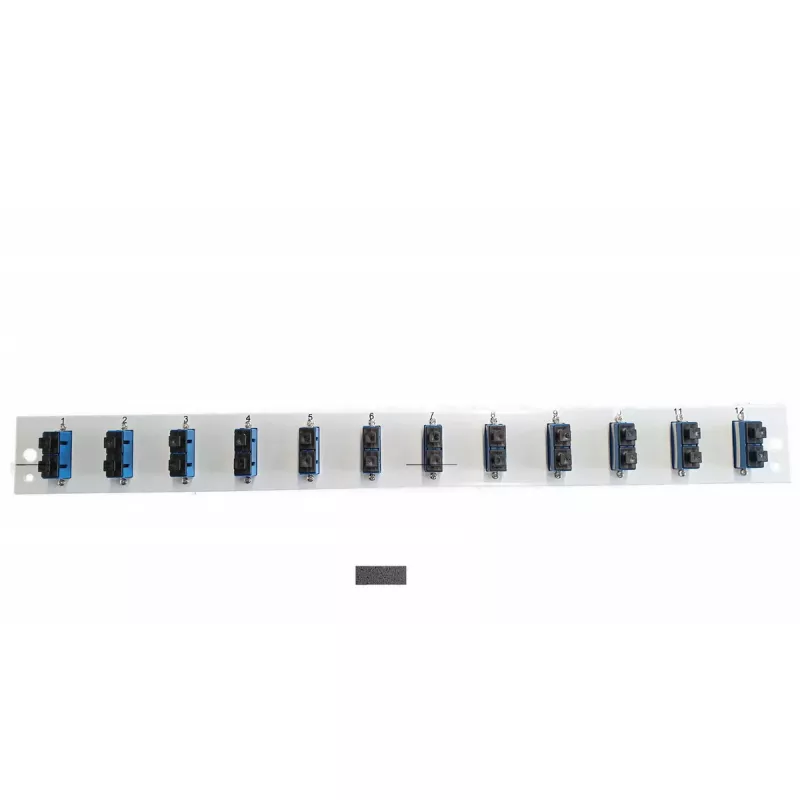

EFB Elektronik SB-FP-S-12SC-D-V-OS2 is a 1U front panel accessory for 19" splice boxes, designed to accommodate 12 SC duplex fiber adapters. With dimensions 432 × 13 × 43.5 mm, it fits standard 1U rack spaces and supports fiber categories OS2, OM3 and OM4 when used with the appropriate adapters, enabling orderly integration of fiber connections into server racks and telecom cabinets.

Advantages

The compact 1U design provides a standardized mounting solution that saves rack space and ensures consistent alignment of SC duplex adapters. The panel accepts twelve SC ports for organized fiber termination, simplifying cable routing and maintenance. Constructed for compatibility with common splice boxes, it supports singlemode (OS2) and multimode (OM3/OM4) deployments depending on installed adapters.

Suitable for

• Rack-mounted fiber patching in server rooms and data centers
• Telecom and network cabinets requiring 12 SC duplex ports
• Integration with 19" splice boxes for fiber termination and management

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: SB-FP-S-12SC-D-V-OS2
• Form factor: 1U rack-mount front panel for 19" splice boxes
• Fiber ports: 12 × SC duplex adapters
• Supported fiber categories: OS2 (singlemode); OM3, OM4 (multimode) via appropriate adapters
• Dimensions (W×D×H): 432 × 13 × 43.5 mm
• EAN: 4049759258696

How to use

Install the panel into a compatible 19" splice box or rack enclosure at a 1U position, securing it with the rack or splice box mounting hardware. Fit SC duplex adapters as required for OS2, OM3 or OM4 connections, then terminate or connect fiber pigtails and patch cords to the mounted adapters. Verify proper fiber alignment and secure cable routing to avoid stress on terminations.

Recommendations

Use the panel with matching SC duplex adapters for the intended fiber type (OS2 for singlemode, OM3/OM4 for multimode). Maintain appropriate bend radius for fibers, label ports clearly, and perform optical testing after installation to confirm link integrity.
