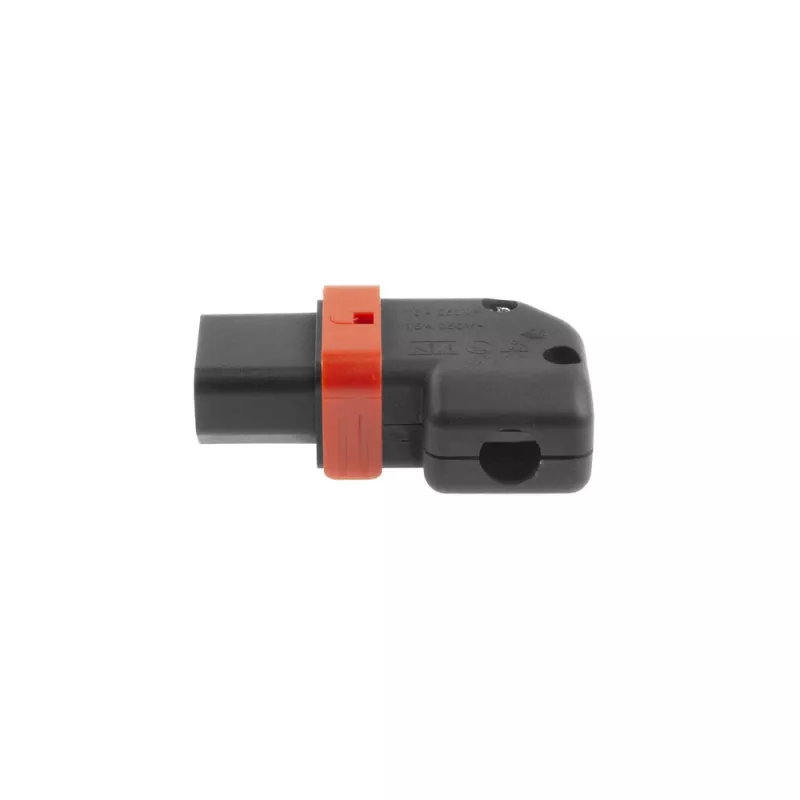

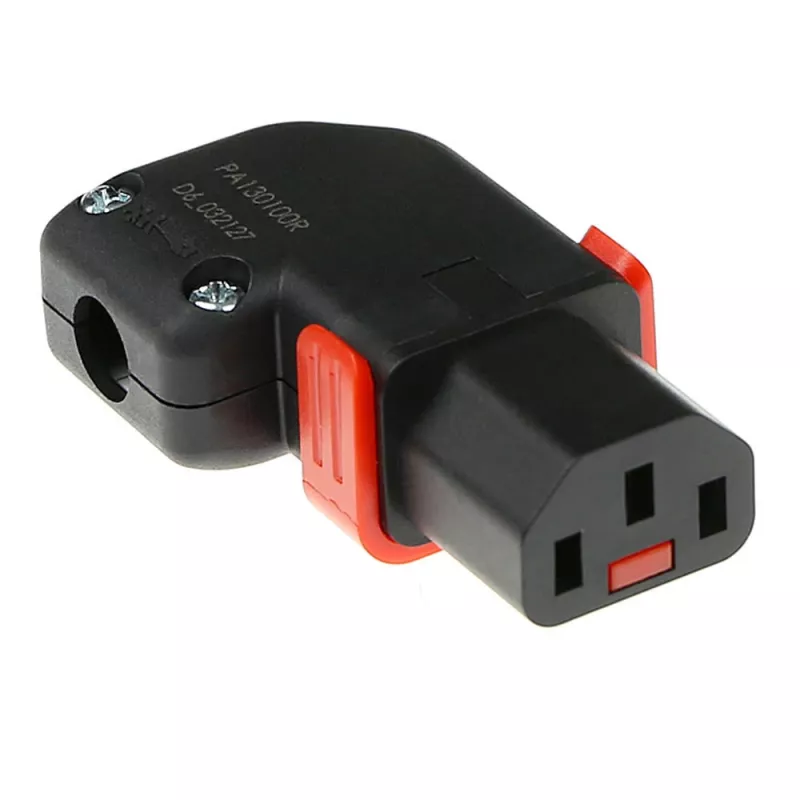

ACT C13 IEC Lock+ conector acodado izquierdo o derecho recableable negro, PA130100RBK

The ACT C13 Connector PA130100RBK is a rewireable IEC Lock+ C13 connector with selectable left or right angled cable exit. It is designed to secure and retain power cables in equipment that is sensitive to vibration or where accidental disconnection must be prevented. The connector is available in black with red accents and is compatible with standard female C13 power inlets.

Advantages

This rewireable C13 IEC Lock+ connector allows technicians to choose left or right angled cabling for improved routing and space management. The locking mechanism prevents accidental cable removal and enhances connection stability in rack-mounted or portable equipment. Being rewireable, it supports field termination and repair without replacing the entire cable assembly.

Suitable for

• Server racks and data center equipment
• Audio/visual gear and broadcast equipment
• Medical devices and laboratory instruments sensitive to vibration
• Portable equipment and machinery with limited space for cable routing

Key specifications

• Brand: ACT
• Model / MPN: SFO66A (PA130100RBK)
• Type: Rewireable IEC Lock+ C13 connector
• Cable exit: Selectable left or right angled
• Color: Black with red accents
• Compatibility: Female IEC C13 inlet
• EAN: 8716065398366

How to use

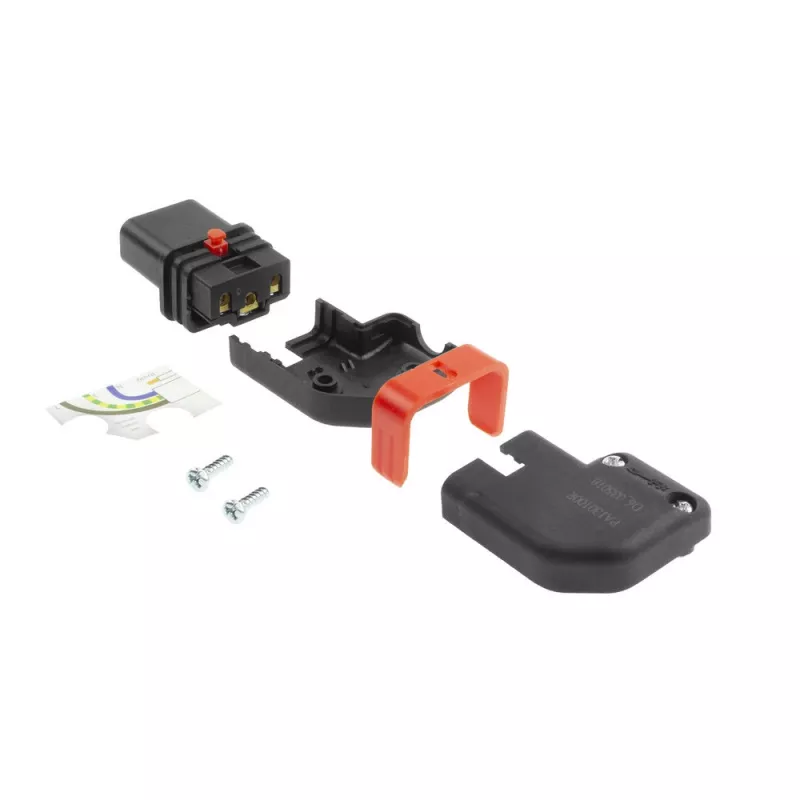

Strip the cable conductors according to the manufacturer’s instructions and insert them into the rewireable terminals of the connector. Assemble the housing and secure the locking elements so the cable exits at the chosen left or right angle. Insert the assembled connector into a compatible IEC C13 inlet and engage the locking mechanism to prevent accidental removal.

Recommendations

Use the ACT C13 IEC Lock+ connector when a secure, vibration-resistant mains connection is required. Verify conductor sizes and secure terminations during installation. Do not modify the locking mechanism; replace the connector if any damage is observed.
