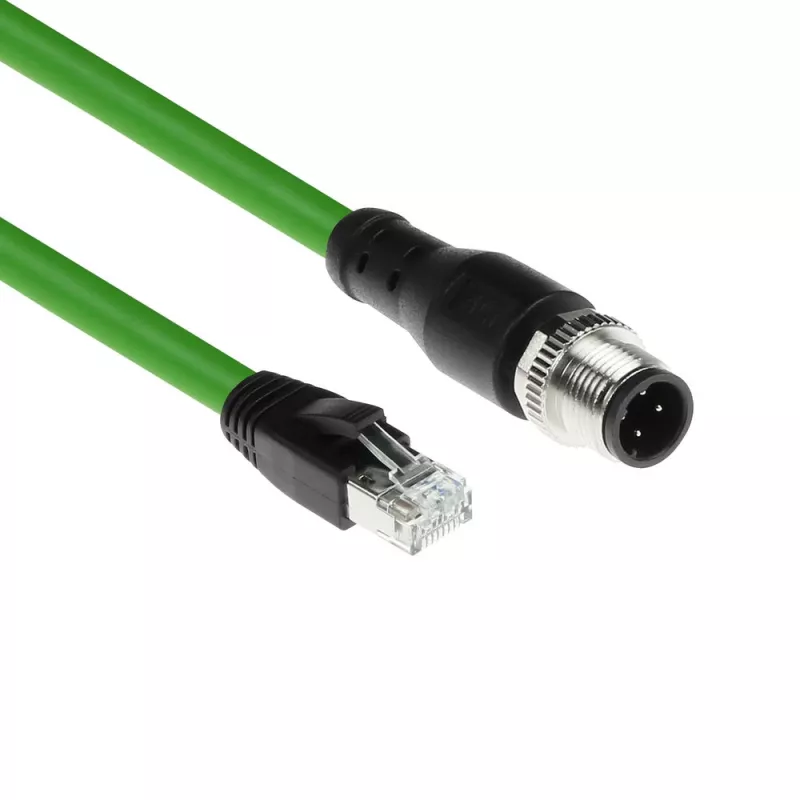

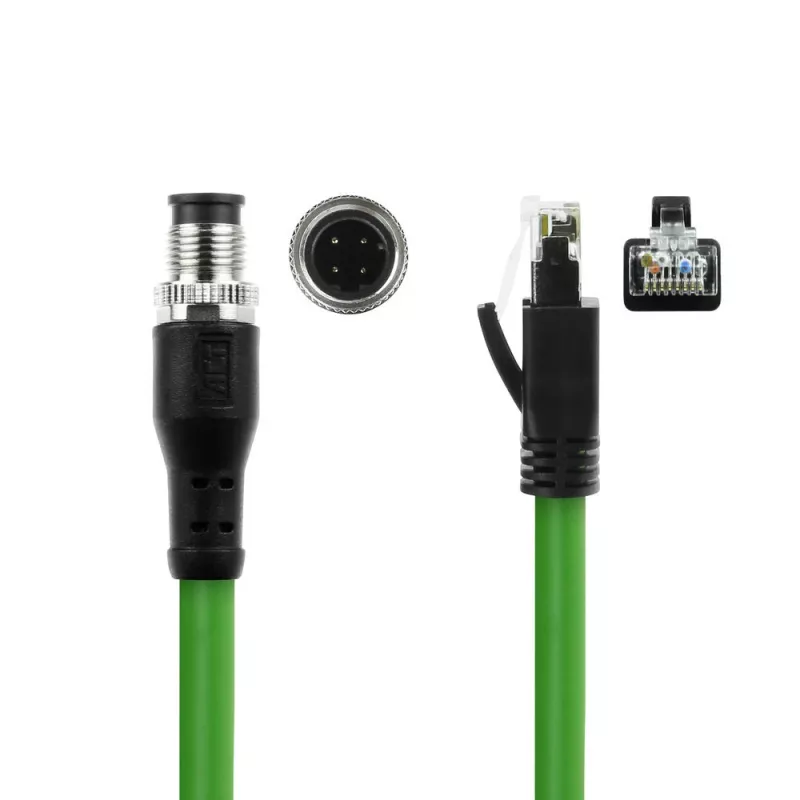

ACT Industrial Cable de sensor de 1,50 metros M12D 4 polos conector macho acodado a conector macho RJ45, cable TPE Superflex Xtreme, apantallado

The ACT SC4406 industrial sensor cable is a 1.5 m networking accessory designed for demanding environments. It features a TPE (thermoplastic elastomer) outer sheath and overmoulded TPE connectors with IP67 protection, providing resistance to dust, water and mechanical stress such as repeated movement in a cable chain. The cable uses Superflex Xtreme construction: each conductor consists of 19 copper strands forming an AWG22-equivalent core, giving greater flexibility than standard AWG24/7 patch cables. The cable is UL certified for safety and quality.

Advantages

The TPE jacket and overmoulded TPE connectors increase durability against abrasion, oil and mechanical bending while maintaining IP67 ingress protection. Superflex Xtreme stranded conductors (19 strands per core) provide enhanced flexibility for dynamic applications. The 1.5 m length offers convenient reach for typical industrial connections, and UL certification confirms compliance with recognized safety standards.

Suitable for

Key specifications

How to use

Connect the ACT SC4406 between compatible industrial sensors, actuators or networking devices using the overmoulded connectors. Route the cable following the machine manufacturer’s guidelines, avoiding sharp bends beyond the recommended bending radius and protecting connections from excessive tensile loads. Ensure both mating connectors are clean and properly seated to maintain IP67 protection at the connection points.

Recommendations

For reliable long-term operation, install the cable in cable carriers or guided trays when used in continuous motion applications, avoid twisting and maintain proper strain relief. Periodically inspect the sheath and connectors for wear, and replace the cable if the TPE jacket or overmoulding shows damage that could compromise IP67 protection.
