Adaptador coaxial DELOCK tipo N macho 20×30×20 mm (modelo 91766)

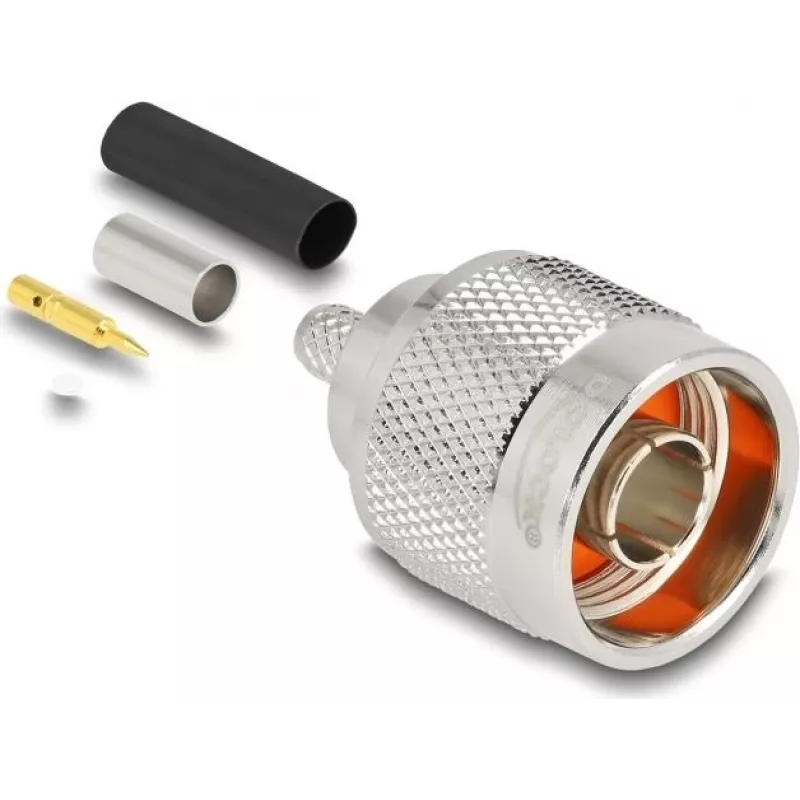

DELOCK 91766 is a compact coaxial N-type male adapter designed for radio frequency and coaxial cabling. With threaded N-type connection and dimensions of 20 × 30 × 20 mm, this single-piece adapter is supplied in a polybag and provides a standardized interface for antennas, test equipment and network devices to ensure consistent 50 Ω signal transmission.

Advantages

The N-type male adapter offers a robust threaded connection with 50 Ω impedance for stable RF performance. Its compact size (20 × 30 × 20 mm) and silver finish make it suitable for tight installations, while being supplied as a single unit simplifies replacement and inventory handling.

Suitable for

Key specifications

How to use

Align the N-type male thread with the corresponding female connector and engage by hand, then tighten securely by finger or with a suitable torque wrench to the manufacturer’s recommended torque for N-type connectors. Use the supplied shrink tube where required to protect and strain-relieve the cable entry, ensuring correct orientation and electrical contact before finalizing the connection.

Recommendations

For best RF performance, avoid over-tightening the N-type connection and ensure connectors are clean and free of debris. Use the shrink tube to provide mechanical protection and weather sealing when installations are exposed to the environment.
