Conector coaxial DeLOCK 89692

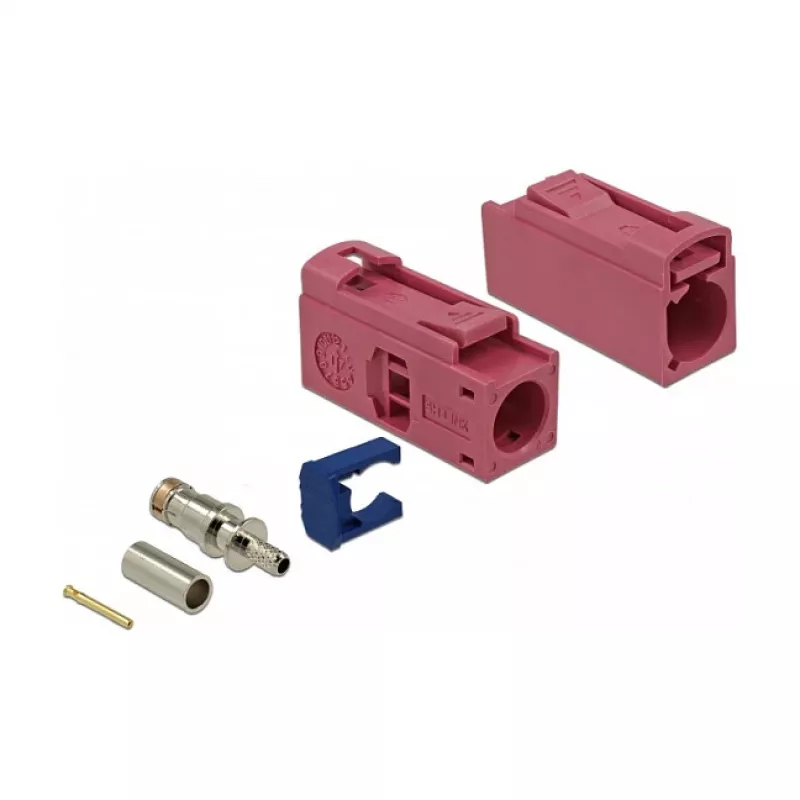

The DeLOCK 89692 coaxial connector is a compact FAKRA H male connector with gold-plated contacts designed for reliable RF signal transmission. With dimensions of 13.8 mm (W) × 25 mm (D) × 9.5 mm (H) and supplied in a polybag as a single unit, this connector is intended for use where space is limited and consistent electrical contact is required.

Advantages

Gold-plated contacts improve conductivity and corrosion resistance, while the FAKRA H form factor ensures compatibility with corresponding FAKRA H female connectors. Its small footprint allows installation in confined spaces and automotive or telecom RF assemblies. The product is supplied as an individual unit in a protective polybag.

Suitable for

Key specifications

How to use

Align the DeLOCK 89692 FAKRA H male connector with the matching female receptacle and press until it engages securely. Ensure the mating connector is the correct FAKRA H type to avoid improper fit. When routing cables, avoid sharp bends and maintain strain relief to preserve contact integrity and signal performance.

Recommendations

Before installation, verify connector polarity and mating type. For long-term reliability, inspect the gold-plated contacts for contamination and clean with appropriate contact cleaner if necessary. Store unused connectors in their polybag to protect against dust and mechanical damage.
