Adaptador eléctrico AS Schwabe MIXO 61520 — conector macho CEE 3x400V a 3x230V

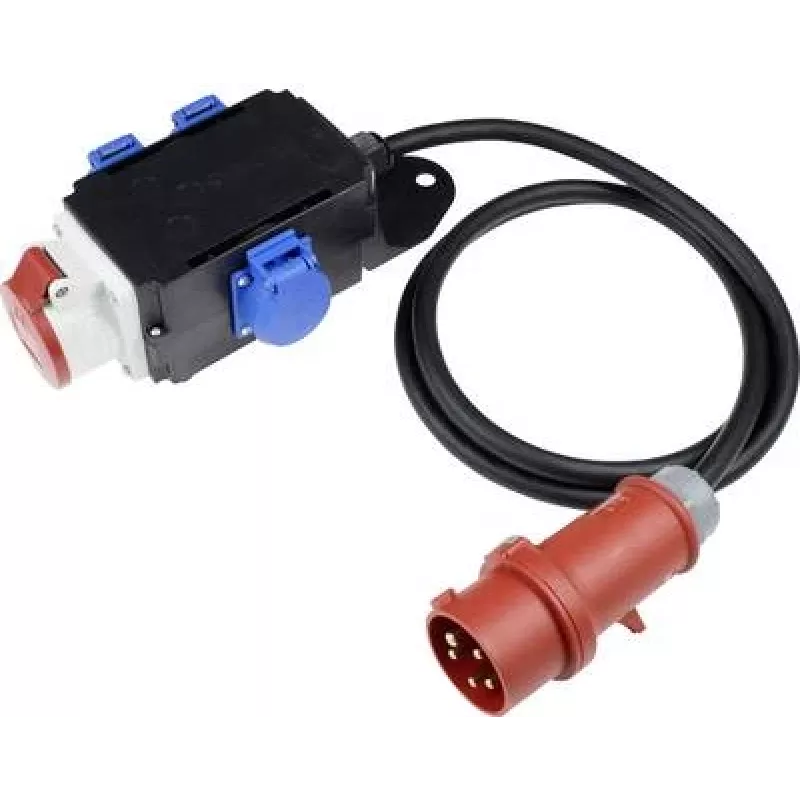

AS Schwabe MIXO 61520 — CEE plug 3x400V to 3x230V is an electrical adapter that converts a three-phase 400V CEE supply into three separate 230V outputs. The adapter enables connection of single-phase devices to a three-phase source by providing individual 230V sockets fed from each phase. It is intended for temporary or mobile use where distribution from a 400V supply to standard 230V equipment is required, for example on construction sites, at events, or for equipment testing and maintenance.

Advantages

The adapter offers a compact and practical solution for deriving single-phase 230V outlets from a three-phase 400V CEE inlet without the need for complex rewiring. It simplifies on-site power distribution, reduces the number of separate converters required, and maintains compatibility with standard 230V plugs. The build is intended for temporary connection scenarios and supports straightforward installation and removal.

Suitable for

Key specifications

How to use

Connect the adapter to a compatible 3x400V CEE supply socket ensuring the supply is switched off before making connections. After secure insertion, switch on the supply and plug single-phase equipment into the 230V outlets. Ensure that the total load on each 230V output does not exceed the safe current rating of the supply and that the three-phase source is suitable for feeding separate single-phase loads. Disconnect the adapter by switching off the supply first and then removing the plug.

Recommendations

Use the adapter only for temporary or mobile applications and avoid permanent installation. Verify compatibility of connected equipment with single-phase 230V and respect current limits for each output. Ensure all connections are made in accordance with local electrical regulations and, if in doubt, consult a qualified electrician.
