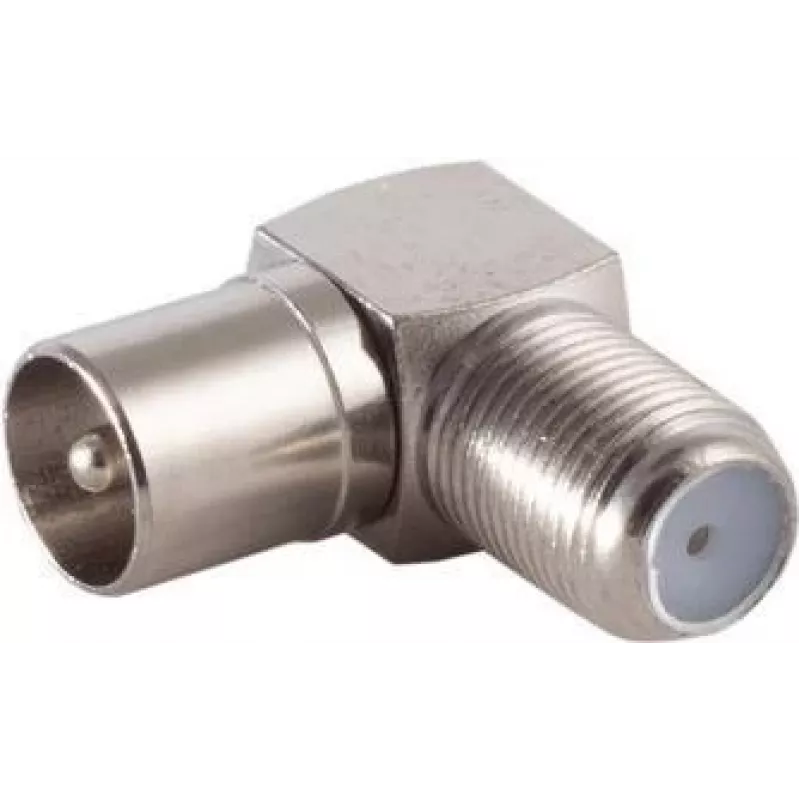

Adaptador en ángulo IEC ShiverPeaks 85209 – conector hembra F a adaptador en ángulo IEC

ShiverPeaks IEC Angle Adapter 85209 converts an F-type female socket into a right-angle IEC-style connector, enabling a change of connector orientation where space is limited. The adapter is intended for AV installations, television sets and set-top boxes that need a compact cable routing solution. It provides a low-profile connection without altering signal type, allowing existing F coaxial outlets to interface with equipment designed for an IEC right-angle input.

Advantages

The adapter offers a compact right-angle design that reduces strain on cables and connectors in tight spaces. It maintains a standard coaxial signal path while providing a stable mechanical connection, helping to prevent accidental disconnection. Its build is aimed at easy installation and improved cable management behind AV furniture and wall-mounted devices.

Suitable for

• TVs and flat-panel displays with limited rear clearance
• Set-top boxes and AV receivers requiring right-angle connections
• Tight equipment racks, cabinets and behind-wall cable runs
• Temporary or permanent installations where connector orientation must change

Key specifications

• Input connector: F-type female (coaxial)
• Output connector: IEC-style right-angle male/female interface for coaxial applications
• Orientation: 90-degree right-angle form factor to reduce rear clearance
• Compatibility: designed to adapt standard F coaxial signals to an IEC right-angle connection without signal conversion
• Construction: compact housing intended for low-profile installations

How to use

Align the F-type coaxial cable or outlet with the adapter's F-type female side and tighten by hand or with minimal tool assistance to secure the connection. Position the right-angle IEC-style connector toward the device input, ensuring the adapter sits flush and does not place undue stress on the cable or device connector. After installation, verify signal continuity and device operation to confirm a correct connection.

Recommendations

For best results, use the adapter in installations where rear clearance is restricted and avoid overtightening metal connectors. Confirm that the connected equipment accepts the IEC-style right-angle interface to ensure mechanical compatibility. If frequent reconnections are expected, consider adding strain relief or securing cables to prevent wear at the adapter junction.
