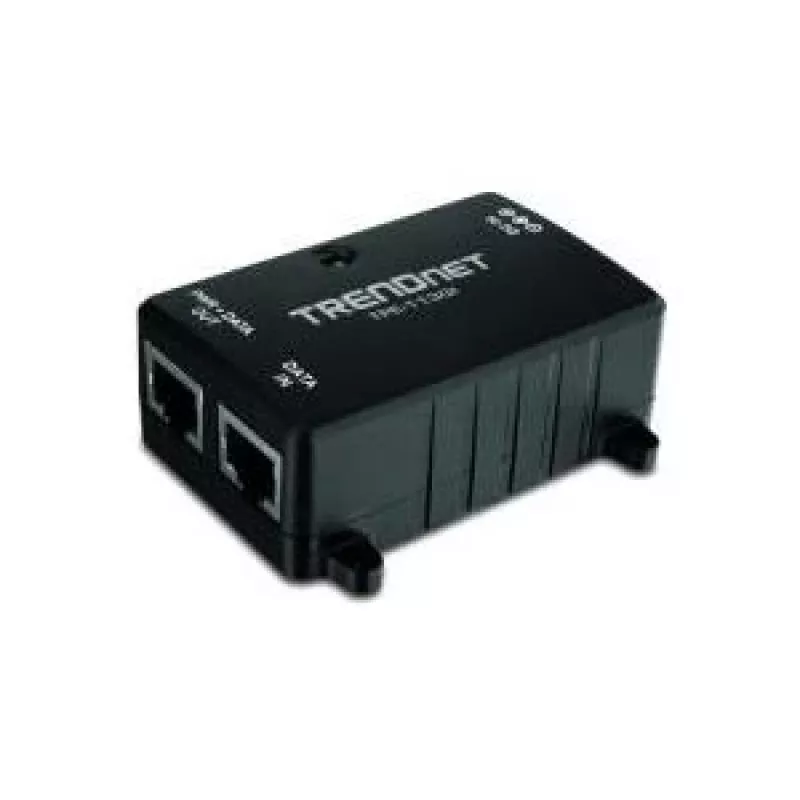

Adaptador PoE Trendnet TPE-113GI

The TRENDnet TPE-113GI Gigabit Power over Ethernet Injector combines electrical power with a Gigabit network connection to provide a Gigabit PoE output. Connect the injector to a non-PoE switch and run a single Ethernet cable up to 100 meters (328 ft) to power and connect PoE devices such as access points and IP cameras. The compact adapter (70 x 45 x 25 mm, 45 g) supports 10/100/1000 Mbps data rates and a 48 V PoE output, and includes short-circuit protection for connected equipment.

Advantages

The PoE adapter enables Gigabit-speed data and 48 V power delivery over a single cable without replacing an existing non-PoE switch, reducing installation and equipment costs. Its small form factor and low weight simplify placement in constrained locations. CE and FCC certifications indicate compliance with common safety and EMC standards. Built-in short-circuit protection helps safeguard networked devices.

Suitable for

• Powering and connecting IP cameras up to 100 m from a non-PoE switch
• Supplying wireless access points where a PoE switch is not available
• Extending network and power to remote PoE devices using a single Cat5e/Cat6 cable

Key specifications

• Model: TPE-113GI
• Data rates: 10/100/1000 Mbps (Gigabit Ethernet)
• PoE voltage: 48 V
• Ethernet LAN (RJ-45) ports: 2
• Dimensions: 70 x 45 x 25 mm
• Weight: 0.045 kg
• Maximum cable length to powered device: 100 m (328 ft)
• Certifications: CE, FCC

How to use

Connect the injector's data input port to an available port on a non-PoE switch. Plug the injector's PoE output port into the Ethernet cable that runs to the PoE device (for example, an IP camera or access point) located up to 100 meters away. Ensure the PoE device supports 48 V PoE. Provide the injector with its required external power source according to TRENDnet's instructions and verify link/activity LEDs to confirm connection and power delivery.

Recommendations

Use a suitable Cat5e or Cat6 cable for Gigabit performance and keep cable runs within 100 meters. Verify that the powered device accepts 48 V PoE and check installation site for adequate ventilation. Avoid connecting multiple PoE injectors to a single device unless the device supports multiple inputs.
