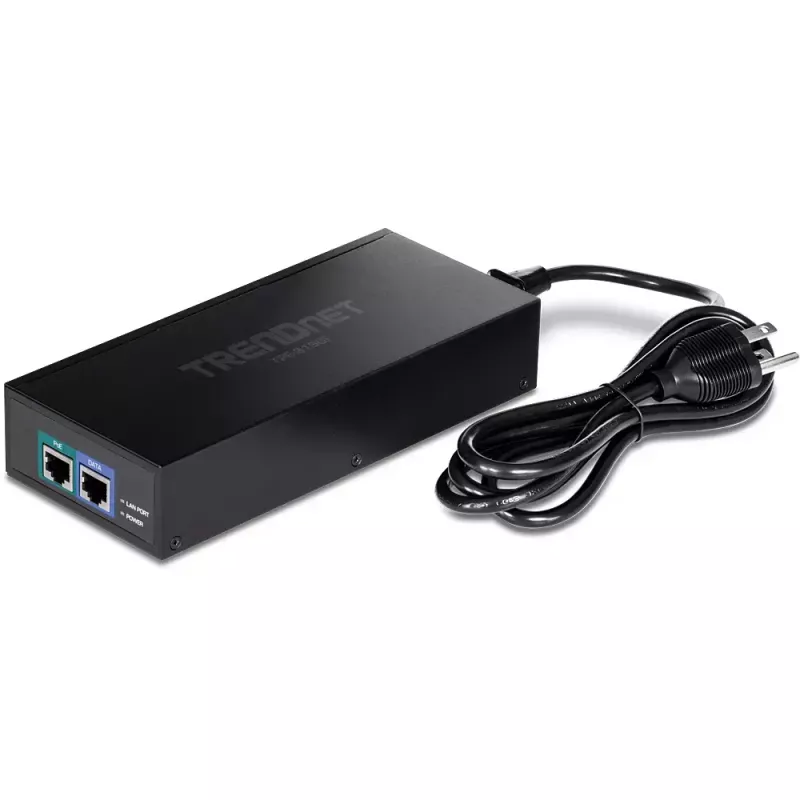

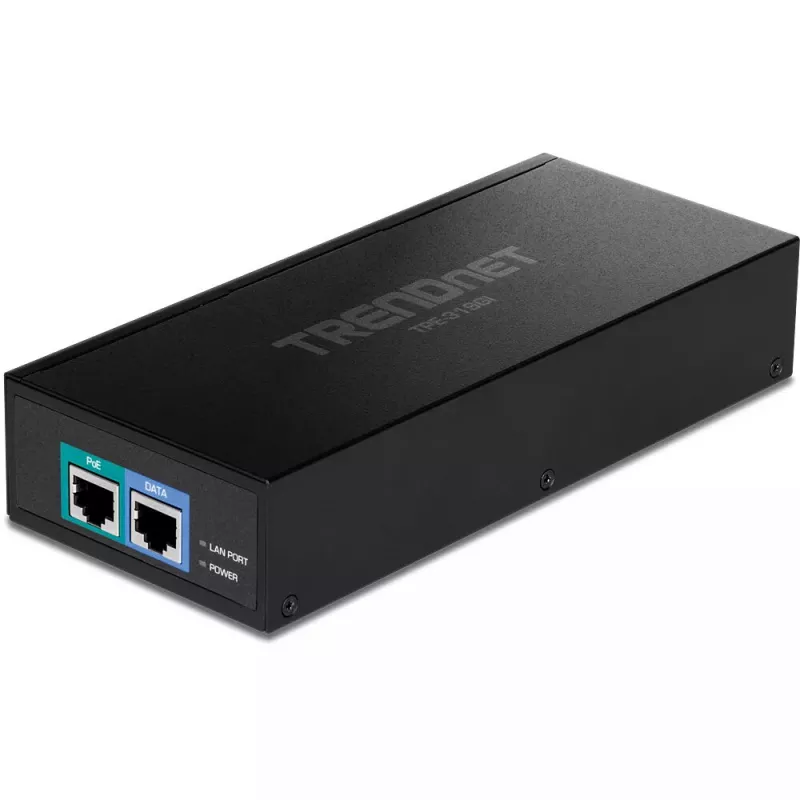

Trendnet TPE-319GI Inyector PoE++ 10G 10 Gigabit Ethernet Negro

TRENDnet TPE-319GI is a 10G PoE++ injector that combines electrical power with a 10GBASE-T network connection to deliver data and up to 90W of PoE power over a single Ethernet cable. Designed to work with non-PoE switches, the injector provides 10 Gigabit Ethernet speeds over Cat6a or better cabling and supports IEEE PoE, PoE+ and PoE++ powered devices.

Advantages

The TPE-319GI auto-senses and supplies the correct wattage for connected devices, supporting PoE (15.4W), PoE+ (30W) and PoE++ (90W). It features a 10GBASE-T RJ-45 port for up to 10 Gbps throughput and a metal, wall-mountable enclosure for flexible installation. The injector extends power and data up to 100 meters (328 ft.) over suitable cabling, enabling deployment of high-power devices without replacing existing network switches.

Suitable for

• Wireless access points requiring high PoE power
• High-resolution IP cameras and PTZ cameras
• VoIP phone systems with PoE support
• IPTV decoders and media devices
• Access control panels and other powered network devices

Key specifications

• Model: TRENDnet TPE-319GI

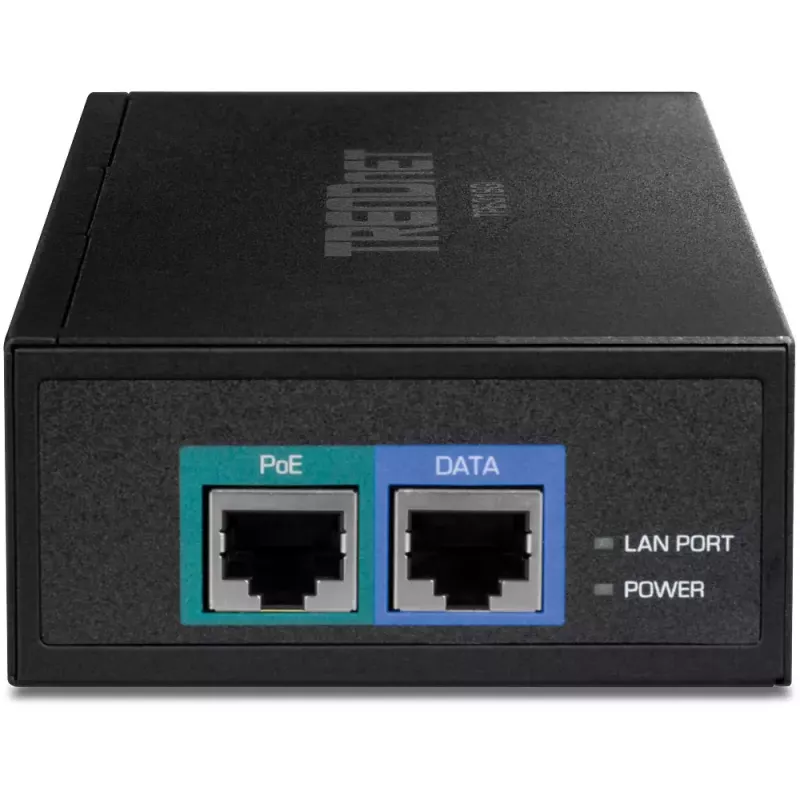

• Port type: 10GBASE-T RJ-45
• Data rate: Up to 10 Gbps over Cat6a or better
• PoE support: PoE (15.4W), PoE+ (30W), PoE++ (90W)
• Maximum PoE budget: 90 W
• Power consumption (device): 0.7 W (typical)

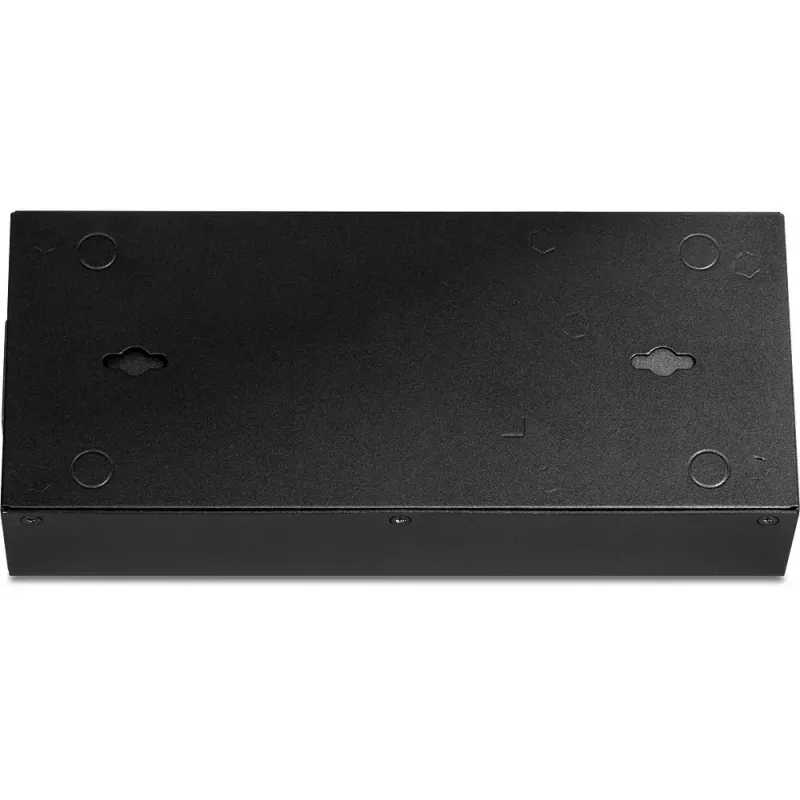

• Mounting: Wall-mountable, metal enclosure
• Cable distance: Up to 100 m (328 ft.) over Cat6a or better
• Color: Black
• Weight: 0.672 kg

How to use

Connect the injector’s data input port to a non-PoE network switch using an Ethernet cable, then connect the injector’s PoE output port to your PoE device using Cat6a or better cabling. Ensure total device power requirements do not exceed the injector’s 90W PoE budget. Place the injector in a location suitable for wall mounting and secure it using appropriate screws and anchors. Verify link and power indicators to confirm the device is supplying power and network connectivity.

Recommendations

Use Cat6a or better cabling for full 10G performance and power delivery. Check combined power draw of connected devices to remain within the 90W budget. Install in a ventilated area and follow local electrical regulations for PoE installations.
