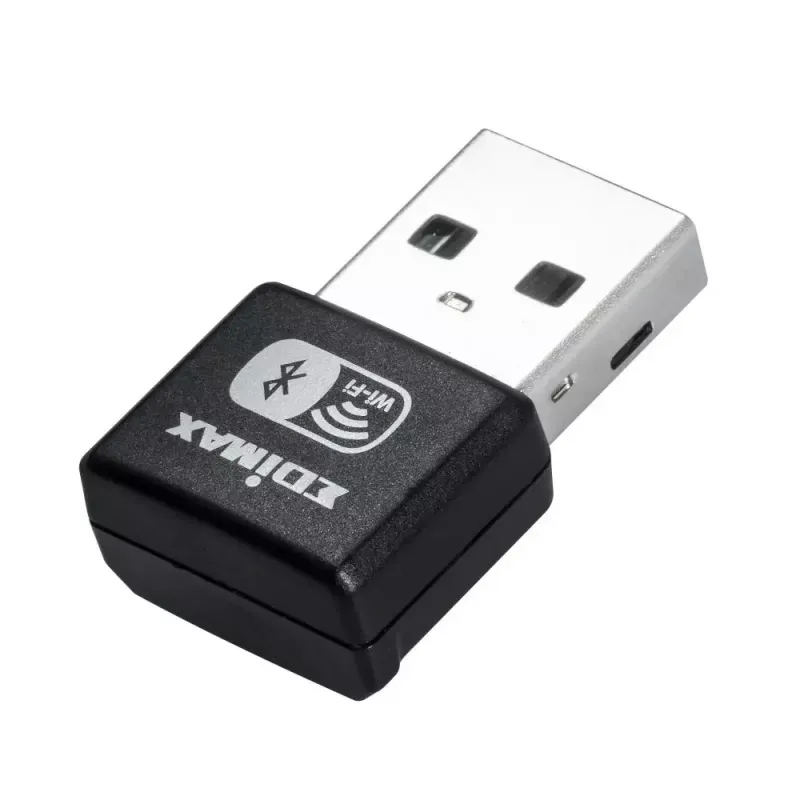

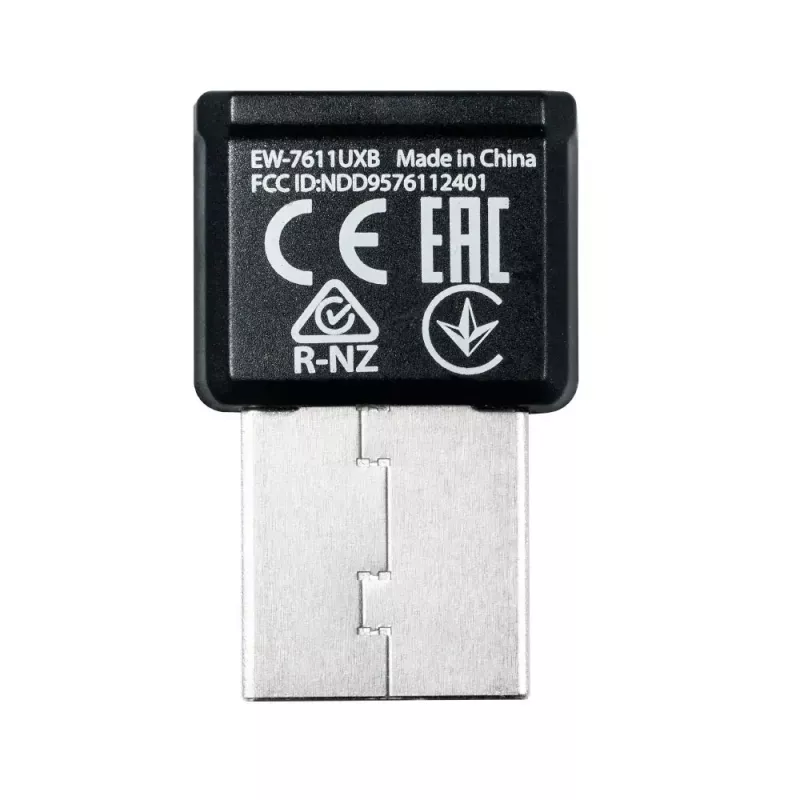

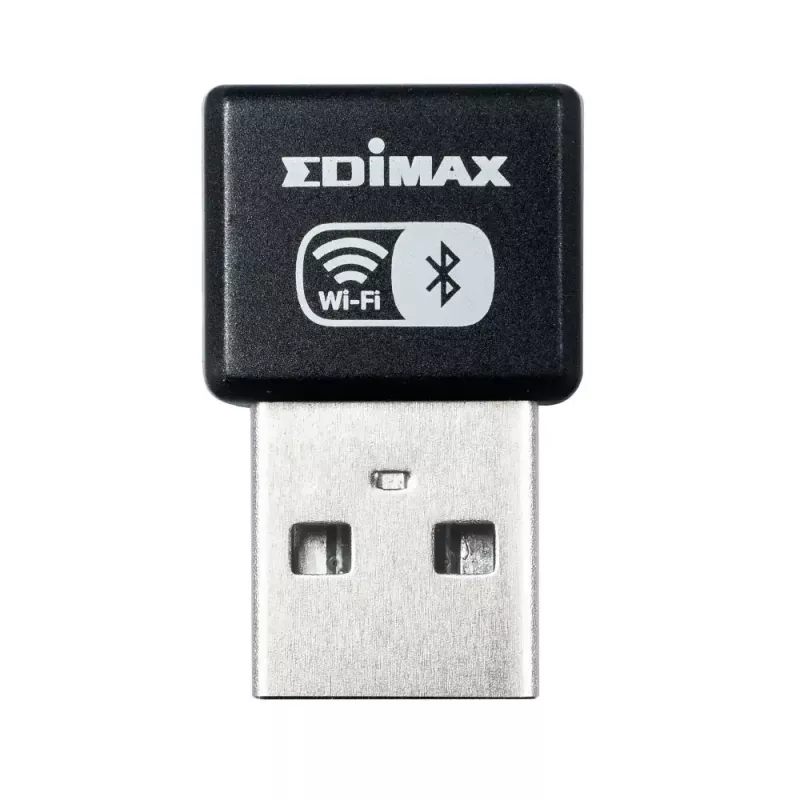

Adaptador USB WLAN Edimax EW-7611UXB, tarjeta de red USB inalámbrica, 887 Mbit/s

EDIMAX EW-7611UXB is a compact USB WLAN adapter that adds wireless connectivity to desktops and laptops. The adapter supports dual-band Wi‑Fi 6 performance with a combined data rate up to 887 Mbit/s and integrates Bluetooth 5.3, enabling both high-speed wireless networking and short-range device connections from a single mini USB dongle. Its small form factor is intended for permanent USB installation without obstructing adjacent ports.

Advantages

The adapter combines Wi‑Fi 6 (AX) features — including OFDMA and MU‑MIMO — with Bluetooth 5.3 in one device, providing efficient throughput, lower latency and improved multi-device handling. Advanced security standards such as WPA3 and legacy modes ensure broad compatibility with secured networks. Energy‑saving Bluetooth dual‑mode (Classic and Low Energy) and smart channel management help maintain stable connections while reducing power consumption on host systems.

Suitable for

• Adding wireless internet access to desktop PCs and older laptops via a USB port
• Home streaming and media playback where improved Wi‑Fi throughput and lower latency are beneficial
• Connecting Bluetooth peripherals such as headsets, mice, keyboards and IoT sensors
• Environments requiring modern Wi‑Fi security (WPA3) and backward compatibility with earlier Wi‑Fi standards

When it may not be suitable

This compact USB adapter is designed for general consumer and office use; it is not intended as an enterprise-class access point or a replacement for integrated high-gain antennas when maximum wireless range is required. Devices that need specialized drivers for non-supported operating systems may not achieve full functionality.

Key specifications

• Connectivity: Wireless (Wi‑Fi and Bluetooth)
• Host interface: USB (mini USB dongle form factor, for USB ports)
• Maximum data transfer rate: up to 887 Mbit/s
• Wireless standards: Wi‑Fi 6 (backward compatible with Wi‑Fi 5/4)
• Bluetooth version: Bluetooth 5.3 with Classic and Low Energy support
• Performance features: OFDMA, MU‑MIMO, Channel Selection Algorithm
• Security: WPA3‑Personal, WPA3‑Enterprise, WPA2, WPA, WEP, 802.1x
• Weight: 0.003 kg

How to use

Plug the EDIMAX EW-7611UXB into an available USB port on your desktop or laptop. On supported Windows systems the device may install drivers automatically; if not, install drivers provided by EDIMAX or available from the manufacturer’s download site. Once drivers are installed, select the desired Wi‑Fi network and enter credentials, or pair Bluetooth peripherals through the operating system’s Bluetooth settings. Leave the adapter inserted for continuous connectivity or remove when transport is required.

What to consider before purchase

• Confirm your computer has an available USB port and supports the necessary drivers (Windows or Linux compatibility).
• Check expected wireless range and placement — the small dongle has limited antenna gain compared with external antennas.
• Verify that your network environment and devices will benefit from Wi‑Fi 6 and Bluetooth 5.3 features.

Recommendations

For best performance position the host device where the adapter has a clear line of sight to the wireless router and avoid close metallic obstructions. Keep system drivers updated and use WPA3 where available to maintain security. For extended range or high‑interference environments consider a USB extension cable to position the adapter away from the PC chassis.
