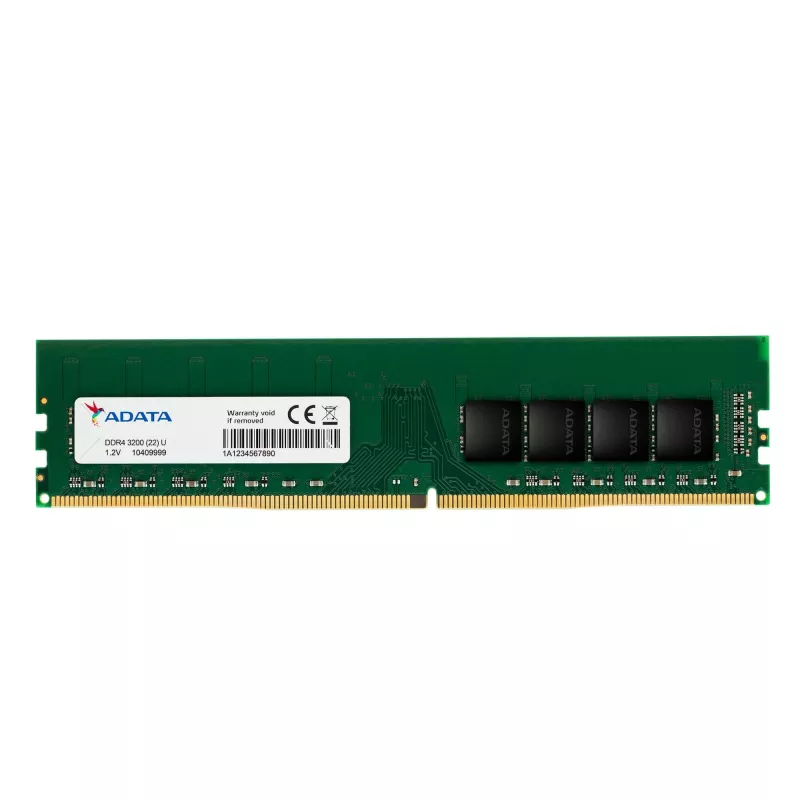

ADATA Premier - 32 GB - 1 x 32 GB - DDR4 - 3200 MHz - DIMM de 288 pines

ADATA Premier DDR4 32GB 3200MHz (AD4U320032G22-SGN) is a 288-pin unbuffered DIMM memory module for desktop PCs and servers. It operates at 3200 MHz with CAS latency 22 and uses DDR4 technology at a reduced voltage of 1.2 V to improve power efficiency while providing a theoretical transfer bandwidth up to 25.6 GB/s. All chips comply with JEDEC and RoHS standards to ensure compatibility, stability and environmental compliance.

Advantages

The module offers increased memory capacity (32 GB) and higher transfer rates compared with DDR3, while lowering operating voltage to 1.2 V for up to approximately 20% power savings versus older standards. Its 288-pin DIMM form factor ensures wide compatibility with modern Intel and AMD platforms, and JEDEC/RoHS-tested components provide consistent performance and reliability.

Suitable for

• Upgrading desktop PCs for multitasking and memory-intensive applications
• Workstations and home servers requiring larger RAM capacity
• Intel- and AMD-based motherboards that support DDR4 288-pin DIMM modules

Key specifications

• Capacity: 32 GB
• Type: DDR4
• Speed: 3200 MHz
• CAS Latency: CL22
• Form factor: 288-pin DIMM (unbuffered)
• Operating voltage: 1.2 V
• MPN: AD4U320032G22-SGN
• EAN: 4711085933485

How to use

Power off the computer and disconnect it from the power source. Open the chassis according to the system manual, locate the appropriate DDR4 288-pin DIMM slots on the motherboard, and align the module notch with the slot key. Firmly press the module into the slot until the retention clips engage. Close the chassis, reconnect power, and start the system. Verify that the BIOS/UEFI recognizes the new 32 GB module and that the memory frequency is set to or compatible with 3200 MHz; adjust settings if necessary.

Recommendations

Install modules in matched pairs or according to the motherboard’s memory channel configuration for optimal performance. Consult your motherboard manual for supported memory speeds, maximum capacity, and any required BIOS/UEFI updates before installation.
