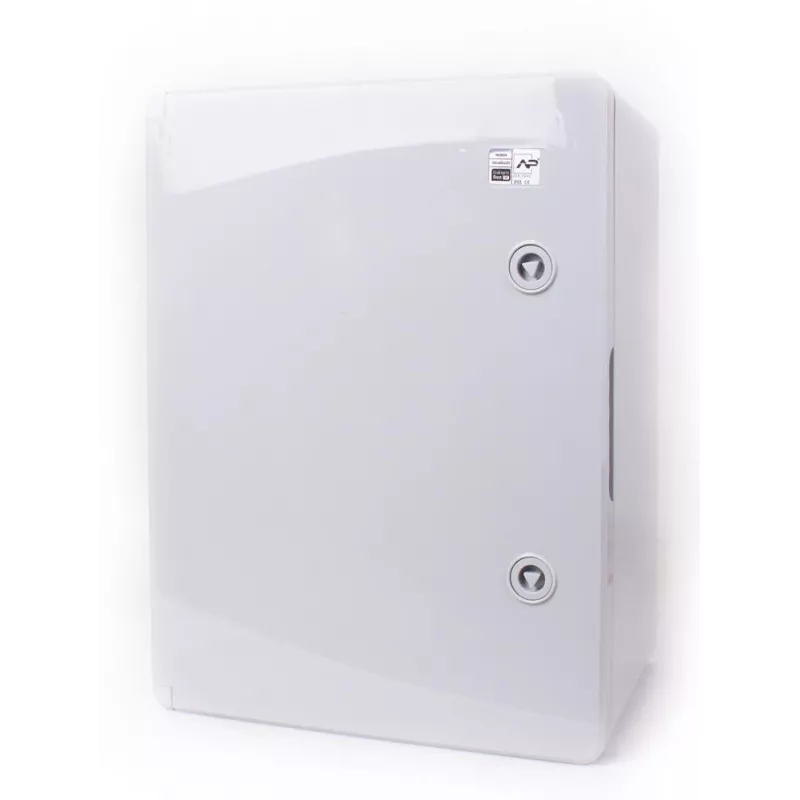

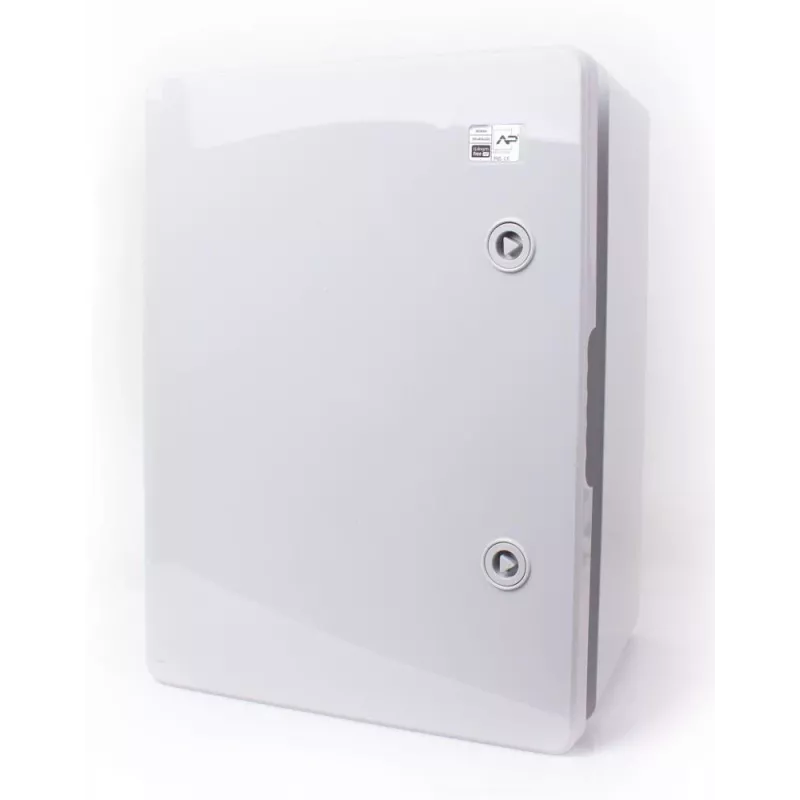

ADELID OP300400220 caja eléctrica ABS IP65 300x400x220mm caja de distribución para montaje en pared

This ADELID enclosure is a robust and weatherproof solution for protecting electrical connections and distribution equipment. Its compact 300x400x220 mm footprint makes it ideal for residential, commercial, and light industrial installations.

Highlights

• IP65 rated protection against dust and water jets
• Made from halogen-free, self-extinguishing ABS with UL94-V0 rating
• IK08 impact resistance for demanding environments
• Wall-mountable design with opaque, screw-fastened cover
• Operating temperature range from -25°C to +70°C
• UV resistant for reliable outdoor use

In daily use

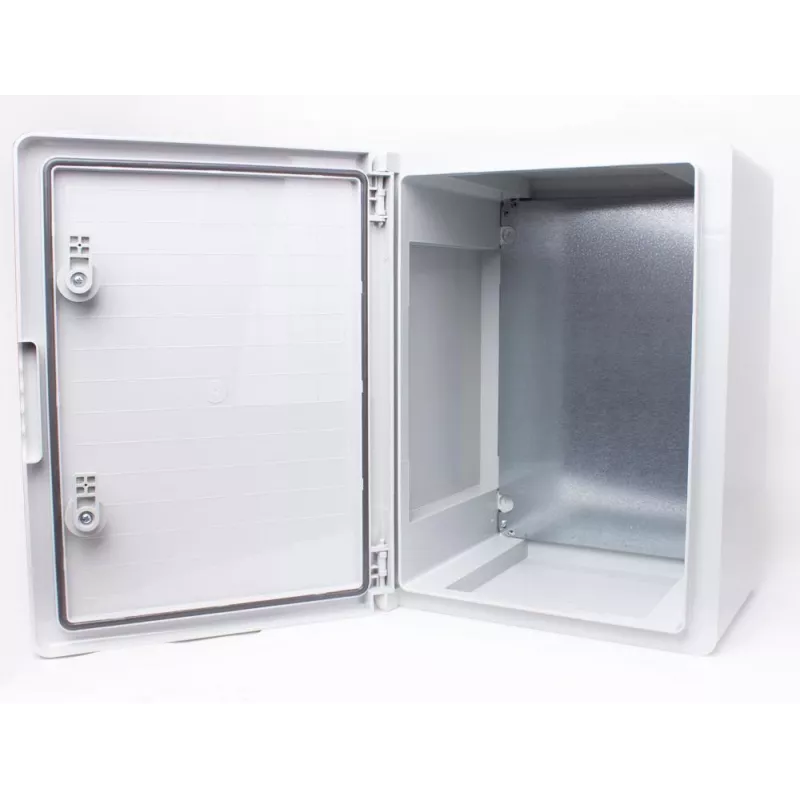

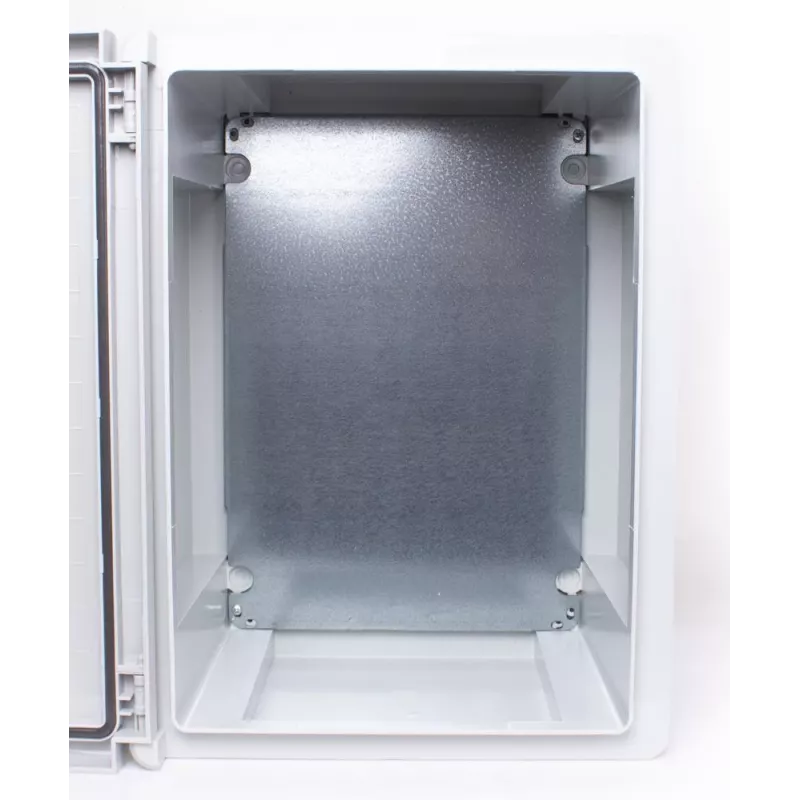

This electrical enclosure is designed to keep wiring and components safe in challenging conditions. The IP65 sealing prevents ingress of dust and low-pressure water jets, while the robust ABS housing withstands impact and UV exposure. Inside, there is ample space for mounting rails, DIN rails, or terminal blocks (mounting plate sold separately). The screw-fastened cover ensures secure closure and simple access for maintenance.

Full specifications

• Product type: Electrical enclosure / distribution box
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• Protection rating: IP65
• Impact resistance: IK08
• External dimensions (W x H x D): 300 x 400 x 220 mm
• Mounting: Wall mountable
• Cover: Opaque, screw-fastened (plastic screws)
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C
• UV resistant: Yes
• Flame retardant: Self-extinguishing, UL94-V0
• Halogen free: Yes
• Standards: CE, RoHS

Final note

This enclosure provides reliable protection for a wide range of electrical installations, indoors and outdoors. Its durable construction and generous internal volume make it a versatile choice for installers and maintenance teams.
