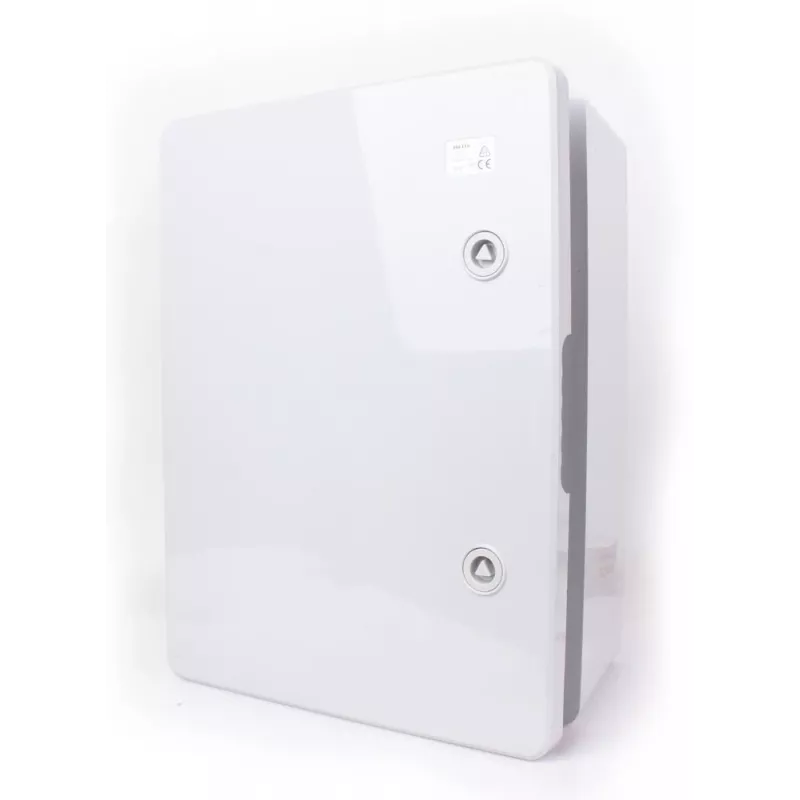

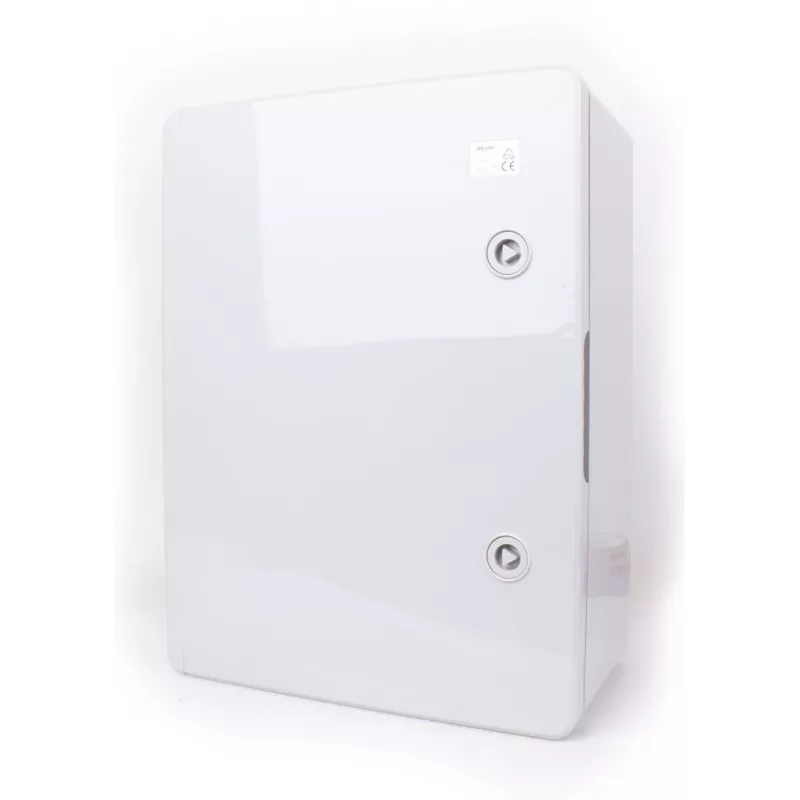

ADELID Caja de distribución eléctrica ABS IP65 300x400x170mm gris claro RAL7035

The ADELID OP300400170 is a robust electrical distribution box designed for both indoor and outdoor applications. Manufactured from high-quality ABS (Acrylonitrile Butadiene Styrene), this enclosure offers excellent durability and protection against environmental factors. With an IP65 rating, it is dust-tight and protected against water jets, making it suitable for harsh conditions. The box features a light grey (RAL 7035) opaque screw-on lid and includes mounting bosses for DIN rail or back plate installation. Its compact dimensions of 300x400x170 mm allow for flexible placement in various settings.

Advantages

This distribution box provides reliable protection for electrical components, ensuring safety and longevity. The UV-resistant ABS material withstands outdoor exposure, while the IK08 impact resistance guards against mechanical shocks. The polyurethane gasket maintains a secure seal, and the UL94-V0 flammability rating ensures fire safety. Easy wall-mounting and internal mounting options simplify installation.

Suitable for

• Electrical distribution and junction boxes in residential, commercial, and industrial environments
• Outdoor installations such as gardens, terraces, and building exteriors
• Control and automation systems requiring IP65 protection
• Telecommunications and network equipment enclosures

Key specifications

• Brand: ADELID
• Model: OP300400170
• Material: ABS (Acrylonitrile Butadiene Styrene)
• IP Rating: IP65
• External Dimensions: 300 x 400 x 170 mm (Width x Height x Depth)
• Colour: Light Grey (RAL 7035)
• Mounting: Wall-mountable
• Lid Type: Opaque, screw-on
• Impact Resistance: IK08
• Flammability Rating: UL94-V0
• UV Resistant: Yes
• Gasket Material: Polyurethane (PU)
• Operating Temperature: -25°C to +70°C
• Certifications: CE, RoHS Compliant

Recommendations

For optimal installation, use appropriate DIN rails or back plates (not included). Ensure the gasket is properly seated before closing the lid to maintain IP65 protection. Suitable for use with cable glands and conduit fittings.
