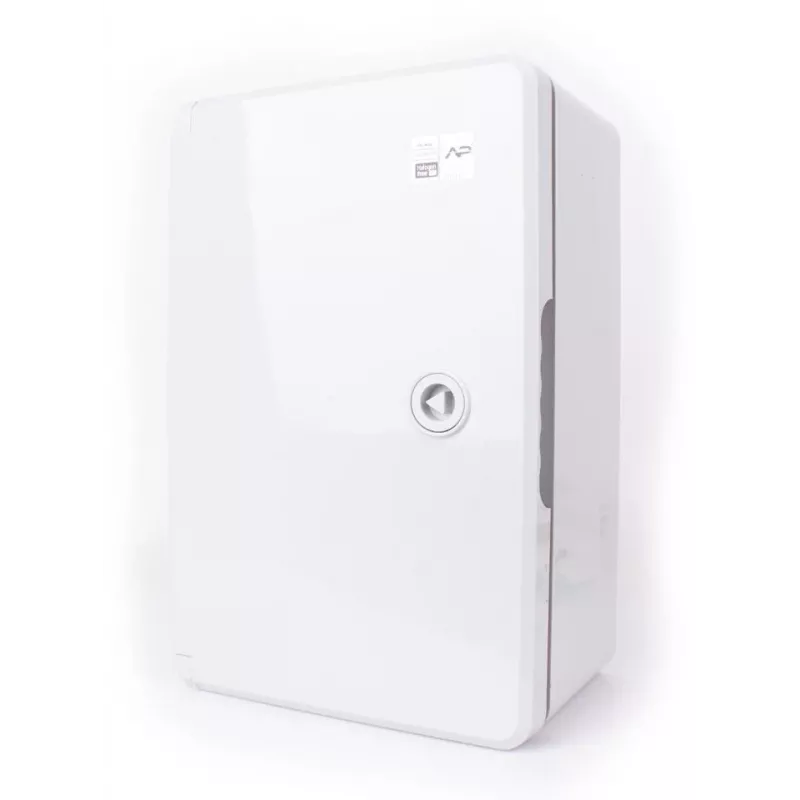

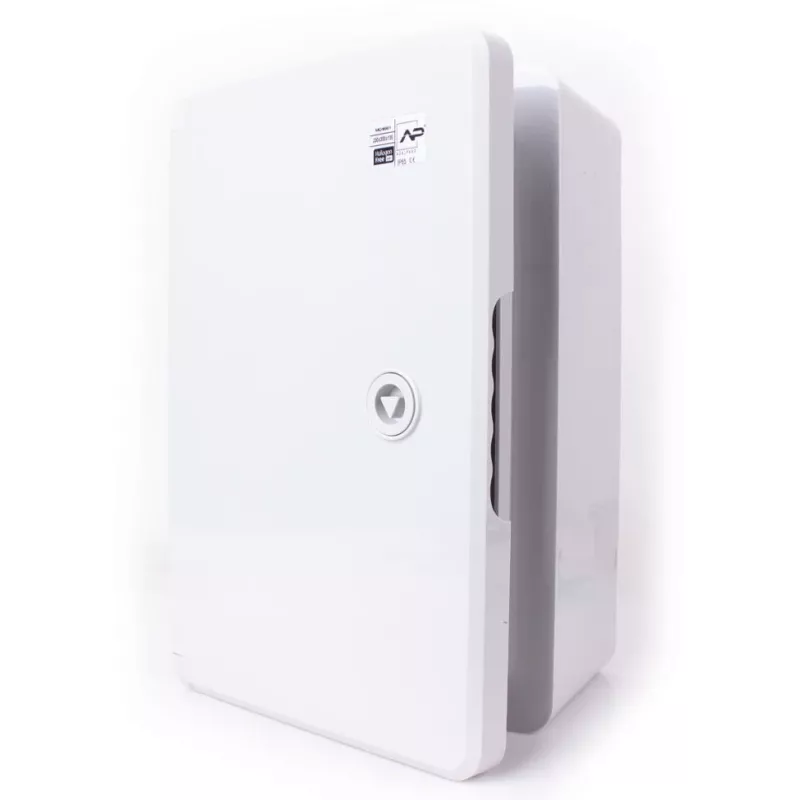

ADELID Caja eléctrica ABS IP65 200x300x130mm

With an IP65 rating and impact resistance of IK08, the ADELID ABS enclosure keeps electrical components safe from dust, water jets, and mechanical shocks in demanding environments.

Overview

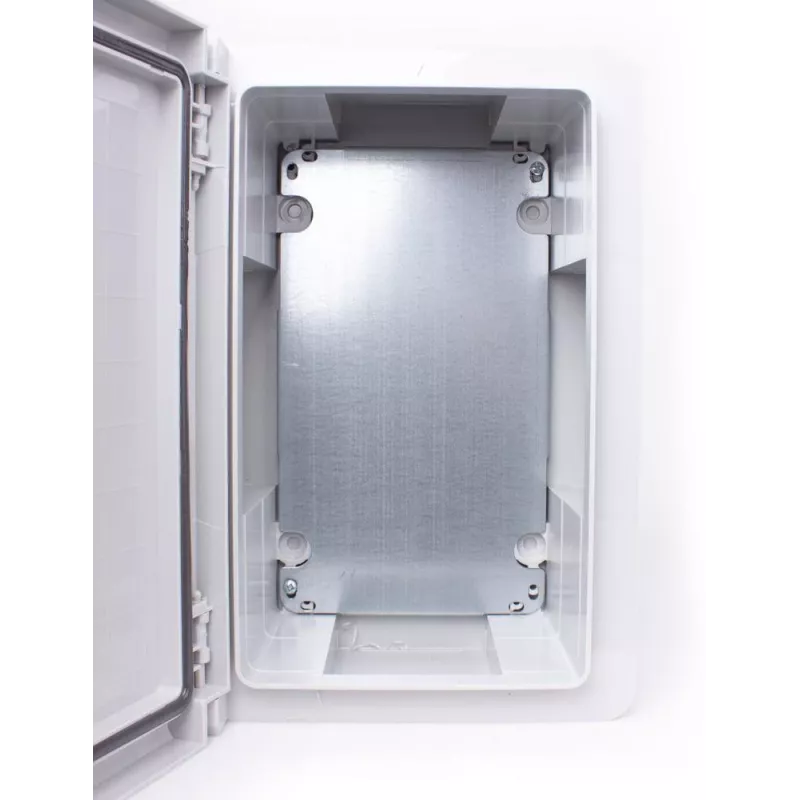

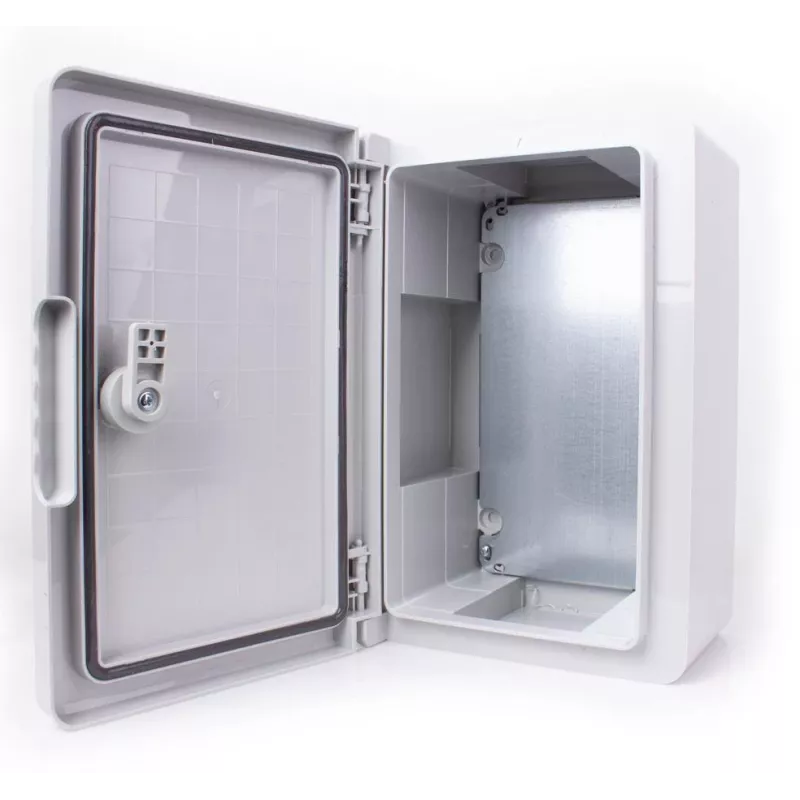

This wall-mountable distribution box measures 200 x 300 x 130 mm and is molded from light grey ABS (RAL 7035). The opaque lid is secured with screws, and smooth side walls allow custom drilling for cable glands or conduits. Inside, molded bosses support DIN rails or mounting plates, making it suitable for industrial control, automation, and outdoor electrical installations.

What stands out

• IP65 protection against dust and low-pressure water jets from any direction
• IK08 impact resistance for reliable performance in high-traffic or harsh areas
• Self-extinguishing ABS (UL94-V0) with UV resistance for long-term outdoor use
• Halogen-free material reduces toxic smoke in case of fire
• Operating temperature range from -25°C to +60°C
• CE and RoHS compliant

Technical details

• External dimensions (W x H x D): 200 x 300 x 130 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• Lid type: Opaque, screw-fixed

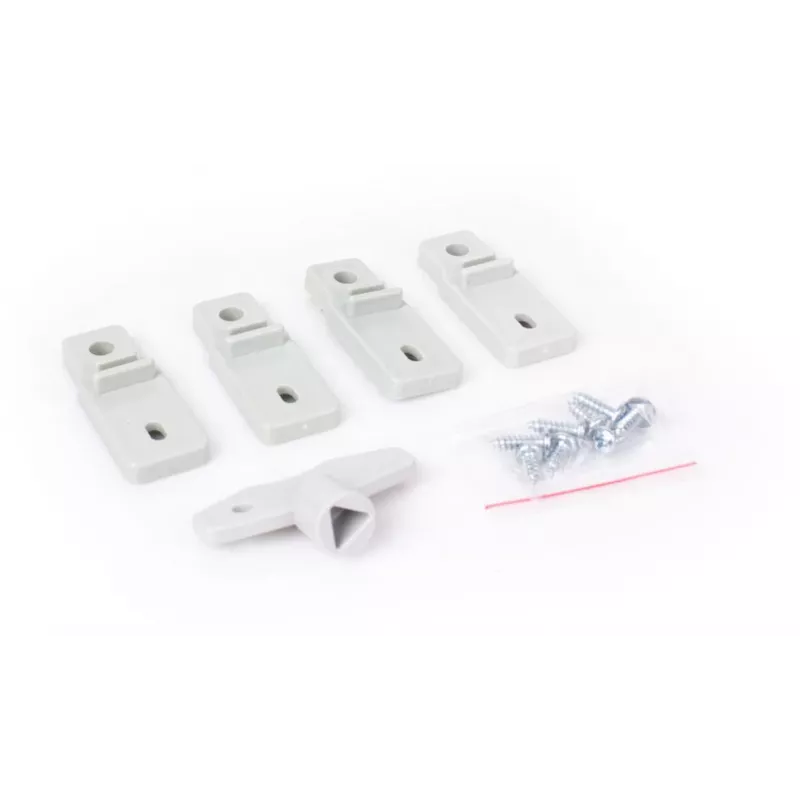

• Mounting: Wall-mountable via external lugs
• Cable entry: Smooth sides for custom drilling
• Internal mounting: Molded bosses for DIN rail or plate
• Flame retardancy: UL94-V0
• UV resistance: Yes
• Halogen-free: Yes
• Standards: CE, RoHS

Our verdict

A robust and versatile enclosure for protecting electrical equipment in both indoor and outdoor settings. Its combination of IP65, IK08, and flame-retardant ABS makes it a dependable choice for professionals.
