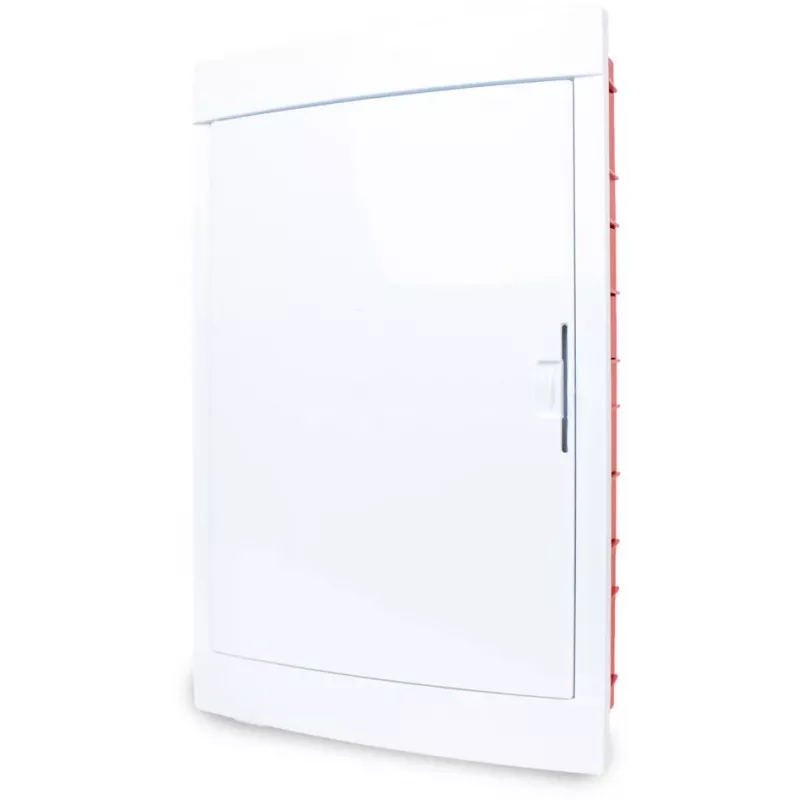

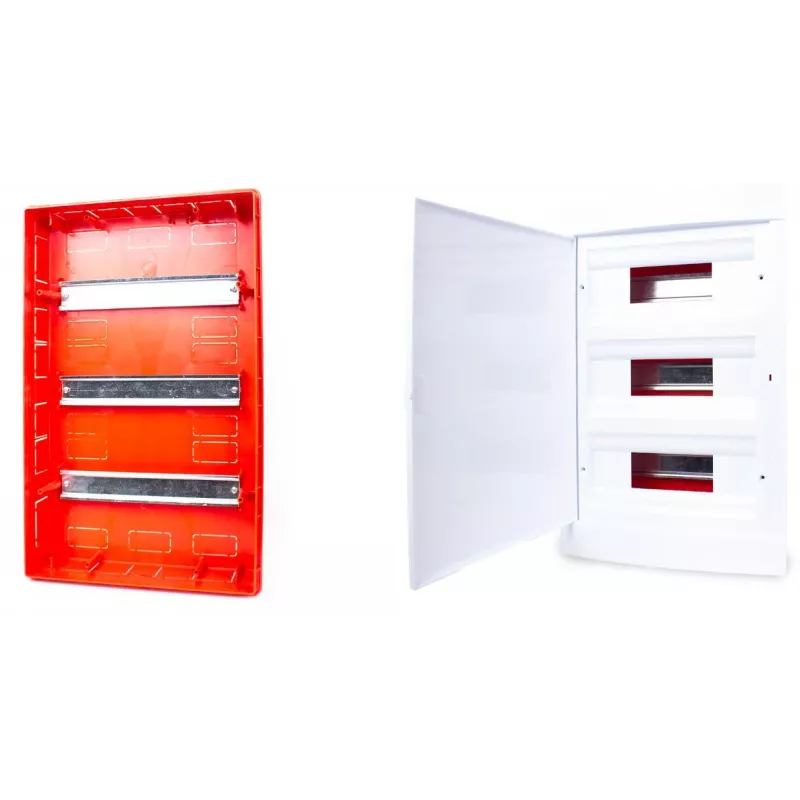

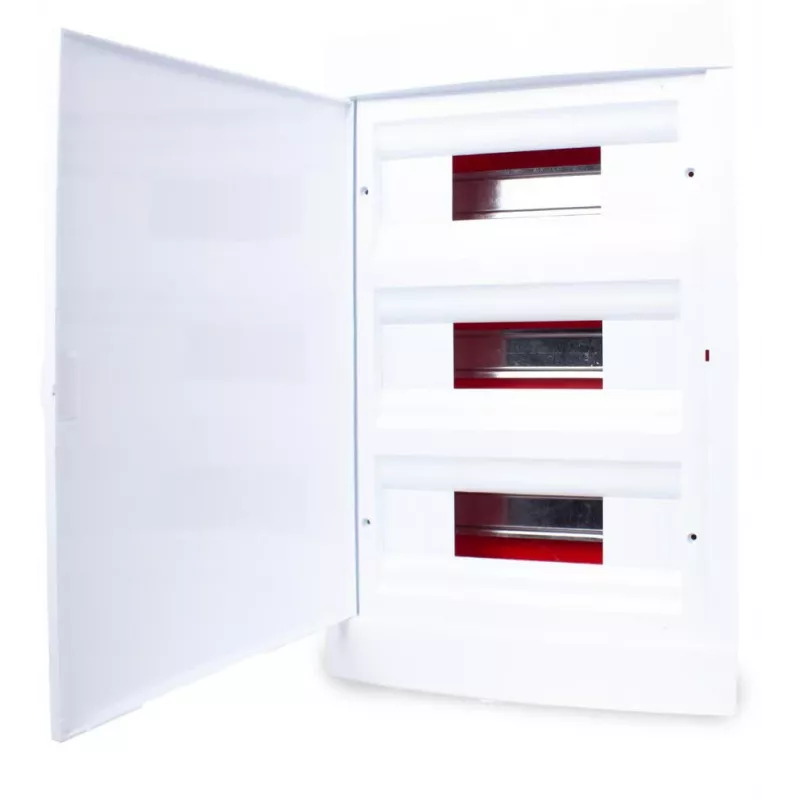

ADELID RM-PT-36P Cuadro de distribución empotrado 36 módulos (3x12) blanco

The ADELID RM-PT-36P is a high-quality flush-mounted distribution board designed for indoor electrical installations. With a capacity of 36 modules arranged in 3 rows of 12, it provides ample space for organizing circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic with a transparent polycarbonate door, offering both strength and visibility. Rated IP40 and IK07, it ensures protection against dust and mechanical impacts. The board comes pre-equipped with DIN rails, N+PE terminal blocks, and complies with PN-EN 61439-3 standards.

Advantages

• Robust ABS plastic enclosure with transparent door for easy inspection
• 36-module capacity in 3 rows for flexible configuration
• IP40 protection and IK07 impact resistance

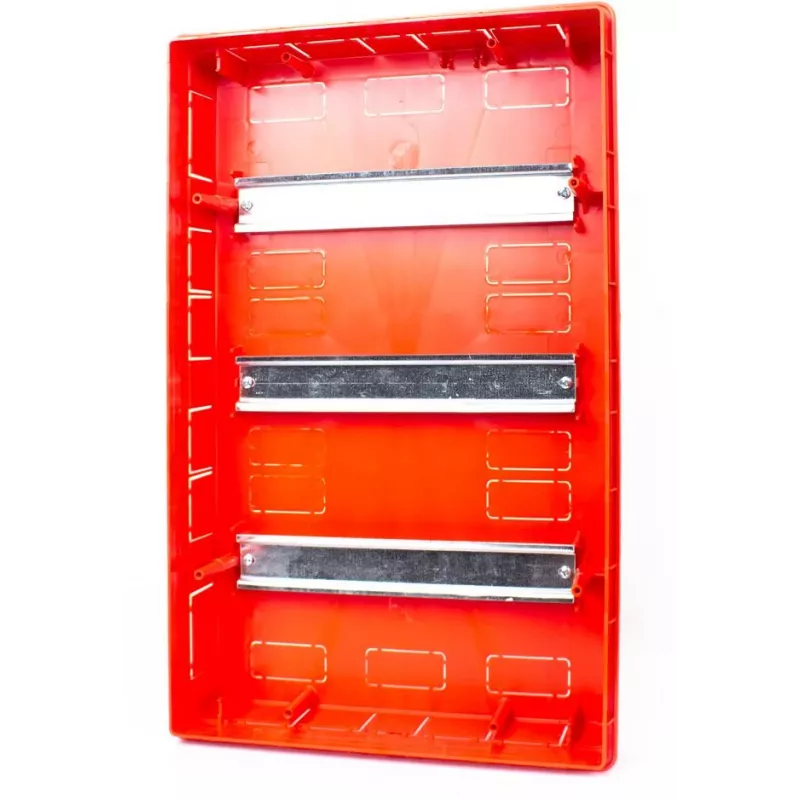

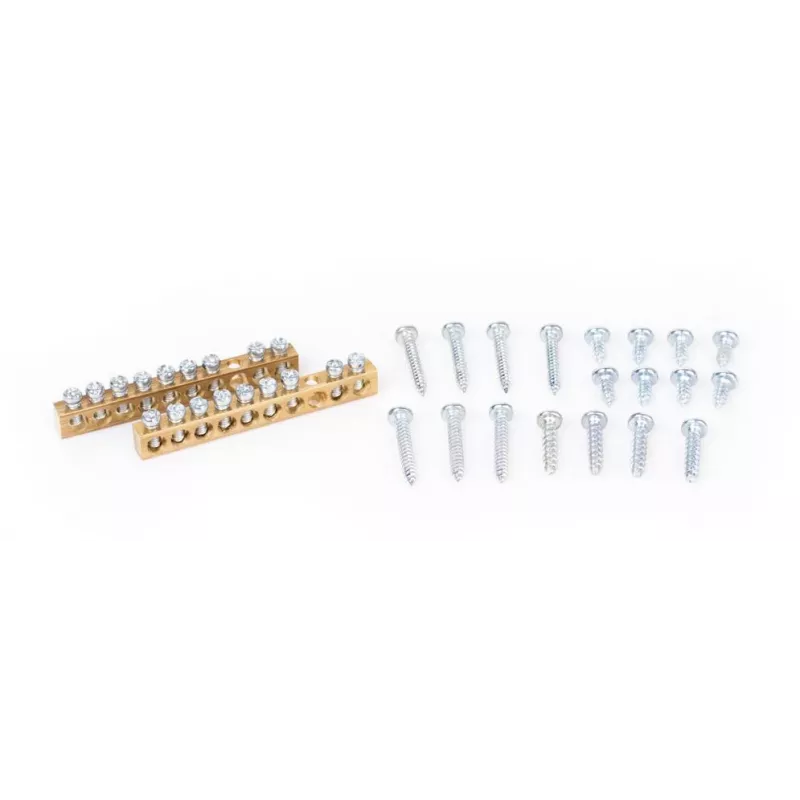

• Includes DIN rails and N+PE terminal blocks for quick installation
• 180° door opening angle for convenient access
• Glow wire tested at 650°C for safety

Suitable for

• Residential and commercial electrical distribution
• Installation of modular protection devices
• Indoor flush-mounted applications

Key specifications

• Mounting Type: Flush-mounted
• Number of Modules: 36
• Number of Rows: 3
• Modules per Row: 12
• Degree of Protection: IP40
• Impact Resistance: IK07
• Enclosure Material: ABS Plastic
• Door Material: Transparent Polycarbonate (PC)
• Colour: White
• Terminal Blocks Included: Yes (N+PE)
• DIN Rail Included: Yes
• Glow Wire Test: 650°C
• Operating Temperature: -25°C to +60°C
• Standards Compliance: PN-EN 61439-3
• Application Environment: Indoor
• Door Opening Angle: 180°
• Installation Depth: 100 mm

Recommendations

For optimal performance, ensure proper mounting and connection by a qualified electrician. This distribution board is ideal for new installations or upgrades where modularity and safety are required.
