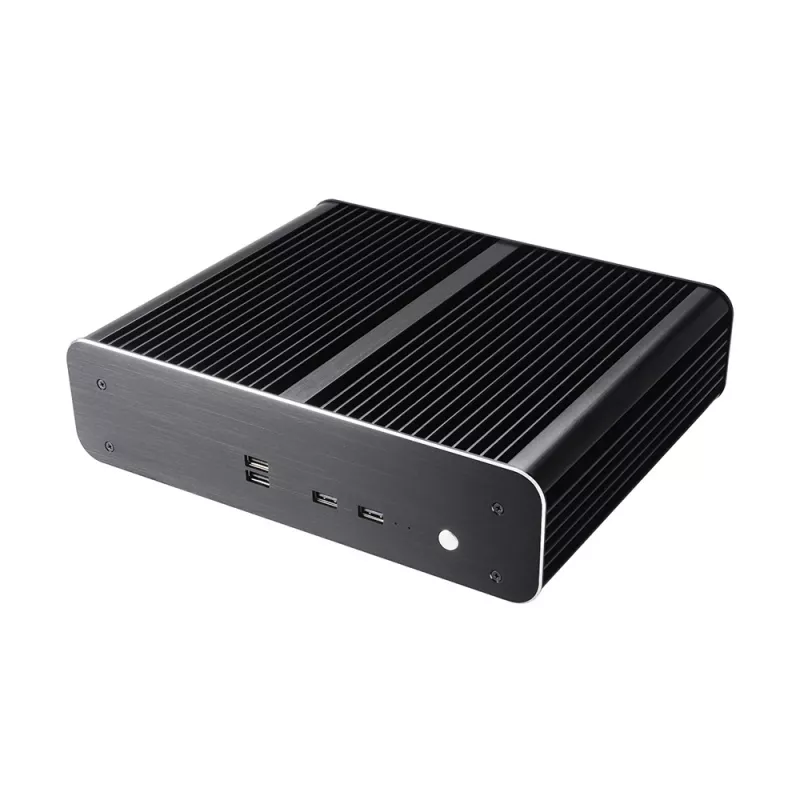

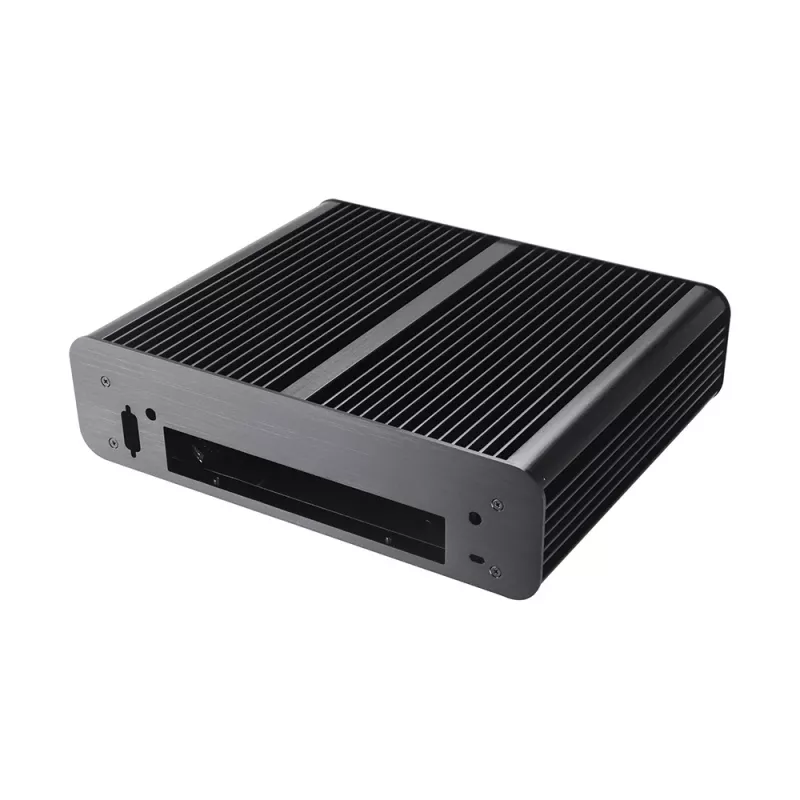

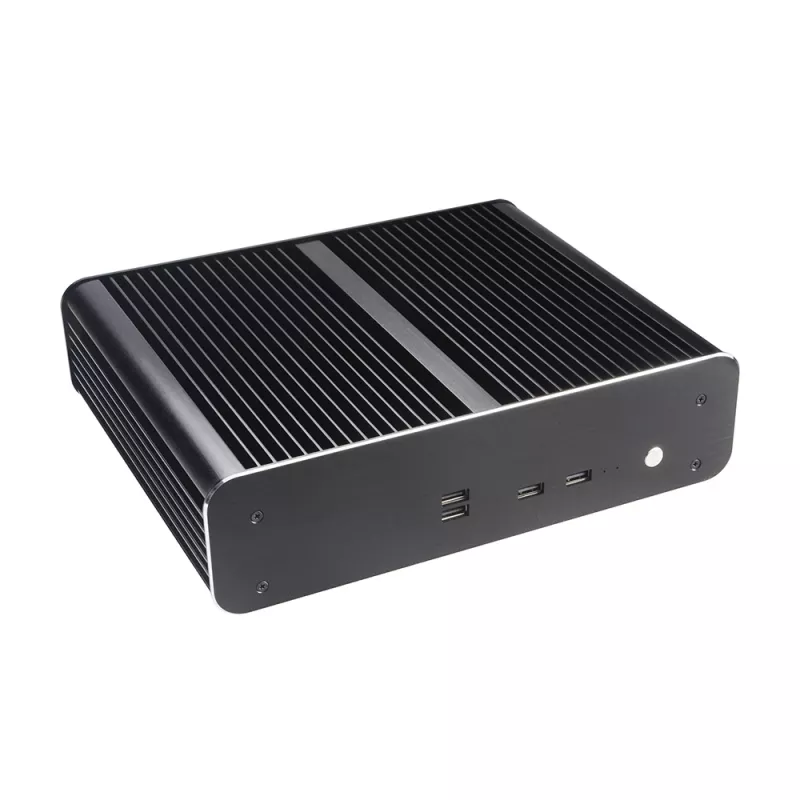

Akasa Euler TX Caja Thin Mini-ITX sin ventilador - aluminio - negra

The Akasa Euler TX is a high-performance fanless aluminum case designed for Thin Mini-ITX motherboards, offering silent operation and wide temperature range support. Ideal for industrial, embedded, and digital signage applications, this case provides robust thermal management without moving parts.

Advantages

Passive cooling ensures zero noise and high reliability. The solid aluminum extrusion chassis acts as a heatsink, efficiently dissipating heat from CPUs up to 35W TDP. Supports VESA mounting for flexible installation behind monitors or under desks.

Suitable for

• Industrial automation and control systems
• Digital signage and kiosks
• Thin client and point-of-sale terminals
• Home theater PCs (HTPC) requiring silent operation

Key specifications

• Motherboard support: Thin Mini-ITX (170x170mm)
• CPU TDP: Up to 35W
• Drive bay: 1x 2.5" SSD/HDD (up to 9.5mm height)
• Front I/O: 2x USB 3.2 Gen 1, 2x USB 2.0
• Rear cutouts: 2x Serial port, 2x Wi-Fi antenna
• Operating temperature: -10°C to 50°C
• Dimensions: 187 x 228 x 61.5 mm (WxDxH)
• Material: Aluminum
• Color: Black
• VESA mount: 75mm and 100mm compatible
• Security: Kensington lock slot
• Power: DC-in jack (external adapter required)

Recommendations

Pair with Akasa AK-ITX-03 internal DC-DC power board for a complete fanless solution. Ensure your motherboard is Thin Mini-ITX form factor for proper fit.
