Akyga EN2080-10-F filtro de red EMC monofásico 10 A, 120–250 V AC, 50/60 Hz, conexiones de 6,3 mm

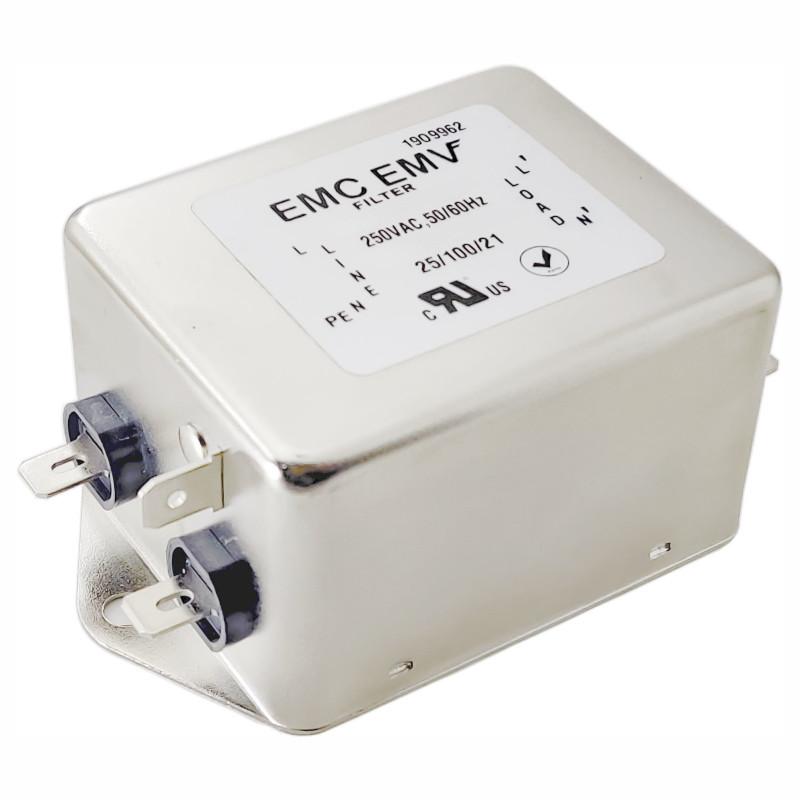

The Akyga EN2080-10-F is a single-phase EMI filter designed to protect electronic devices with medium power consumption from electromagnetic interference. With a maximum operating current of 10 A, it is suitable for automation systems, industrial installations, and power supplies where voltage stability and purity are crucial. The filter features 6.3 mm connectors for fast and secure installation and a metal housing for durability and effective shielding.

Key features

• Maximum working current: 10 A
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Leads: 6.3 mm connectors
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 155 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes

Specifications

• Brand: Akyga
• MPN: EN2080-10-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 10 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 155 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138903
