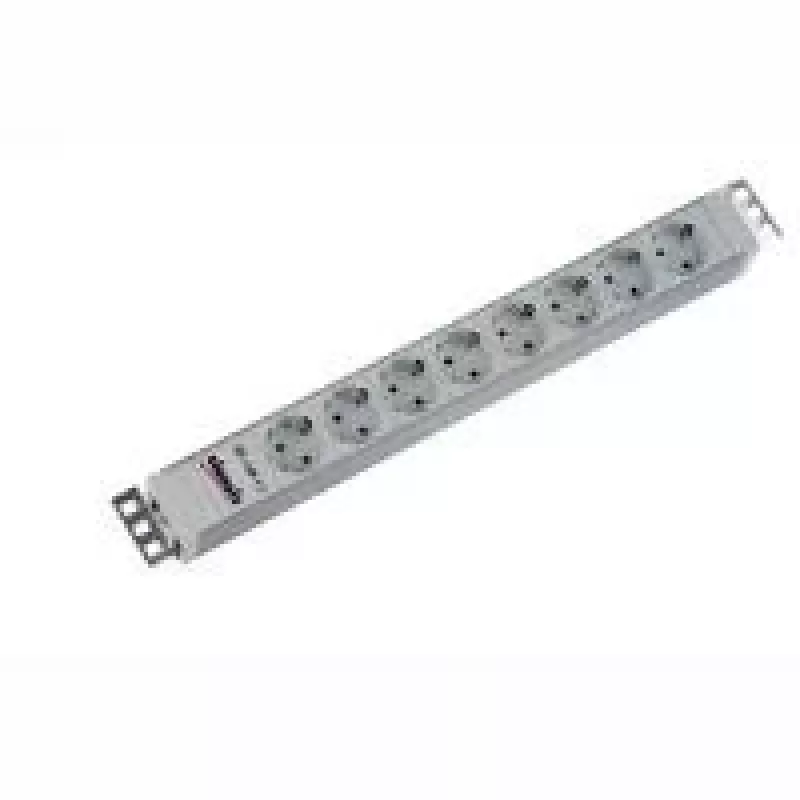

Alargador de corriente 8x Schuko Bachmann 333.601 2 m

The Bachmann Power Extension 8x Schuko 333.601 is a multi-outlet power distribution unit with eight Type F (Schuko) sockets and a 2.0 m H05VV-F 3G 1.50 mm² cable. The casing is made of torsionally rigid PVC profile (depth 44 mm, usable height > 1 U / 52 mm) and comes in light grey (RAL7035). Mounting brackets are included for fixed installation, and the unit may optionally be supplied with an illuminated 2-pole switch. Built-in electronic components provide mains and frequency filtering and overvoltage protection for connected devices.

Advantages

The unit offers eight earthed Schuko outlets arranged at a 35° angle for convenient device connection. Durable PVC construction ensures mechanical stability while the moulded right-angle plug with dual earthing contact system improves safety. Integrated mains and frequency filters and overvoltage protection help protect equipment from electrical disturbances. A 2.0 m cable provides placement flexibility and included mounting brackets simplify installation.

Suitable for

• Office workstations with multiple desktop devices (PC, monitor, printer)
• Home entertainment setups (TV, set-top box, audio system)
• Workshops or labs requiring consolidated power distribution
• Fixed installations in furniture or equipment racks where mounting is needed

Key specifications

• Brand: Bachmann
• Model / MPN: 333.601
• EAN: 4016514019342
• Cable length: 2.0 m (H05VV-F 3G 1.50 mm², grey)
• Outlets: 8 × Type F (Schuko) with earthing contact
• Profile depth: 44 mm; usable height > 1 U (52 mm)
• Sockets orientation: set at 35°
• Colour: light grey (RAL7035)
• Includes: mounting brackets; moulded right-angle plug with dual earthing contact system
• Optional: illuminated 2-pole switch

How to use

Position the power extension where outlets are required and secure it using the supplied mounting brackets if a fixed installation is desired. Connect the moulded right-angle plug to a suitable mains socket. Plug devices into the Type F Schuko outlets, observing the 35° socket orientation for ease of access. If the model includes an illuminated 2-pole switch, use it to switch power to all outlets; otherwise operate connected devices via their own switches. Ensure total load does not exceed the rated capacity of the power system and check local electrical regulations before permanent installation.

Recommendations

For safe and reliable operation, distribute high-power loads across different outlets, avoid daisy-chaining multiple extension units, and ensure the combined current draw stays within the circuit rating. Install the unit in a dry, well-ventilated location and follow local safety standards for fixed installations.
